GoldBox 3 Vehicle Networking Development Platform

GOLDBOX-3

Roll over image to zoom in

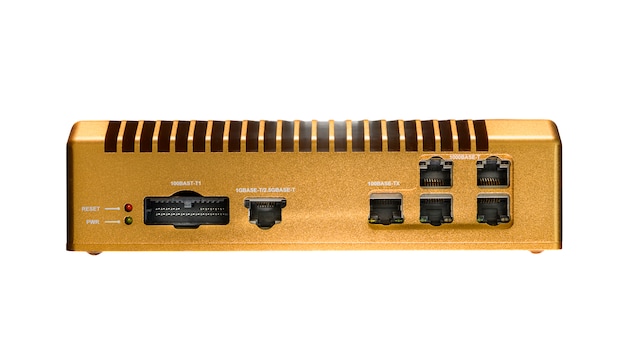

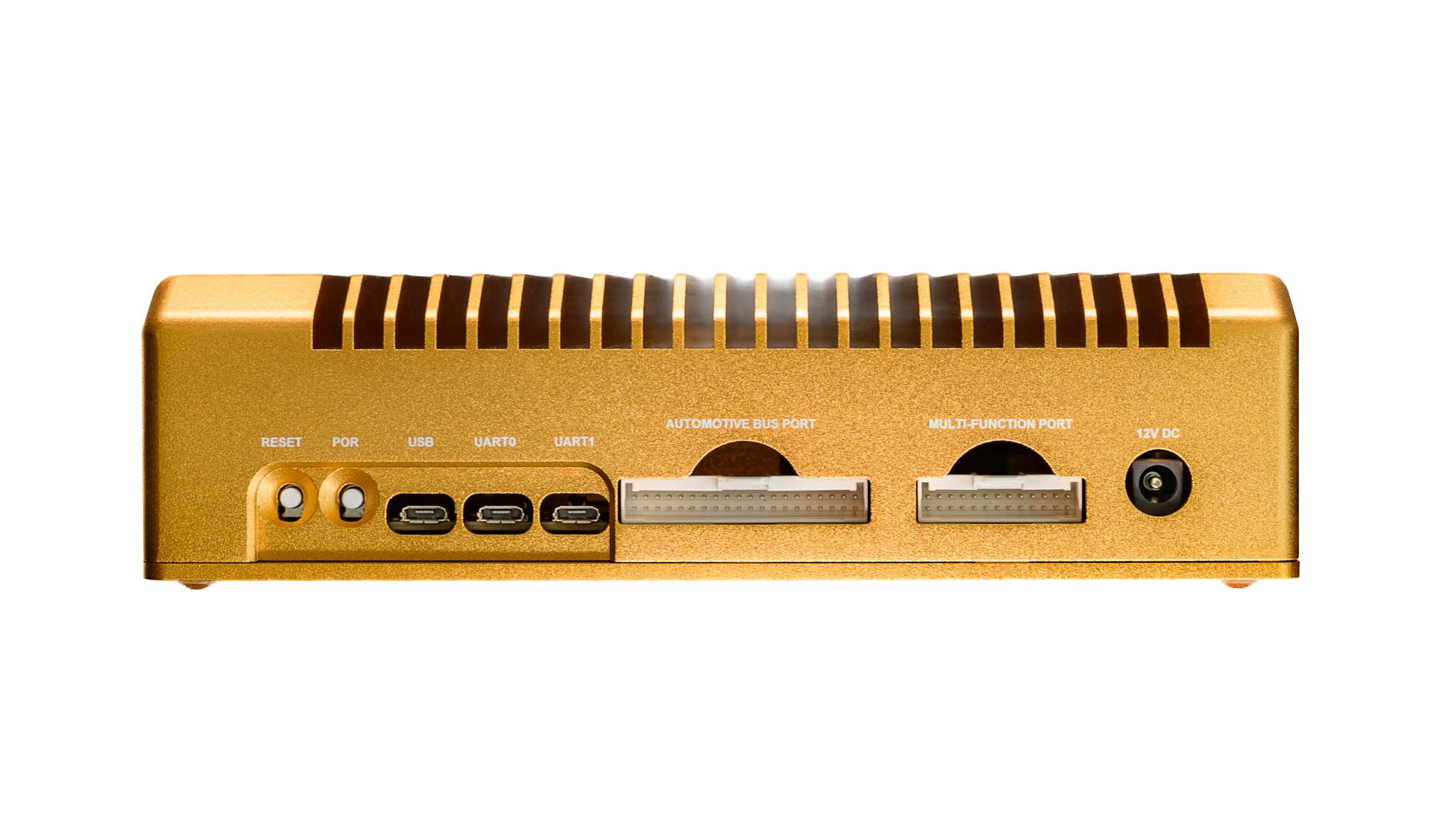

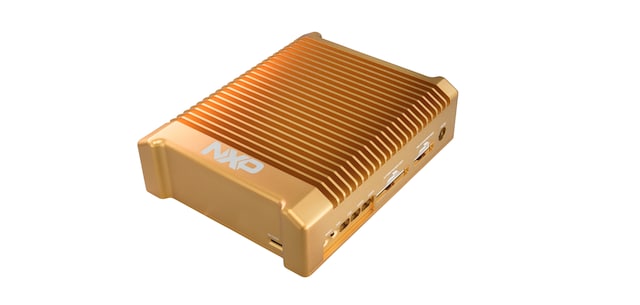

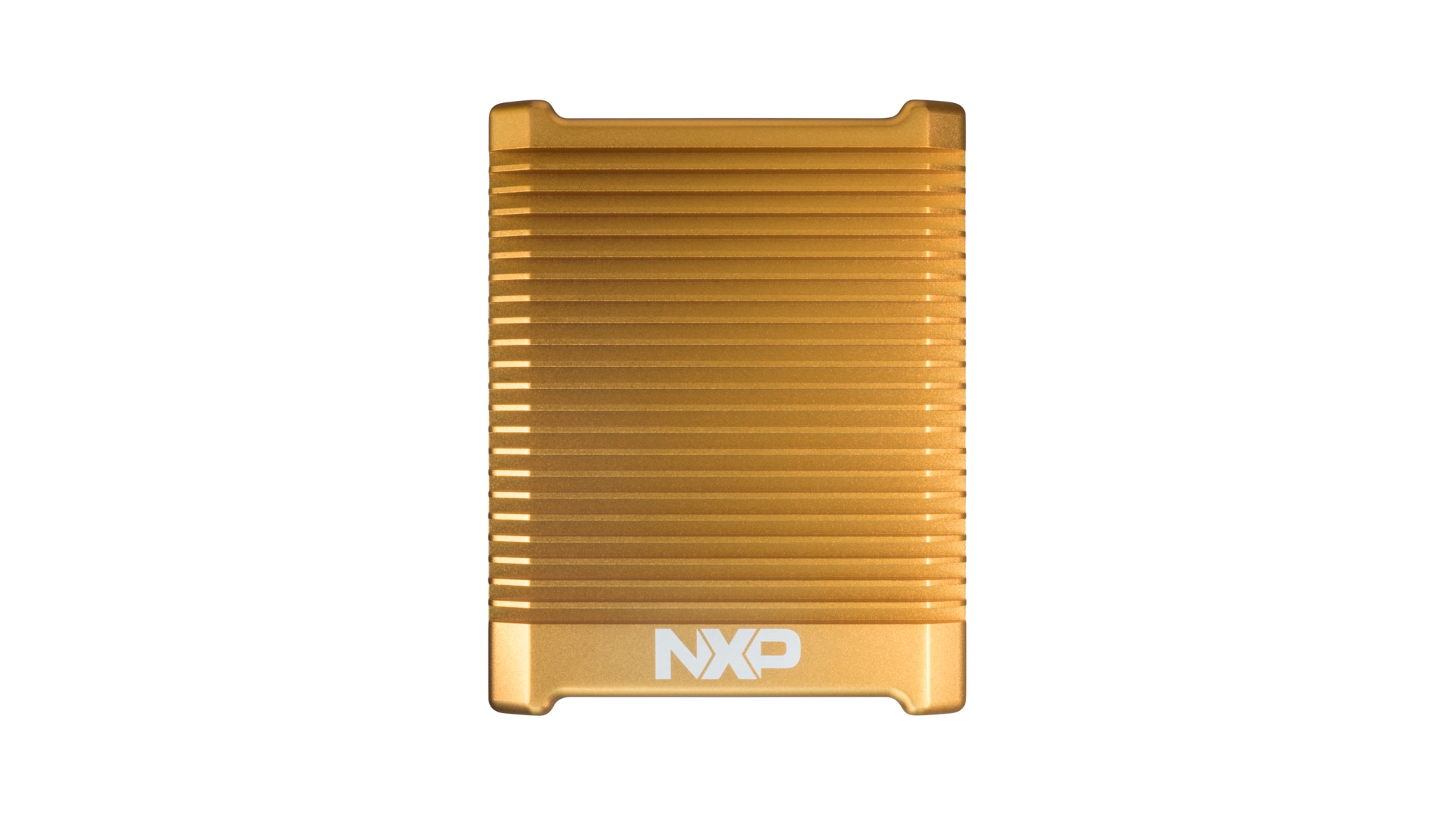

The NXP GoldBox 3 is a compact, highly optimized and integrated reference design engineered for vehicle computer, service-oriented gateway (SoG), domain control applications, high-performance processing, safety and security applications.

The NXP GoldBox 3 highlights the S32G3 network processor by offering high-performance computing capacity, real-time network performance, multi-Gigabit packet acceleration and security and rich input/output (I/O) targeting central gateway, domain controller, firmware over-the-air (FOTA), secure key management, smart antenna and high-performance central compute nodes.

Based on the S32G-VNP-RDB3, the GoldBox 3 is an excellent form-factor for customer or project demonstrations and evaluations, as well as in-vehicle testing and rapid prototyping.

Block Diagram

S32G3 Vehicle Networking Reference Design

S32G3 Vehicle Networking Reference Design 3
Get diagram PDF

Supported Devices

Interfaces

Automotive Ethernet Switches and Network Controllers

  • SJA1110: Multi-Gig Safe and Secure TSN Ethernet Switch with Integrated 100BASE-T1 PHYs

Automotive LIN Solutions

  • TJA1021: ISO17987 LIN 2.1/SAE J2602 Transceiver

3.3 V / 5 V IO CAN Transceivers

  • TJA1043: High-Speed CAN Transceiver with Standby and Sleep Mode

CAN Signal Improvement

  • TJA1463: CAN Signal Improvement Capability Transceiver with Sleep Mode

Secure CAN Transceivers

  • TJA1153: Secure HS-CAN Transceiver with Sleep Mode

Power Management

System Basis Chips

  • VR5510: Multi-Channel (9) PMIC for S32G Processor – 8 High Power, 1 Low Power, Fit for ASIL D Safety Level

PMICs

  • PF53: 12 A / 8 A / 15 A Core Supply Regulator with AVP and Watchdog

Processors and Microcontrollers

S32G Vehicle Network Processors

  • S32G3: S32G3 Processors for Vehicle Networking

Features

Hardware Features

  • Supports service-oriented gateway and domain controller applications
  • Multiple network interfaces, featuring 18 CAN/CAN FD and 12 Ethernet ports
  • Supports low-power mode and multiple wake-up sources
  • Supports two M.2 modules (M-key slot, E-key slot)

Power Supply

  • 12V AC-DC adapter

Interfaces

  • LIN, CAN/CAN FD, 100BASE-T1, 1000BASE-T / 2.5GBASE-T, 100BASE-TX, 1000BASE-T, FlexRay, USB, PCIe, JTAG, UART, AURORA, M.2 slots

Safety

  • ISO 26262 support by using safety components and architecture

Buy Options

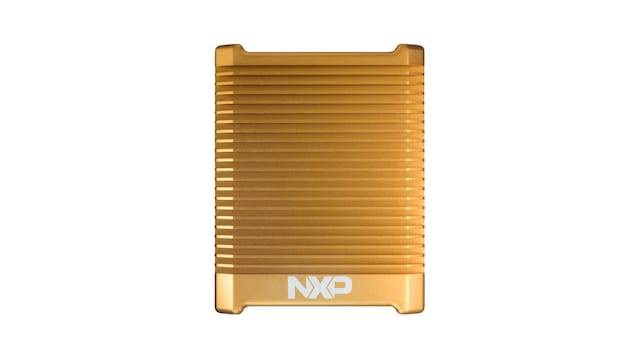

S32G-VNP-GLDBOX3-Image

Click to expand

  • S32G-VNP-GLDBOX3

  • GoldBox 3 Vehicle Networking Development Platform.

  • Kit contains

    • Rugged enclosure with integrated thermal management
    • S32G Reference Design Board 3
    • Universal AC Adapter
    • AC/DC 12V 6.67A power supply
    • 32GB SD Card
    • DuPont Line
    • (2) USB A-to-Micro B cables (UART0/1)
    • CAT6A Ethernet cable
    • Ethernet loopback cable
    • (3) Heatsinks
    • FAN solution for S32G
    • Screws (M.2 slots)
    • 1.27mm mini jumpers and cables
  • $3340.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 2
    • Shipping: Normally ships 1-2 business days
