PF1550 Programming Socket Board

KITPF1550FRDMPGM Active

Roll over image to zoom in

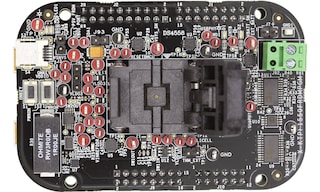

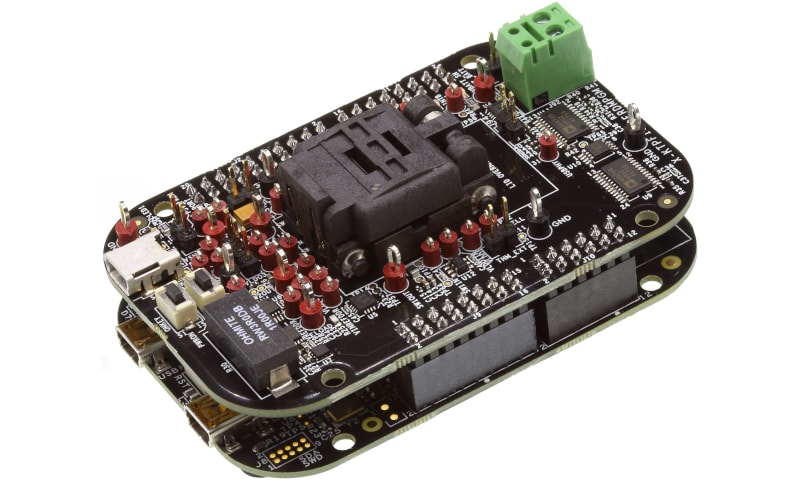

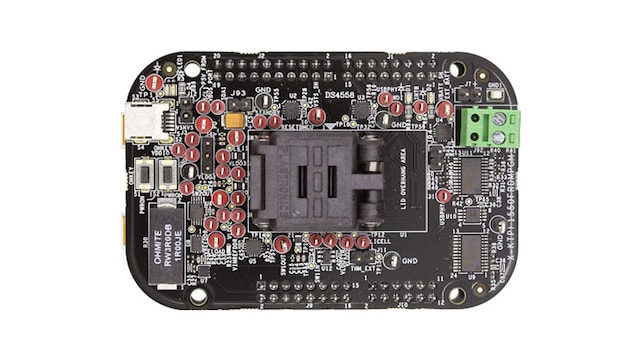

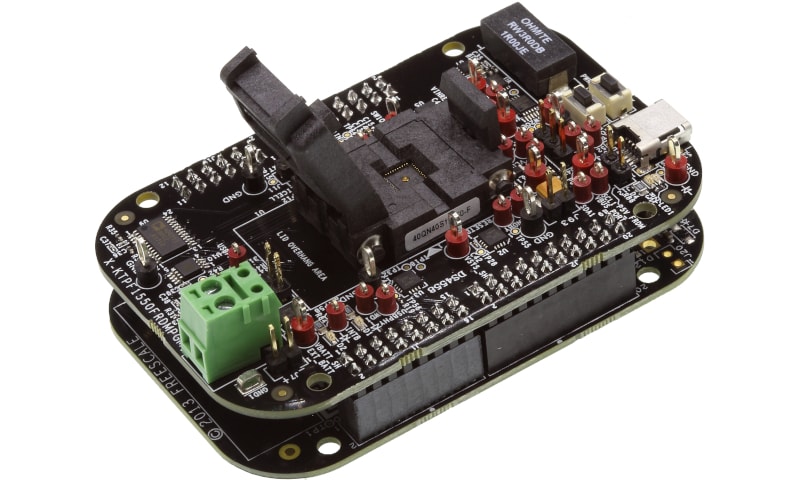

The KITPF1550FRDMPGM programming socket board supports the one time programmable (OTP) programming of the PF1550 power management integrated circuit (PMIC).

The kit comes with a FRDM-KL25Z already mounted and loaded with compatible microcode. The primary function of the FRDM-KL25Z is to control communication between the socket board and a PC.

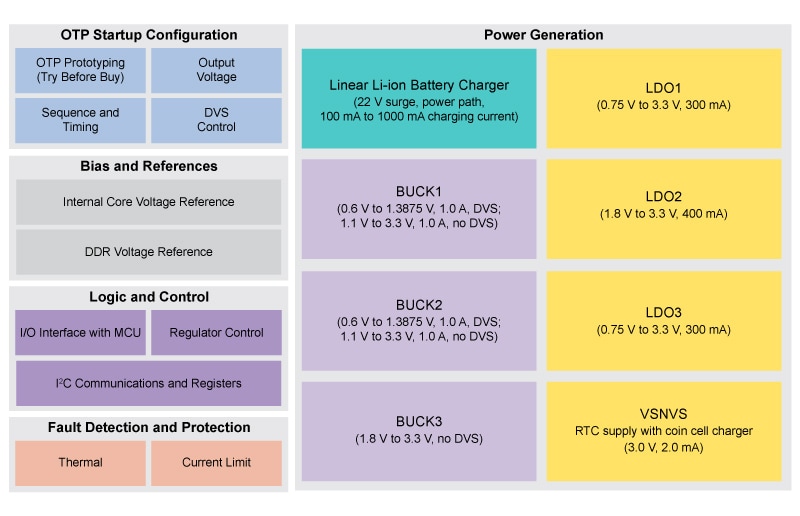

Block Diagram

PF1550: PMIC with 1A Li+ Linear Battery Charger

PF1550: PMIC with 1A Li+ Linear Battery Charger
Get diagram PDF

Supported Devices

Power Management

PMICs

  • PF1550: PMIC with 1A Li+ Linear Battery Charger for Low Power Processor Systems

Features

OTP Programming

  • A 40-pin QFN clamshell socket installed
  • OTP programming LED indicator

Connectivity

  • Integrated FRDM-KL25Z Freedom Board for control
  • Standard Mini-USB connector for communication with PC

Required equipment

  • KITPF1550GUI installed on a Windows PC 4.3

System requirements

  • USB enabled computer running Windows XP, Vista, 7, 8, or 10 (32-bit or 64-bit)

Buy Options

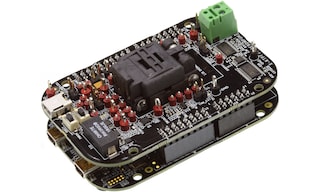

KITPF1550FRDMPGM-Image

Click to expand

  • KITPF1550FRDMPGM
    Active

  • Freedom, PF1550, Programming board.

    • The kit contents include:
      • Assembled and tested KITPF1550FRDMPGM and preprogrammed FRDM-KL25Z microcontroller board in an anti-static bag
      • Cable, USB type A male/type mini B male 3 ft
      • Quick start guide
  • $253.57 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 9
    • Shipping: Normally ships 1-2 business days
ADD TO CART
