Performance Level Digital Signal Controllers, USB FS OTG, CAN FD
Design Files
Receive the full breakdown. See the product footprint and more in the eCad file.
DSCs with Integrated FPU and Trigonometric Math Engine with OPAMP and Quadrature Decoder

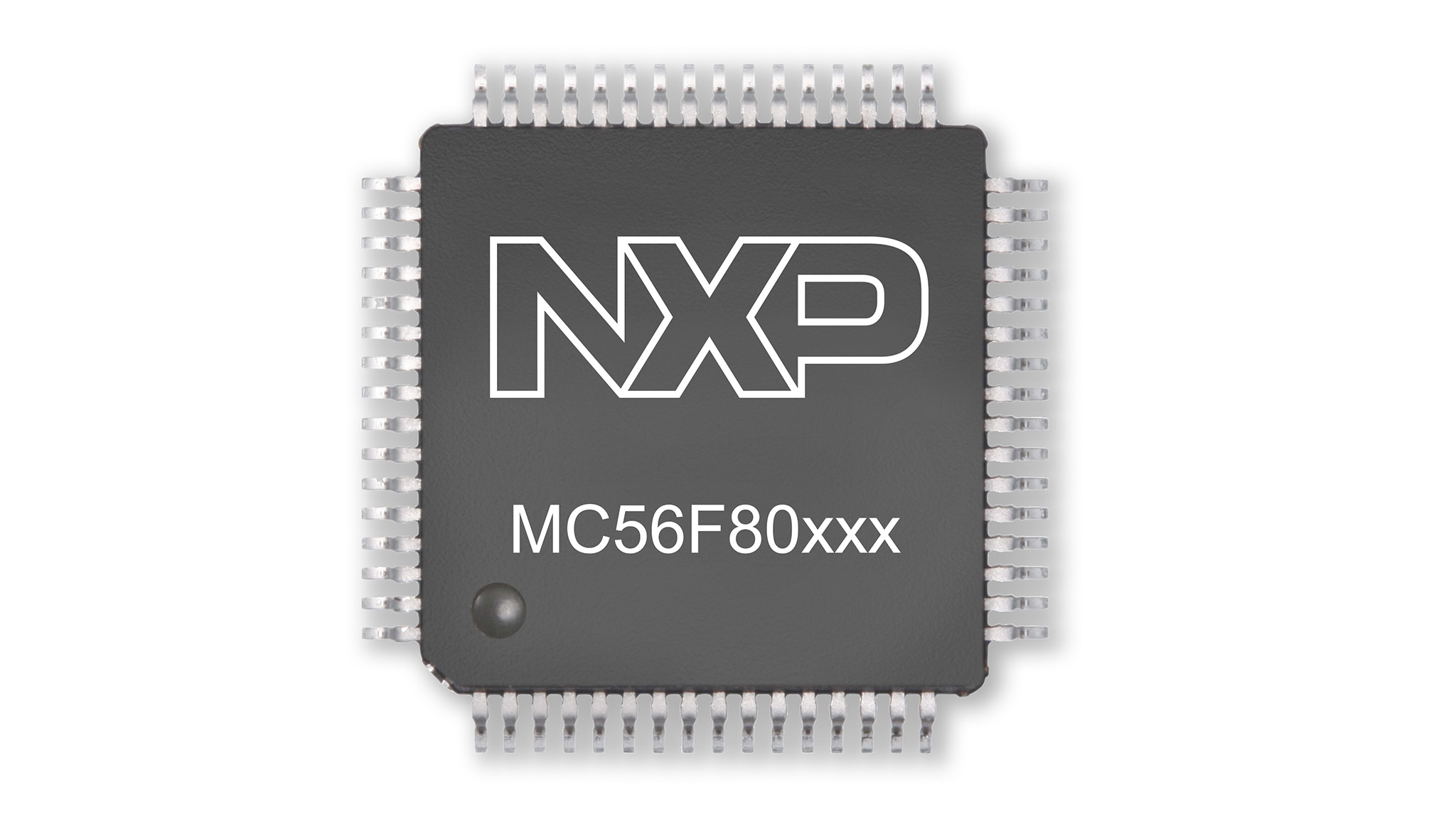

The MC56F80xxx is a digital signal controller (DSC) family based on the high-performance 100 MHz 56800EF DSP core. This DSC family has an integrated FPU and CORDIC / trigonometric math engine that provides high-performance, cost-effective solutions for digital power conversion and motor control applications.
This MC56F80xxx combines the processing power of a DSP and the functionality of an MCU with a flexible set of peripherals to support different applications. It includes advanced high-speed and high-accuracy peripherals such as 8 channel eFlexPWM with 312 ps resolution, dual high-speed 12-bit ADCs, two operational amplifiers, a quadrature decoder and three analog comparators.
Product Details
Features
Processor Complex
- 100 MHz 56800EF DSP core
- Enhanced single-precision floating point math unit (eFPU)
- Coordinate rotation digital compute (CORDIC) engine
- JTAG/EOnCE debug controller
Memory
- 64kB Flash
- 8kB SRAM
System Control
- Intermodule crossbar (support flexible connection among peripherals or GPIOs)
- Event generator (support and/or/nor/xor logic operation and multiple trigger modes)
- Enhanced DMA (support minor and major loop, more flexible data transition and less CPU intervention)
- Memory resource protection
- LVI, POR and brownout reset
- CRC
- Internal and external watchdog
Timers
- Eight channels 312ps high-resolution PWM
- 1x quad timer to support four-channel capture
- 1x quadrature decoder
- 3x 32-bit PIT
Analog
- 2x 12-bit ADC each w/ x2/4 PGA, each up to 1.6MSps sample rate
- 2x operational amplifier, 8MHz GBP, support up to x16 PGA mode
- 3x analog comparator each w/ 8-bit DAC
Communications
- 1x LPI2C, support full PMBus
- 1x SPI
- 2x UART
Packages
- LQFP64
- LQFP48
- LQFP32
- QFN32
Temperatures
- -40 to 125°C
Enablement
- MC56F80000-EVK - can connect with low-voltage FRDM-LV driver board
- HVP-56F80748 EVK - can connect with high-voltage HVP-MC3PH driver board
- Motor control and digital power reference designs
- CodeWarrior IDE
- Software development kit (SDK)
- GUI Config Tools (Pin, Clock, Peripherals)
- FreeMaster debug tool
- PEMicro Multilink and Cyclone support
Certifications
- IEC60730 Class B Certification
- AEC-Q100
