Self-Supplied High-Speed CAN Transceiver with Sleep Mode
Design Files
Receive the full breakdown. See the product footprint and more in the eCad file.
High-Speed CAN Transceiver with 5 V LDO and Sleep Mode
The UJA1166ATK contains an ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5 compliant HS-CAN transceiver supporting CAN FD up to 5 Mbit/s and an integrated 5 V low-dropout linear voltage regulator. This 5 V regulator provides the internal CAN supply and can also be used to supply additional discrete CAN transceivers or other on-board loads.
The UJA1166ATK can be operated in very-low-current Sleep mode with local and bus wake-up capability. It can be controlled by a microcontroller supplied from an independent 3.3 V or 5 V supply.
HVSON14 Package
Product Details

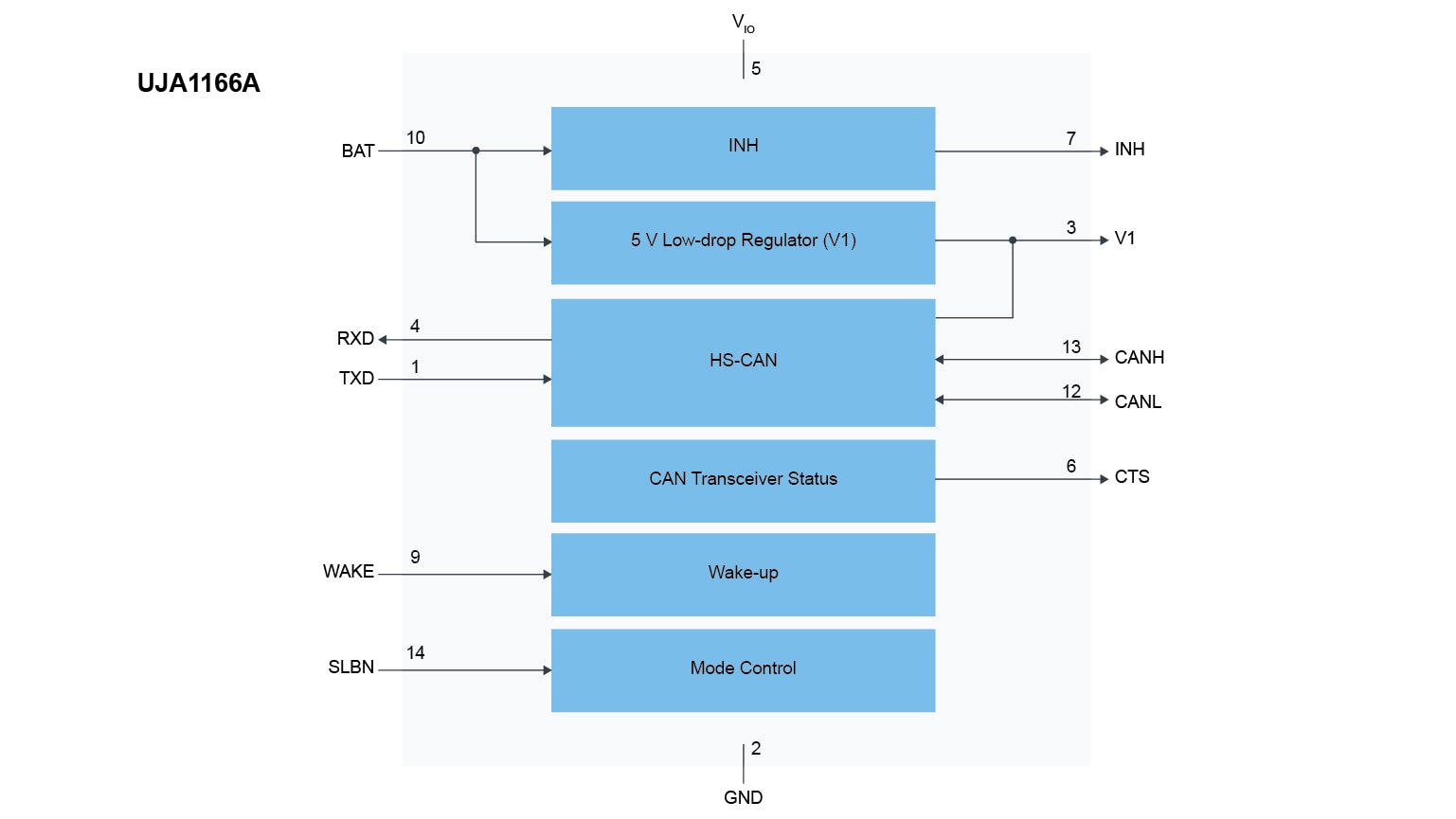

Block Diagram
Features
General
- Designed for automotive applications self-supplied ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5 compliant high-speed CAN transceiver with Sleep mode
- Hardware and software compatible with the UJA116x product family and with improved EMC performance
- ±8 kV ESD protection, according to the Human Body Model (HBM) on the CAN bus pins
- ±6 kV ESD protection, according to IEC TS 62228 on the CAN bus pins and on pin BAT
- CAN bus pins short-circuit proof to ±58 V
- Battery and CAN bus pins are protected against automotive transients according to with ISO 7637-3
CAN transceiver
- High-speed CAN transceiver supporting CAN FD active communication up to 5 Mbit/s in the CAN FD data field
- Autonomous bus biasing according to ISO 11898-6
- Remote wake-up capability via standard CAN wake-up pattern
Integrated voltage regulator (V1)
- Integrated 5 V / 100 mA voltage regulator to supply the CAN transceiver
- Can be used to supply additional discrete transceivers or other on-board loads
System control features
- Sleep mode featuring very low supply current (mode control via SLPN pin)
- Transmit data (TXD) dominant time-out function
- Local wake-up capability via the WAKE pin
- Entire node can be powered down via the inhibit output (INH)
Part numbers include: UJA1166ATK.
Comparison Table
| Features | |||||||||||
| Orderable Type | Standby Mode | Sleep Mode | VIO | LDO (5 V) | SPI | Watchdog | INH | External 5 V Supply | Partial Networking | CAN FD Active | CAN FD Passive |
| UJA1161ATK/0 | X | Internally used as self-supplied CAN | 5 Mbps | ||||||||
| UJA1162ATK/0 | X | X | X | Internally used as self-supplied CAN | INH | 5 Mbps | |||||
| UJA1163ATK/0 | X | 100 mA | 5 Mbps | ||||||||
| UJA1164ATK/0 | X | 100 mA | X | X | 5 Mbps | ||||||
| UJA1166ATK/0 | X | X | X | 100 mA | INH | 5 Mbps | |||||
| UJA1167ATK/0 | X | X | 100 mA | X | X | INH | 5 Mbps | ||||
| UJA1167ATK/X/0 | X | X | 70 mA | X | X | 5 V/ 30 mA | 5 Mbps | ||||
| UJA1168ATK/0 | X | X | 100 mA | X | X | INH | X | 5 Mbps | |||
| UJA1168ATK/X/0 | X | X | 70 mA | X | X | 5 V/ 30 mA | X | 5 Mbps | |||
| UJA1168ATK/F/0 | X | X | 100 mA | X | X | INH | X | 5 Mbps | X | ||
| UJA1168ATK/XF/0 | X | X | 70 mA | X | X | 5 V/ 30 mA | X | 5 Mbps | X | ||
