UJA1166A Evaluation Board

UJA1166A-EVB Active

Roll over image to zoom in

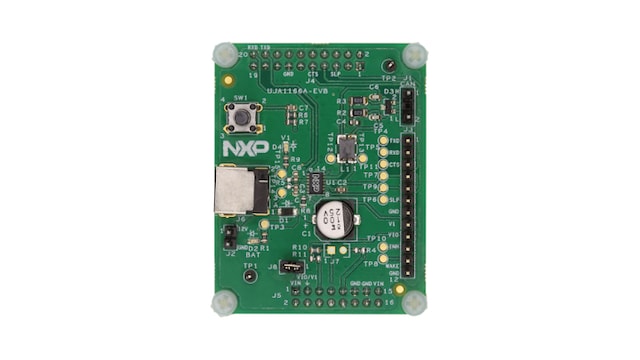

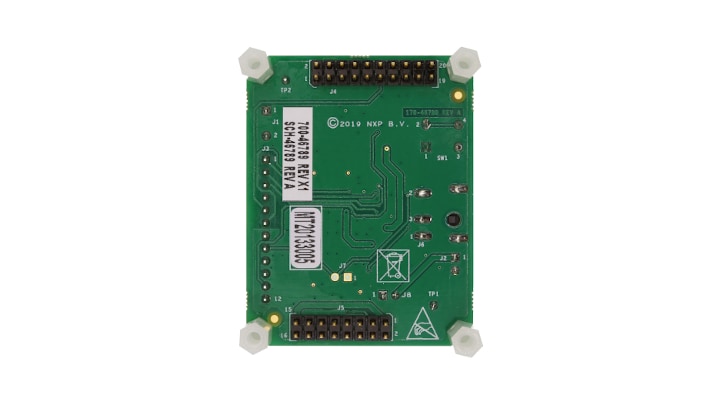

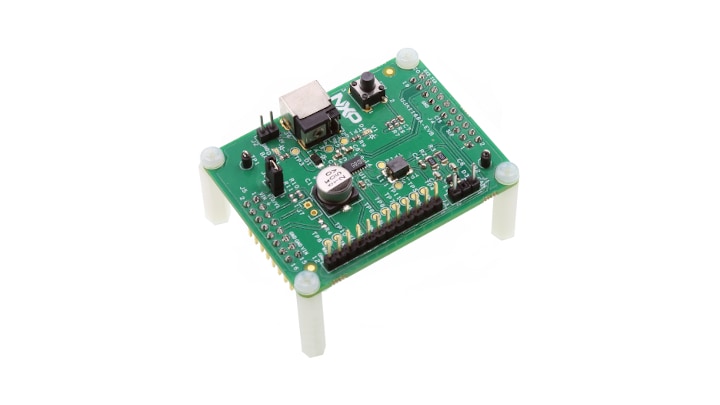

The UJA1166A-EVB evaluation board is a supportive tool to develop system solutions using the UJA1166A High-Speed CAN Transceiver. The board is pin compatible with the Arduino Uno pinout order and can be used in combination with any microcontroller board providing USB-to-SPI interfacing.

Product Details

Supported Devices

Interfaces

CAN with Flexible Data Rate

  • UJA1166ATK: High-Speed CAN Transceiver with 5 V LDO and Sleep Mode

Features

Features

  • Designed to facilitate the testing and evaluation of UJA116xA product features in a variety of microcontroller IO interface environment
  • Supporting Arduino connection with microcontroller board.
  • The board also provides several header rows (2.54 mm pitch) for connecting MCU interface and application signals
  • Board dimensions are 45.1 mm × 58.4 mm. Only components needed to support basic UJA116xA functionality are included
  • An external power supply of 12 V typ. must be connected to power-up the board

Buy Options

UJA1166A-EVB-Image

Click to expand

  • UJA1166A-EVB
    Active

  • UJA1166A Evaluation Board.

  • Kit contains:

    • UJA1166A Evaluation Board
    • UJA116xA-EVB Manual
  • $81.40 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 20
    • Shipping: Normally ships 1-2 business days
ADD TO CART
