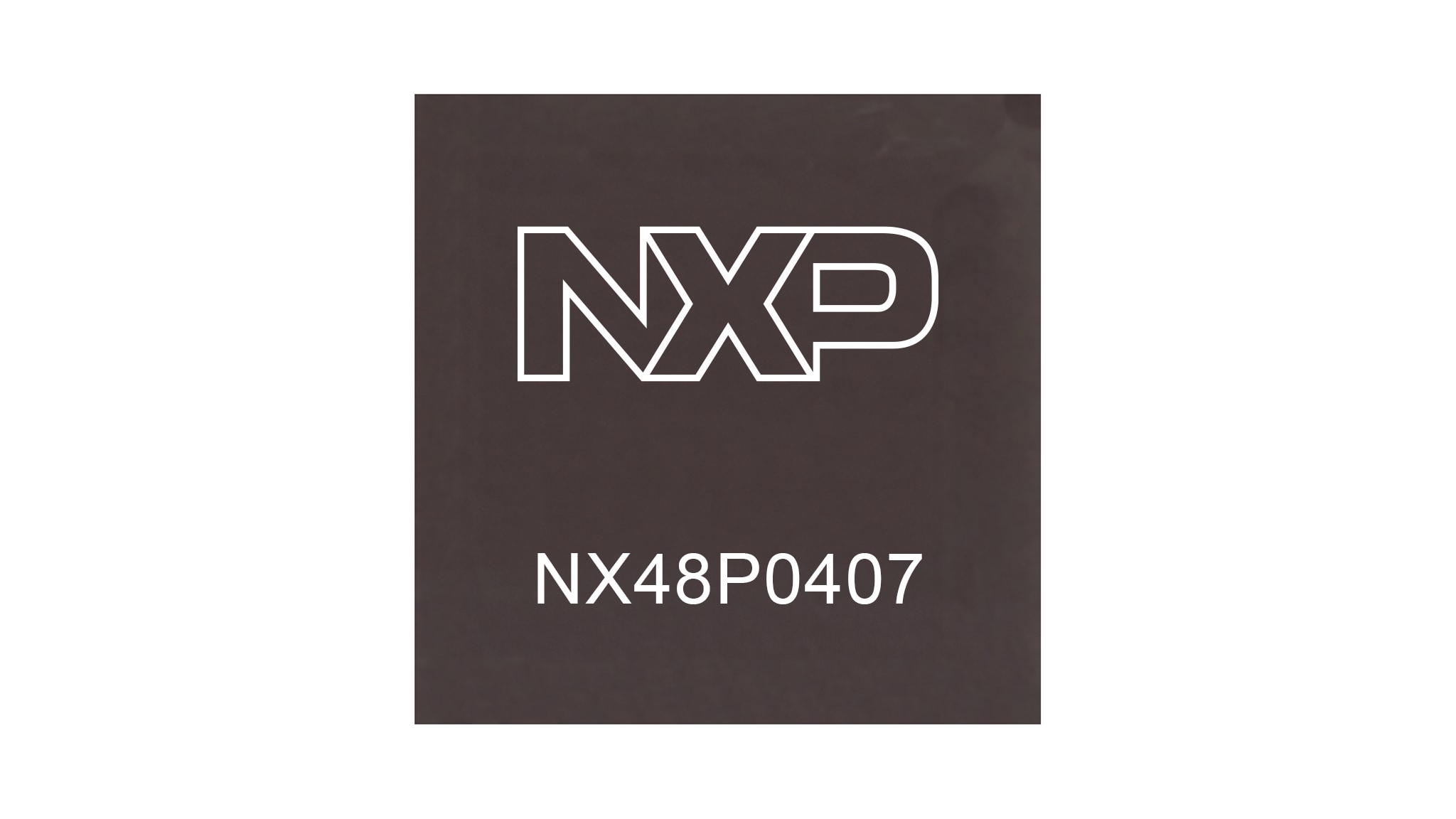

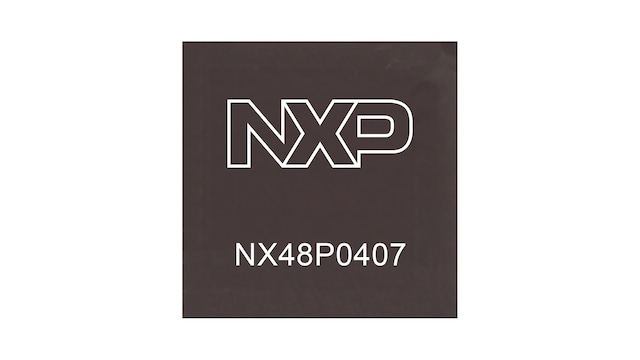

48 V Type-C CC and SBU Protection IC for USB PD3.1 EPR
The NX48P0407 is a CC and SBU protection IC which can protect the short-to-VBUS damage on CC and SBU pins of Type-C for USB-PD EPR application. USB Type-C allows VBUS voltage to increase up to 48 V through PD 3.1 protocol. CC1/2 and SBU1/2 pins can be shorted to VBUS of 48 V due to mechanical twisting and sliding of the connector since Type-C connector contact pins are 25% closer to each other than a micro USB connector. The NX48P0407 integrates IEC 61000-4-2 ESD protection on CON_CC1 and CON_CC2, ± 15 KV air discharge and ± 8K V contact discharge, and are designed to be protected from surges up to +80 V.
Product Details
Features
- CC/SBU Absolute Maximum Rating Voltage up to 60 V
- CC Dead-battery mode Rd integrated by external pin connection
- CC OVP Ron= ~250 mohm, with 3-dB bandwidth >20 MHz
- SBU OVP Ron= ~3.6 ohm, with 3-dB bandwidth >200 MHz
- Fast OVP Response < 60 ns
- Clamping Voltage of CCx_HOST/SBUx_HOST
- Standalone GPIO to Enable SBU path
- IEC-61000-4-2 Contact ±8 k V ESD Protection
- IEC-61000-4-5 Surge Protection up to +80 V
- Ultra-low standby quiescent current ~40 uA
- Package WQFN3x3-16
