Dual High-Speed USB 2.0 Double-Pole Double-Throw Analog Switch

Block Diagram

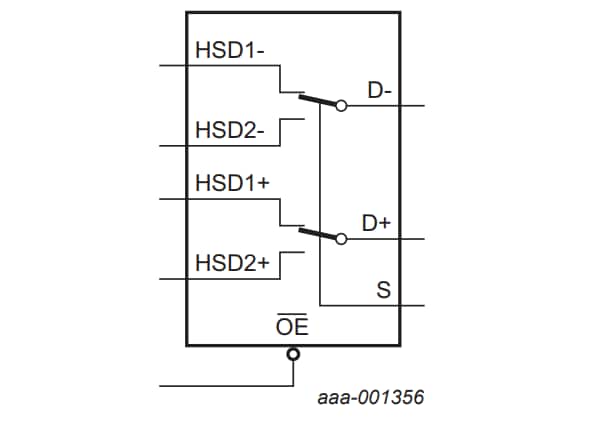

NX3DV42 Block Diagram

NX3DV42 Block Diagram

Features

General Features

  • Supply voltage range from 3.0 V to 4.3 V
  • 4 Ω typical ON resistance
  • 7.3 pF typical ON capacitance
  • 950 MHz typical bandwidth or data frequency
  • Low crosstalk of -30 dB at 240 MHz
  • Break-before-make switching
  • 8 programmable inputs (switches to battery or ground) and 14 switch-to-ground inputs
  • Typical standby current - VBATP = 30 uA and VDD = 10 uA
  • Integrated battery and temperature sensing

ESD protection

  • HBM JESD22-A114F Class 3A exceeds 4000 V
  • CDM AEC-Q100-011 revision B exceeds 1000 V
  • HBM exceeds 12000 V for power to GND protection
  • Latch-up performance exceeds 100 mA per JESD 78 Class II Level A
  • Specified from -40 °C to +125 °C

Product Longevity Program

  • This product is included in the NXP Product Longevity Program ensuring a stable supply of products for your embedded designs. The NX3DV42GU is included in the 15-year program
