The LS2 family of processors delivers unprecedented performance and integration for the smarter, more capable networks of tomorrow. The eight core LS2088A and the four core LS2048A multicore processors offer Arm^® Cortex^®-A72 cores with the advanced, high-performance datapath and network peripheral interfaces required for networking, telecom/datacom, wireless infrastructure, military and aerospace applications.

The next-generation datapath architecture combined with a powerful software toolkit provides a higher level of hardware abstraction and makes software development quick and simple.

This combination balances ease-of-use with high-performance processing in a Linux^® environment that is familiar to any software programmer. Customers can fully exploit the underlying hardware and easily adapt to network changes for real-time 'soft' control over the network.

Layerscape processors are part of NXP's EdgeVerse™ edge computing platform.

Data Sheet

Reference Manual

Product Details

Block Diagram

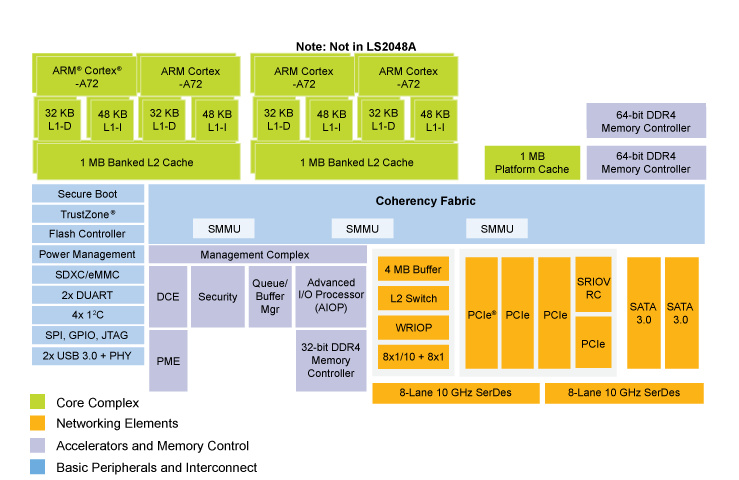

LS2088A Processor Block Diagram

Get diagram PDF

Features

Core Complex

Eight 64-bit Cortex-A72 CPUs
- Up to 2 GHz,
- Clusters of two cores sharing 1 MB L2 cache
1 MB L3 platform cache
Two 64-bit DDR4 SDRAM memory controllers
- ECC and interleaving support,
- Up to 2.1 GT/s

Networking Elements

Wire Rate I/O processor, featuring:
- 8x 10 GbE
- 8x 1 GbE
- L2 switching on the Ethernet interface
- XAUI/XFI/KR and SGMII
- MACSec on up to four 1/10 GbE
2x SATA 3.0
4x PCIe Gen 3 controllers
SR-IOV support, Root Complex

Accelerators and Memory Control

Accelerated I/O processing (AIOP) at up to 20 Gb/s packet processing
20 Gb/s SEC crypto acceleration
10 Gb/s Pattern Matching Engine
20 Gb/s Data Compression Engine
One secondary 32-bit DDR4 memory controller for the accelerated packet processing layer, up to 1.6 GT/s
4 PCIe controllers (Gen3) supporting 1x8, 4x4, 4x2, 4x1 lane configurations

Basic Peripherals and Interconnect

Support for hardware virtualization and partitioning enforcement
Implements trust architecture combined with TrustZone^{^®}
- Service processor (SP) provides pre-boot initialization and secure-boot capabilities
2x USB 3.0 with PHY
Enhanced secure digital host controller
Serial peripheral interface (SPI) controller
Quad Serial peripheral interface (QSPI) controller
Four I2C controllers
Two DUARTs
Integrated flash controller (IFC 2.0) supporting NAND and NOR flash

	LS2088A	LS2048A	L2084A	LS2044A
A-72 Cores	8	4	8	4
L2 Cache (MB)	4	2	4	2
Packet Processing Accelerator	20Gb/s	20Gb/s	No	No
L2 Switch	Yes	Yes	Yes	Yes

LS2088A Development Tools

Software
- Software Development Kits
  - Layerscape Software Development Kit
  - Linux^® SDK for QorIQ^® Processors
- Development Software
  - CodeWarrior for Networked Applications
Hardware

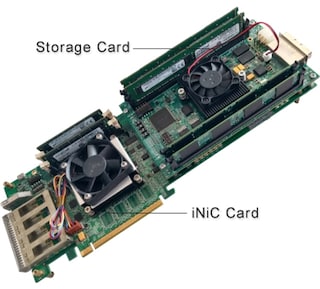

- Reference Designs

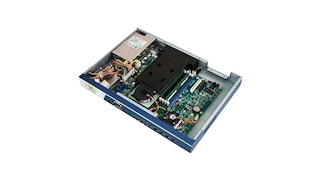

  - LS2088A Reference Design Board
Support
- QorIQ^® Linux SDK Support

Buy/Parametrics

Part Show description	Silicon Rev	Family	Status	Development Tools	Qualification tier	Budgetary Price excluding tax	Package Termination Count	Package Type	Package Pitch (mm)	Core Type	Core: Number of cores (SPEC)	Operating Frequency [Max] (MHz)	Typical Power	Cache (KB)	L1 Cache (KB)	L2 Cache (Max) (KB)	SRAM (kB)	External Memory Supported	DRAM frequency (max)(MHz)	SPI	QSPI	UART	I²C	USB Controllers	Ethernet Ports	Ethernet Type	PCIe	PCIe version	SATA	Encryption	Watchdog timer	Timers	Debug & Trace	Junction Temperature (Min to Max) (℃)
LS2048ASE711B Data Sheet	Rev 1.1	QorIQ LS2088A	Active	LS2088A-RDB	Industrial	100 @ US$279.50	1292	BGA1292	1.0	Arm Cortex-A72	4	2100	27.2	32, 48	32, 48	2048	128	DDR4 SDRAM	2133	1	1	4	4	2	16	10G, 1G	4	PCIe 3.0	2 x SATA 3.0	Y	Y	4	JTAG	0 to 105
LS2048ASE7QQB Data Sheet	Rev 1.1	QorIQ LS2088A	Active	LS2088A-RDB	Industrial	100 @ US$242.95	1292	BGA1292	1.0	Arm Cortex-A72	4	1600	18.2	32, 48	32, 48	2048	128	DDR4 SDRAM	1600	1	1	4	4	2	16	10G, 1G	4	PCIe 3.0	2 x SATA 3.0	Y	Y	4	JTAG	0 to 105
LS2048ASE7TTB Data Sheet	Rev 1.1	QorIQ LS2088A	Active	LS2088A-RDB	Industrial	100 @ US$215.00	1292	BGA1292	1.0	Arm Cortex-A72	4	1800	20.4	32, 48	32, 48	2048	128	DDR4 SDRAM	1867	1	1	4	4	2	16	10G, 1G	4	PCIe 3.0	2 x SATA 3.0	Y	Y	4	JTAG	0 to 105
LS2048ASE7V1B Data Sheet	Rev 1.1	QorIQ LS2088A	Active	LS2088A-RDB	Industrial	100 @ US$267.25	1292	BGA1292	1.0	Arm Cortex-A72	4	2000	26.8	32, 48	32, 48	2048	128	DDR4 SDRAM	2133	1	1	4	4	2	16	10G, 1G	4	PCIe 3.0	2 x SATA 3.0	Y	Y	4	JTAG	0 to 105
LS2048ASN711B Data Sheet	Rev 1.1	QorIQ LS2088A	Active	LS2088A-RDB	Industrial	100 @ US$274.02	1292	BGA1292	1.0	Arm Cortex-A72	4	2100	27.2	32, 48	32, 48	2048	128	DDR4 SDRAM	2133	1	1	4	4	2	16	10G, 1G	4	PCIe 3.0	2 x SATA 3.0	N	Y	4	JTAG	0 to 105
LS2048ASN7QQB Data Sheet	Rev 1.1	QorIQ LS2088A	Active	LS2088A-RDB	Industrial	100 @ US$238.19	1292	BGA1292	1.0	Arm Cortex-A72	4	1600	18.2	32, 48	32, 48	2048	128	DDR4 SDRAM	1600	1	1	4	4	2	16	10G, 1G	4	PCIe 3.0	2 x SATA 3.0	N	Y	4	JTAG	0 to 105
LS2048ASN7TTB Data Sheet	Rev 1.1	QorIQ LS2088A	Active	LS2088A-RDB	Industrial	100 @ US$210.79	1292	BGA1292	1.0	Arm Cortex-A72	4	1800	20.4	32, 48	32, 48	2048	128	DDR4 SDRAM	1867	1	1	4	4	2	16	10G, 1G	4	PCIe 3.0	2 x SATA 3.0	N	Y	4	JTAG	0 to 105
LS2048ASN7V1B Data Sheet	Rev 1.1	QorIQ LS2088A	Active	LS2088A-RDB	Industrial	100 @ US$262.01	1292	BGA1292	1.0	Arm Cortex-A72	4	2000	25.4	32, 48	32, 48	2048	128	DDR4 SDRAM	2133	1	1	4	4	2	16	10G, 1G	4	PCIe 3.0	2 x SATA 3.0	N	Y	4	JTAG	0 to 105
LS2048AXE711B Data Sheet	Rev 1.1	QorIQ LS2088A	Active	LS2088A-RDB	Industrial	100 @ US$313.05	1292	BGA1292	1.0	Arm Cortex-A72	4	2100	27.2	32, 48	32, 48	2048	128	DDR4 SDRAM	2133	1	1	4	4	2	16	10G, 1G	4	PCIe 3.0	2 x SATA 3.0	Y	Y	4	JTAG	-40 to 105
LS2048AXE7TTB Data Sheet	Rev 1.1	QorIQ LS2088A	Active	LS2088A-RDB	Industrial	100 @ US$240.80	1292	BGA1292	1.0	Arm Cortex-A72	4	1800	20.4	32, 48	32, 48	2048	128	DDR4 SDRAM	1867	1	1	4	4	2	16	10G, 1G	4	PCIe 3.0	2 x SATA 3.0	Y	Y	4	JTAG	-40 to 105
