The LS10x8A family of multicore communications processors combines four up to and eight Arm^® Cortex^®-A53 cores with the advanced, high-performance data path and network peripheral interfaces required for wireless access points, networking infrastructure, intelligent edge access, including virtual customer premise equipment (vCPE) and high-performance industrial applications.

The Arm^® general-purpose processors and DPAA2 are supported by a powerful software toolkit that provides a higher level of hardware abstraction and makes software development quick and simple. This combination balances ease-of-use with high-performance processing in a Linux^® environment that is familiar to any software programmer.

Layerscape processors are part of NXP's EdgeVerse™ edge computing platform.

Data Sheet

Reference Manual

Product Details

Block Diagram

LS1088A Block Diagram

Get diagram PDF

Features

Core Complex

8x Cortex-A53 CPUs
- Up to 1.6 GHz with 64-bit ISA support
- Each two core clusters shares 1 MB L2 cache
1x 64-bit DDR4 up to 2.1GT/s
- ECC support

Networking Elements

Wire Rate I/O processor, featuring:
- 2x 10 GbE + 8x 1 GbE
- MACSEC on 4x 1G
- XFI/KR, QSGMII, SGMII/KX, RGMII
Advanced IO processor (AIOP)
- up to 10 Gb/s complex packet processing
10 Gb/s SEC crypto acceleration

Interfaces

Supports x4, x2, 3x1 PCIe Gen 3 controllers
SR-IOV support, Root Complex
1x SATA 3.0
2x USB 3.0 with PHY
2x TDM/HDLC interfaces

Additional Features

Support for HW virtualization and partitioning enforcement
Industry-standard APIs
Functional data path libraries
Tailored CodeWarrior^{^®} Development Suites

Buy/Parametrics

Part Show description	Silicon Rev	Family	Status	Development Tools	Qualification tier	Budgetary Price excluding tax	Package Termination Count	Package Type	Package Pitch (mm)	Core Type	Core: Number of cores (SPEC)	Operating Frequency [Max] (MHz)	Typical Power	Cache (KB)	L1 Cache (KB)	L2 Cache (Max) (KB)	SRAM (kB)	External Memory Supported	DRAM frequency (max)(MHz)	SPI	QSPI	UART	I²C	USB Controllers	Ethernet Ports	Ethernet Type	PCIe	PCIe version	SATA	Encryption	Watchdog timer	Timers	Debug & Trace	Ambient Operating Temperature (Min to Max) (℃)	Junction Temperature (Min to Max) (℃)
LS1048ASE7MQA Data Sheet	Rev 1	QorIQ LS1088A	Active	LS1088A-RDB	Industrial	100 @ US$99.22	780	FBGA780	0.8	Arm Cortex-A53	4	1200	4.5	32	32	1024	128	DDR4 SDRAM	1600	1	1	4	4	2	10	10G, 1G	3	PCIe 3.0	1 x SATA 3.0	Y	Y	4	JTAG	0 to 105	0 to 105
LS1048ASE7PTA Data Sheet	Rev 1	QorIQ LS1088A	Active	LS1088A-RDB	Industrial	100 @ US$114.11	780	FBGA780	0.8	Arm Cortex-A53	4	1400	6.4	32	32	1024	128	DDR4 SDRAM	1800	1	1	4	4	2	10	10G, 1G	3	PCIe 3.0	1 x SATA 3.0	Y	Y	4	JTAG	0 to 105	0 to 105
LS1048ASE7Q1A Data Sheet	Rev 1	QorIQ LS1088A	Active	LS1088A-RDB	Industrial	100 @ US$125.52	780	FBGA780	0.8	Arm Cortex-A53	4	1600	8	32	32	1024	128	DDR4 SDRAM	2100	1	1	4	4	2	10	10G, 1G	3	PCIe 3.0	1 x SATA 3.0	Y	Y	4	JTAG	0 to 105	0 to 105
LS1048ASN7MQA Data Sheet	Rev 1	QorIQ LS1088A	Active	LS1088A-RDB	Industrial	100 @ US$94.50	780	FBGA780	0.8	Arm Cortex-A53	4	1200	4.5	32	32	1024	128	DDR4 SDRAM	1600	1	1	4	4	2	10	10G, 1G	3	PCIe 3.0	1 x SATA 3.0	N	Y	4	JTAG	0 to 105	0 to 105
LS1048ASN7PTA Data Sheet	Rev 1	QorIQ LS1088A	Active	LS1088A-RDB	Industrial	100 @ US$108.67	780	FBGA780	0.8	Arm Cortex-A53	4	1400	6.4	32	32	1024	128	DDR4 SDRAM	1800	1	1	4	4	2	10	10G, 1G	3	PCIe 3.0	1 x SATA 3.0	N	Y	4	JTAG	0 to 105	0 to 105
LS1048ASN7Q1A Data Sheet	Rev 1	QorIQ LS1088A	Active	LS1088A-RDB	Industrial	100 @ US$119.55	780	FBGA780	0.8	Arm Cortex-A53	4	1600	8	32	32	1024	128	DDR4 SDRAM	2100	1	1	4	4	2	10	10G, 1G	3	PCIe 3.0	1 x SATA 3.0	N	Y	4	JTAG	0 to 105	0 to 105
LS1048AXE7MQA Data Sheet	Rev 1	QorIQ LS1088A	Active	LS1088A-RDB	Industrial	100 @ US$114.11	780	FBGA780	0.8	Arm Cortex-A53	4	1200	4.5	32	32	1024	128	DDR4 SDRAM	1600	1	1	4	4	2	10	10G, 1G	3	PCIe 3.0	1 x SATA 3.0	Y	Y	4	JTAG	-40 to 105	-40 to 105
LS1048AXE7PTA Data Sheet	Rev 1	QorIQ LS1088A	Active	LS1088A-RDB	Industrial	100 @ US$131.22	780	FBGA780	0.8	Arm Cortex-A53	4	1400	6.4	32	32	1024	128	DDR4 SDRAM	1800	1	1	4	4	2	10	10G, 1G	3	PCIe 3.0	1 x SATA 3.0	Y	Y	4	JTAG	-40 to 105	-40 to 105
LS1048AXE7Q1A Data Sheet	Rev 1	QorIQ LS1088A	Active	LS1088A-RDB	Industrial	100 @ US$144.35	780	FBGA780	0.8	Arm Cortex-A53	4	1600	8	32	32	1024	128	DDR4 SDRAM	2100	1	1	4	4	2	10	10G, 1G	3	PCIe 3.0	1 x SATA 3.0	Y	Y	4	JTAG	-40 to 105	-40 to 105
LS1048AXN7MQA Data Sheet	Rev 1	QorIQ LS1088A	Active	LS1088A-RDB	Industrial	100 @ US$108.67	780	FBGA780	0.8	Arm Cortex-A53	4	1200	4.5	32	32	1024	128	DDR4 SDRAM	1600	1	1	4	4	2	10	10G, 1G	3	PCIe 3.0	1 x SATA 3.0	N	Y	4	JTAG	-40 to 105	-40 to 105

Design Resources

Design Files

Receive the full breakdown. See the product footprint and more in the eCad file.

Hardware

Quick reference to our board types.

3 hardware offerings

Evaluation and Development Boards

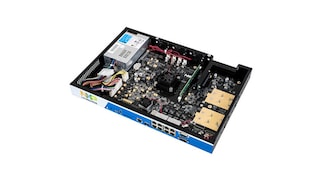

Layerscape LS1088A Reference Design BoardFeatured

LS1088A-RDB
Emulators, Probes, and Programmers
LS Processor Probe Tips for CodeWarrior TAP
Active

CWH-CTP-CTX10-YE
Emulators, Probes, and Programmers
CodeWarrior^® TAP

CW_TAP

4 hardware offerings

Embedded Board Solutions

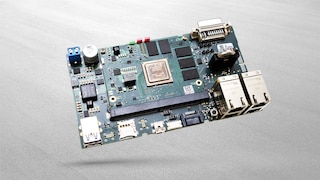

miriac® SBC-LS1088A

The miriac® SBC-LS1088A Single Board Computer is a NXP® QorIQ® LS1088A eight core Arm® Cortex®-A53 based complete system solution by MicroSys.

By MicroSys Electronics GmbH Gold Partner
Embedded Board Solutions
TQMLS10xxA

Embedded Cortex A53/A72 module based on LS1046A, LS1043A, LS1088A with 10 Gbit Ethernet interfaces for many network applications.

By TQ-Systems GmbH Platinum Partner
Evaluation and Development Boards
STKLS10xxA

Embedded Cortex A53/A72 Evaluation Kit based on LS1046A, LS1043A, LS1088A with 10 Gbit Ethernet interfaces for many network professional applications.

By TQ-Systems GmbH Platinum Partner
Complementary Silicon or Component
DRAM Modules

We build our modules from start to finish—designing, manufacturing, and testing all of the DRAM ourselves before assembling the modules and testing again. So, from high-p...

By Micron Gold Partner

To find additional partner offerings that support this product, visit our Partner Marketplace.
