Getting Started with the P3T1085UK-ARD Evaluation Board
Contents of this document
-
Out of the Box
-
Get Hardware
-
Configure Hardware
Sign in to save your progress. Don't have an account? Create one.
Purchase your P3T1085UK Arduino® Shield Evaluation Board
1. Out of the Box
The NXP analog product development boards provide an easy-to-use platform for evaluating NXP products. The boards support a range of analog, mixed-signal and power solutions. They incorporate monolithic integrated circuits and system-in-package devices that use proven high-volume technology. NXP products offer longer battery life, a smaller form factor, reduced component counts, lower cost and improved performance in powering state-of-the-art systems.
This page will guide you through the process of setting up and using the P3T1085UK-ARD board.
1.1 Kit Content and Packing List
The P3T1085UK-ARD contents include:
- Assembled and tested P3T1085UK-ARD board in an anti-static bag
1.2 Assumptions
Familiarity with the SPI-bus is helpful but not required.
1.3 Static Handling Requirements
CAUTION
Lethal voltage and fire ignition hazard
This device is sensitive to electrostatic discharge (ESD). Therefore care should be taken during transport and handling. You must use a ground strap or touch the PC case or other grounded source before unpacking or handling the hardware.
1.4 Minimum System Requirements
- PC Pentium processor (or equivalent)
- One USB port (either 3.0 or 2.0 or 1.1 compatible)
- Windows 7, 8, 10
- MIMXRT685-EVK MCU board
1.5 Power Requirements
The MIMXRT685-EVK MCU board obtains power from the PC USB port, two USB parts can be connected to the MIMXRT685-EVK MCU board simultaneously. Please use external power supply option if exceeding the USB port current capabilities.
2. Get Hardware
2.1 Board Features
- A complete evaluation platform for the P3T1085UK-ARD I3C, I2C-bus, 0.5 °C accuracy, digital temperature sensor
- Easy to use GUI based software demonstrates the capabilities of the P3T1085UK-ARD
- On-board temperature sensor for system thermal management experiments
- Convenient test points for easy scope measurements and signal access
- USB interface to the host PC
- Power supply from USB port (x2) or external power supply can be used to power P3T1085UK-ARD evaluation board
2.2 Board Description
The P3T1085UK-ARD evaluation board features an I3C, I2C-bus, 0.5 °C accuracy, digital temperature sensor. A graphical interface allows the user to easily explore the different functions of the driver. The board can be connected in parallel with other I2C-bus demo- boards to create an evaluation system.
The IC communicates to the host via the industry standard I2C-bus port. The evaluation software runs under Microsoft Windows 7, 8, 10 PC platform.
2.3 Board Components
Overview of the P3T1085UK-ARD board.
| Device | Description | Location |
|---|---|---|
| P3T1085UK | I3C, I2C-bus, 0.5 °C accuracy, digital temperature sensor | U2 |
| TPS71701DCKT | Adjustable output voltage LDO | U3 |
| NTS0304EPWJ | 4-bit dual supply translating transceiver | U4 |
| Green LED | Power supply on LED | D1 |
| Red LED | Alert LED | D2 |
3. Configure Hardware

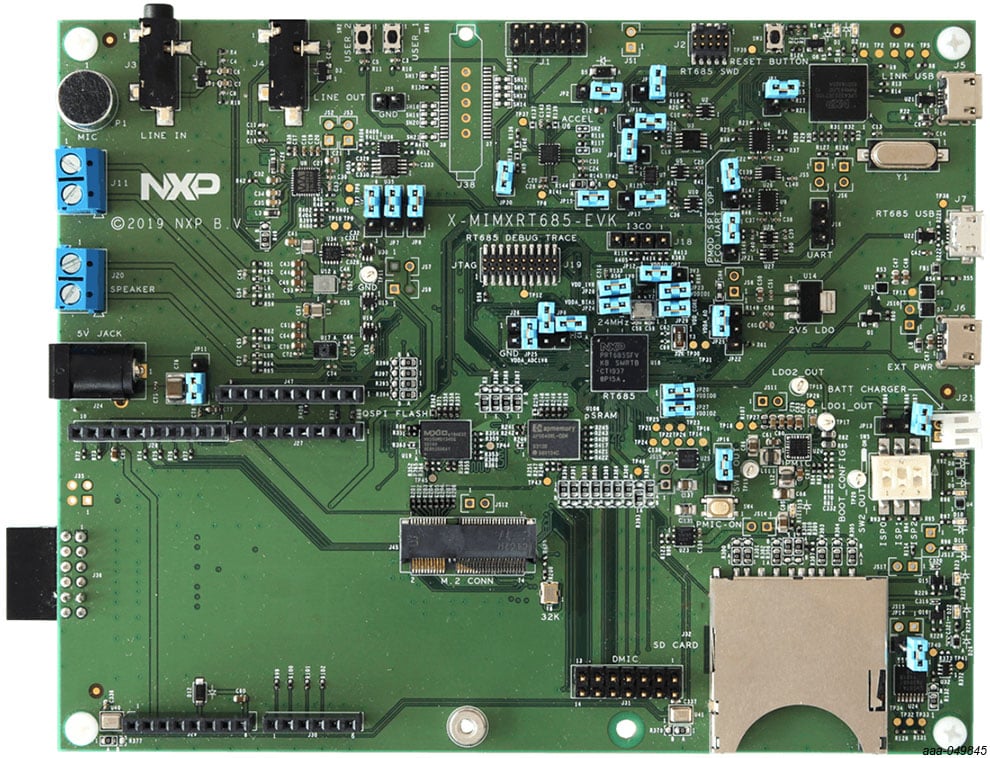

3.1 P3T1085UK-ARD EV Board and MIMXRT685-EVK MCU Board Connection
P3T1085UK-ARD evaluation board is connected to the MIMXRT685-EVK MCU board using four connectors
(J4/J5/J7/J8 on P3T1085UK-ARD board
and J27/J28/J29/J30 on MIMXRT685-EVK board) for
I2C-bus
and power supply, and one connector (J18 on P3T1085UK-ARD board and J on MIMXRT685-EVK board)
for I3C-bus.
The MIMXRT685-EVK MCU board communicates with P3T1085UK-ARD demo GUI through PC USB port and uses I2C or I3C-bus to communicate to P3T1085UK-ARD.
Use J7 (USB Micro-B connector) on MIMXRT685-EVK for power supply and GUI communication port.
