BRKTSTBAPx7250: Evaluation Breakout Board Series

BRKTSTBAPx7250

Roll over image to zoom in

The BRKTSTBAPx7250 series evaluation boards consist of one of the FXPS7250X series pressure sensors depending on the type of pressure output protocol required; analog or digital (I²C/SPI). The FXPS7250X is an automotive grade high-performance, high-precision absolute pressure sensor. The evaluation boards come in the 20 kPa to 250 kPa pressure range and NXP also provides a PCB where many other pressure ranges can be used as required by the application. For example, 40 kPa to 115 kPa or 20 kPa to 550 kPa and many other pressure ranges are available in either an analog or digital output format. This sensor FXPS7 family is ideal for many automotive applications such as manifold air pressure (MAP), comfort seating and other applications requiring operating absolute pressure ranges up to 550 kPa.

Through the combined use of the FRDM7X-INTERFACE board, any of the BRKTSTBAPx7250 breakout boards can be easily connected to a NXP Freedom MCU board via the Arduino headers for evaluation. There are component library projects provided for the FRDM-KE15Z and FRDM-K64F MCU boards for fast evaluation.

Supported Devices

Sensors

LPG and CNG Gas 20 to 550 kPa

  • FXPS7xx0D4: Digital Absolute Pressure Sensor (20 to 550 kPa)
  • FXPS7xx0A4: Analog Absolute Pressure Sensor (20 to 550 kPa)

Features

Pressure / Temperature Range and Packaging

  • Absolute pressure range: 20 to 550 kPa
  • Operating temperature range: –40 °C to 130 °C
  • Lead-free, 16-pin HQFN, 4 mm x 4 mm x 1.98 mm package

I²C Compatible Serial Interface

  • Follower mode operation
  • Standard mode, fast mode and fast-mode plus support

32-Bit SPI Compatible Serial Interface

  • Sensor data transmission commands
  • 12-bit data for absolute pressure
  • 8-bit data for temperature
  • 2-bit basic status and 2-bit detailed status fields
  • 3, 4, or 8-bit configurable CRC
  • Digital self-test

Buy Options

BRKTSTBAPA7250S-Image

Click to expand

  • BRKTSTBAPA7250S
    Active

  • BRKTSTBAPA7250S: Analog Evaluation Breakout Board.

  • Kit contains:

    • Assembled and tested evaluation board in an antistatic bag
  • $29.95
  • For a quantity of 1
    • Availability:
ADD TO CART
Order from distributors
BRKTSTBAPDI7250-Image

Click to expand

  • BRKTSTBAPDI7250
    Active

  • BRKTSTBAPDI7250: I2C Evaluation Breakout Board.

  • Kit contains:

    • Assembled and tested evaluation board in an antistatic bag
  • $29.95
  • For a quantity of 1
    • Availability:
ADD TO CART
Order from distributors
BRKTSTBAPDS7250-Image

Click to expand

  • BRKTSTBAPDS7250
    Active

  • BRKTSTBAPDS7250: SPI Evaluation Breakout Board.

  • Kit contains:

    • Assembled and tested evaluation board in an antistatic bag
  • $29.95
  • For a quantity of 1
    • Availability:
ADD TO CART
Order from distributors

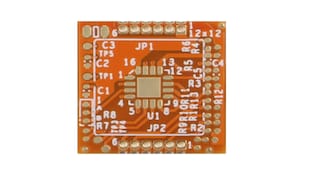

BRKFXPS7XXX-PCB-Image

Click to expand

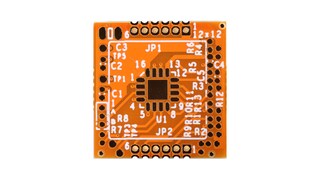

  • BRKFXPS7XXX-PCB
    Active

  • BRKFXPS7XXX-PCB: Blank PCB for use with any output protocol.

  • Kit contains:

    • Assembled and tested evaluation board in an antistatic bag
  • $10.00
  • For a quantity of 1
    • Availability:
ADD TO CART
Order from distributors
FRDM7X-INTERFACE-Image

Click to expand

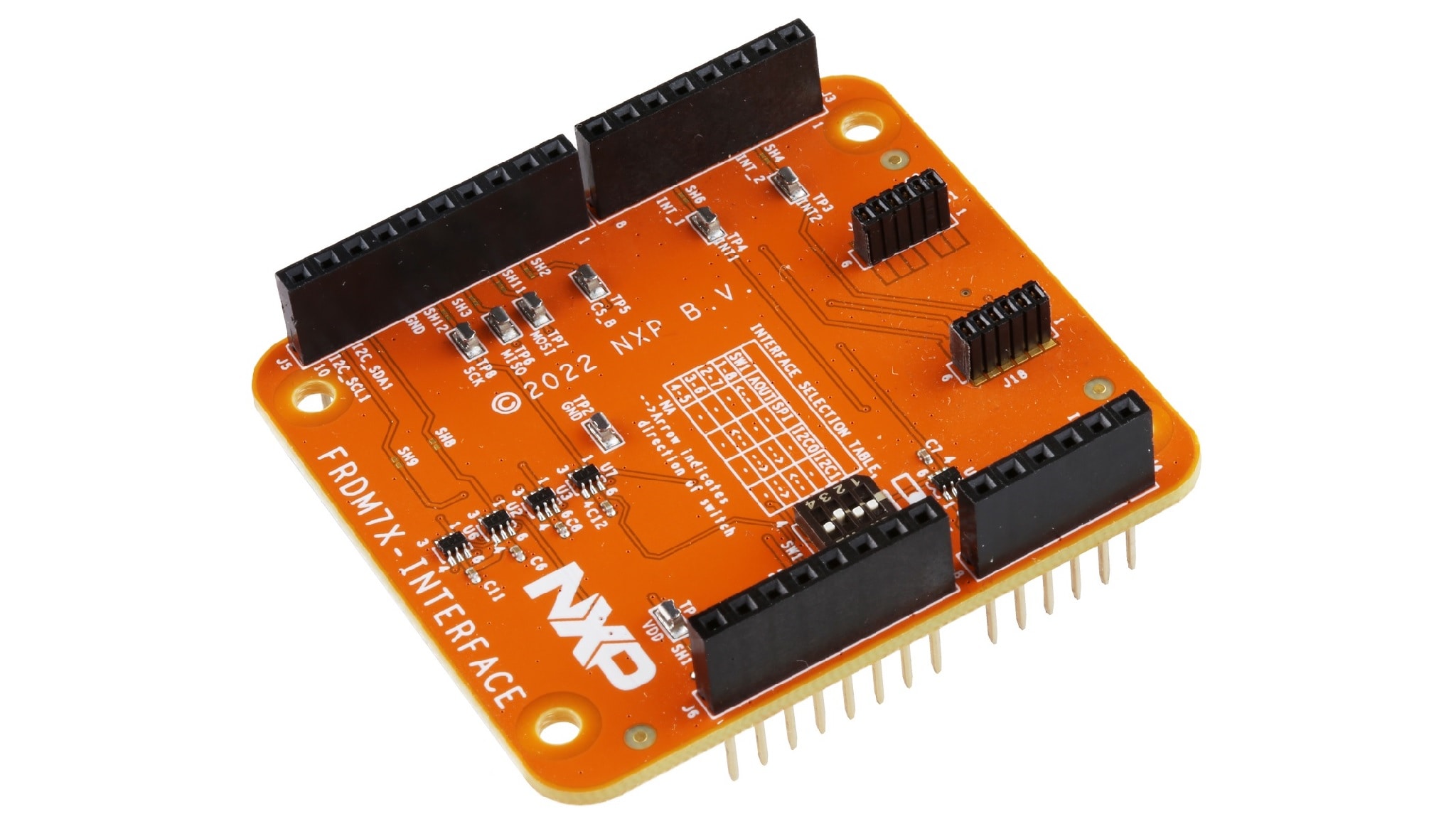

  • FRDM7X-INTERFACE
    Active

  • FRDM7X-INTERFACE: Breakout board to Freedom interface board.

  • Kit contains:

    • Assembled and tested evaluation board in an antistatic bag
  • $39.00
  • For a quantity of 1
    • Availability:
ADD TO CART
Order from distributors
