Socket Evaluation Board for FXLS9 and FXPS7 Sensors Families

SEN-GEN6-SKT Active

Roll over image to zoom in

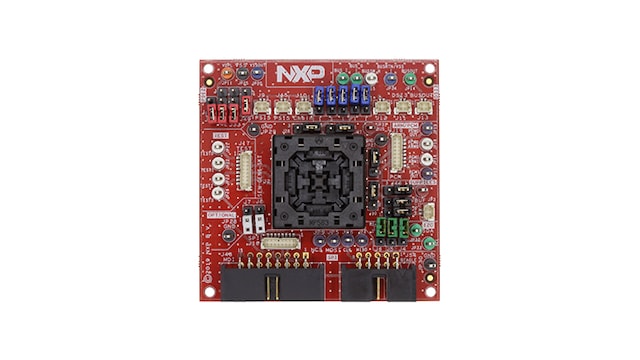

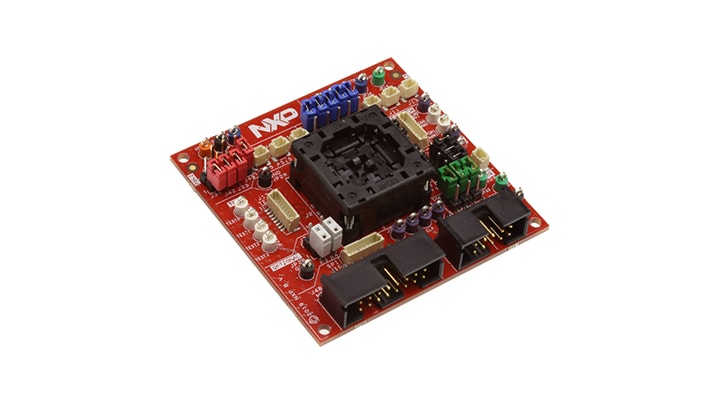

The SEN-GEN6-SKT board is a socket kit designed to evaluation the FXLS9xxxx and FXPS7xxxx sensor families. The board supports different communication configurations such as SPI, I2C, DSI3 or PSI5.

Supported Devices

Sensors

Accelerometers

  • FXLS90: DSI3/SPI Automotive Safety Digital Accelerometer
  • FXLS93: PSI5 Automotive Safety Digital Accelerometer

LPG and CNG Gas 20 to 550 kPa

  • FXPS7xx0A4: Analog Absolute Pressure Sensor (20 to 550 kPa)
  • FXPS7xx0D4: Digital Absolute Pressure Sensor (20 to 550 kPa)

Automotive Safety Pressure Sensors

  • FXPS7140X: FXPS7140X Automotive Safety Pressure Sensor DSI3 and PSI5

Features

Automotive sensor

  • Support both FXSL9xxxx and FXPS7xxxx sensors

Flexible configuration

  • Support SPI, I2C, DSI3 and PSI5

Easy attach to external MCU

  • Dedicated Beagle and NXP MDI interfaces

Easy debugging

  • Colored testpoints for scope probing

Buy Options

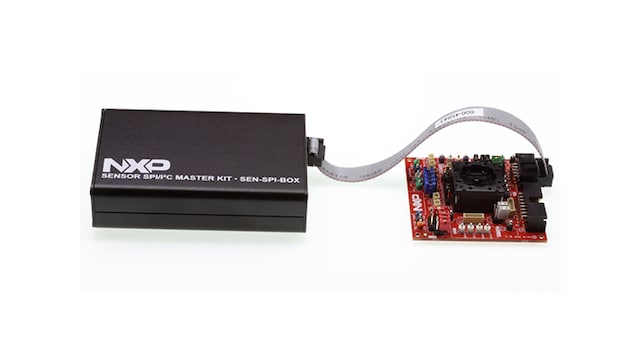

SEN-GEN6-SKT-Image

Click to expand

  • SEN-GEN6-SKT
    Active

  • Socket Evaluation Board for FXLS9 and FXPS7 Sensors Families.

  • The SEN-GEN6-SKT board is a socket kit designed to evaluation the FXLS9xxxx, FXPS7xxxx sensors.

    • 1x Automotive sensor socket board (SEN-GEN6-SKT)
    • 4x red jumpers 3x green jumpers 7x purple jumpers
    • 2x white jumpers
    • 5x blue jumpers

    THIS KIT DOES NOT CONTAINS SENSOR SAMPLE. IT SHOULD BE ORDERED SEPARATELY

  • $303.60 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 3
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
