TEA1995 Add-On Board

TEA1995DB1294 Active

Roll over image to zoom in

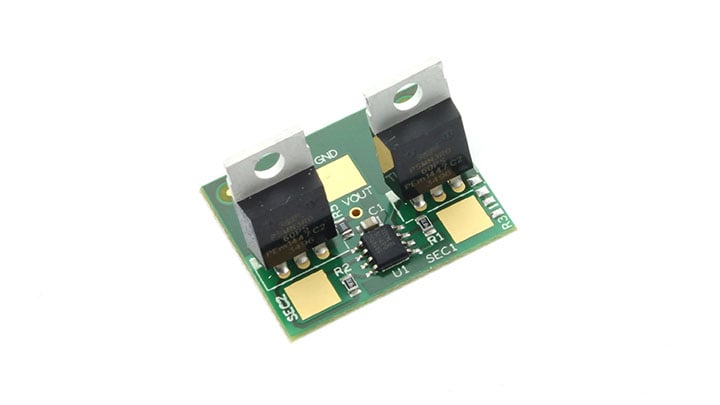

The TEA1995 add-on board is designed for incorporation into existing resonant power supplies or multi-output flyback power supplies by replacing the secondary rectifier diodes. The add-on board consists of the TEA1995 Dual SR controller IC and low-ohmic MOSFETs in TO-220 package.

Supported Devices

Power Management

Secondary Side Controllers

  • TEA1995T: GreenChip Dual Synchronous Rectifier (SR) Controller

Features

Key Features

  • Increased efficiency of the total application with adaptive gate drive for maximum efficiency at any load

IC used

  • TEA1995T Dual SR controller in SO-8 package

Connectivity

  • Can be connected to a wide range of resonant power supplies or multioutput flyback power supplies

Power Management

  • Wide supply voltage range (4.5 V to 38 V)

Components

  • Two low ohmic SR MOSFETs in TO-220 package for power levels up to 300 W

Buy Options

TEA1995DB1294-Image

Click to expand

  • TEA1995DB1294
    Active

  • TEA1995T GreenChip Dual SR Controller add-on board for resonant and multi-output flyback (TO-220 MOSFETs).

    • Demoboard
    • Quick start guide
  • $144.90
  • For a quantity of 1
    • Availability:
ADD TO CART
Order from distributors
