NBP8 Freedom Shield Evaluation Board

FRDMSTBANBP8XD Active

Roll over image to zoom in

The NBP8 FRDMSTBANBP8XD evaluation board consists of a fully integrated battery pressure monitoring sensor (BPMS) which integrates an 8-bit central processing unit (CPU) and NXP-provided firmware to create the ready-to-use pressure sensor. The battery pressure monitoring sensors have a built-in MCU and are capable of sensing the pressure change, making a configuration-based decision and acting on this decision while providing this information to the host system.

The NBP8 FRDMSTBANBP8XD shield board comes with standard Arduino headers and can be paired and connected with NXP Freedom MCU boards for user evaluations and software development.

Supported Devices

Sensors

Battery Pressure Monitoring Sensors (BPMS)

  • NBP8-9x: Highly Integrated Battery Pressure Monitor Sensor

Features

  • A small footprint in a 4 x 4 mm package
  • Low power consumption
  • PWM
  • SPI
  • Ready/interrupt and power supply enable capabilities
  • Can be easily connected to an NXP Freedom MCU board via the Arduino headers for evaluation. The FRDM-KE15Z board is recommended
  • Users can connect the two boards to evaluate the NPB8XD battery pressure monitor sensor by using either a terminal program and commands or a demo GUI. In either case, the hardware facilitates software development

Buy Options

FRDMSTBANBP8XD-Image

Click to expand

  • FRDMSTBANBP8XD
    Active

  • NBP8 Freedom Shield Evaluation Board.

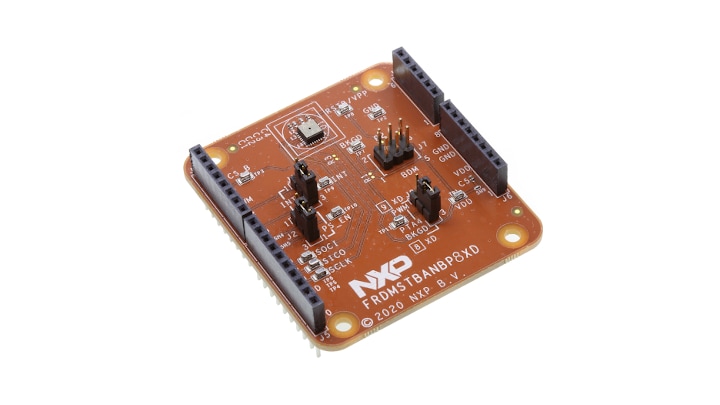

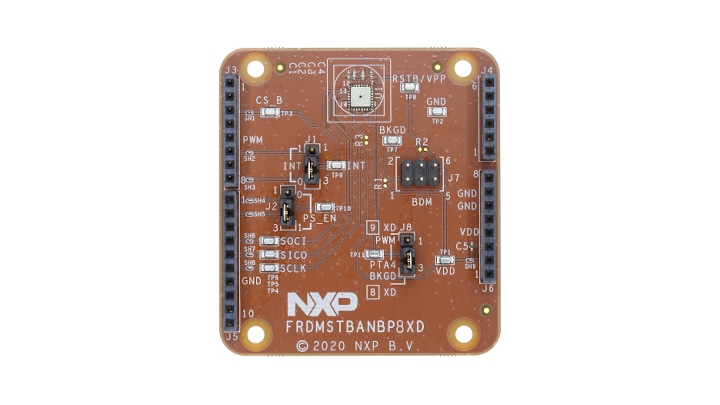

    • NBP8 FRDMSTBANBP8XD Freedom shield board with Arduino headers
  • $52.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
