Evaluation Tool for Automotive Sensors

SEN-SPI-BOX Active

Roll over image to zoom in

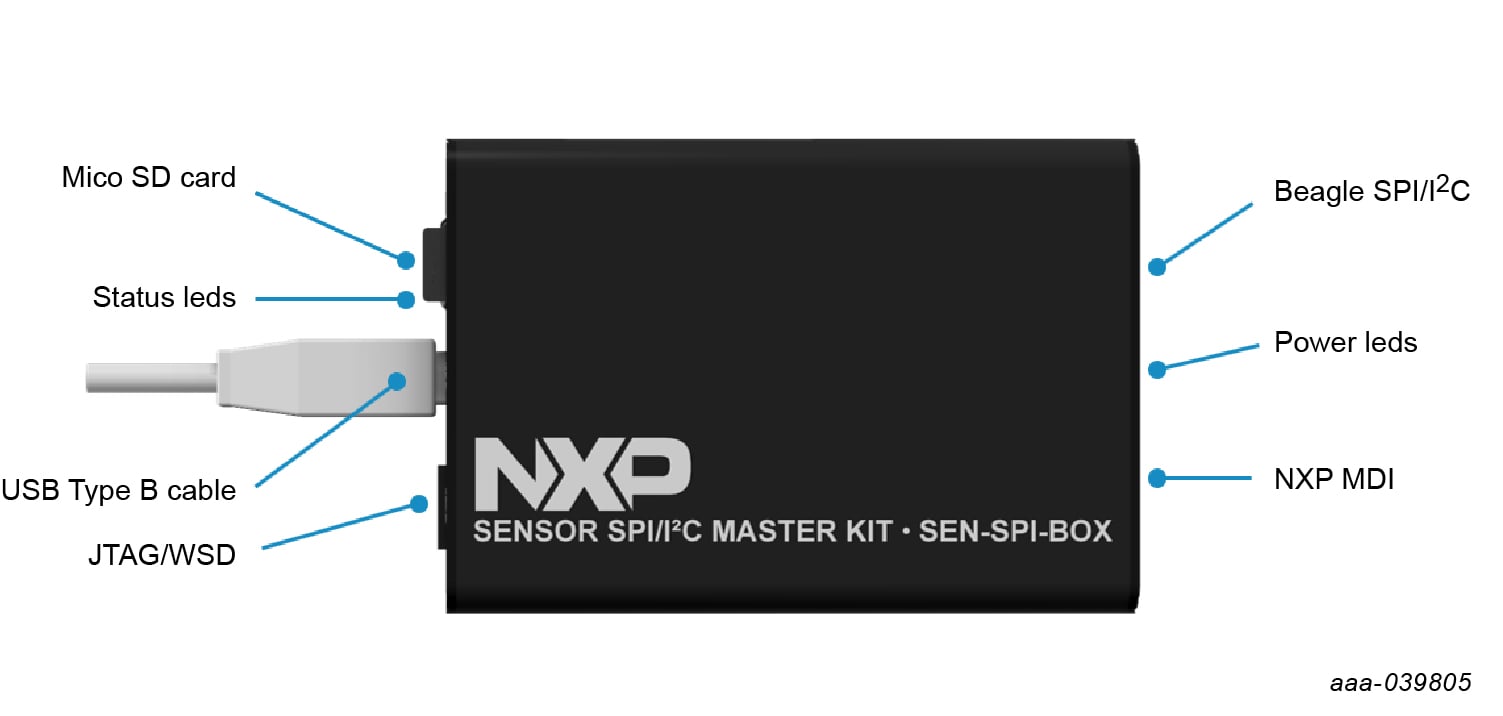

The NXP SEN-SPI-BOX kit provides a full-solution of built-in functionalities to communicate with any SPI/I²C sensor. The kit graphs real-time data, executes custom scripts and verifies sensor status. The board is a generic SPI/I²C evaluation board, compatible with some of the NXP sensor families such as FXLS90xxx automotive digital accelerometers.

Optional adapter boards may be purchased separately to add to the SEN-SPI-BOX kit PSI5 and/or DSI3 capabilities.

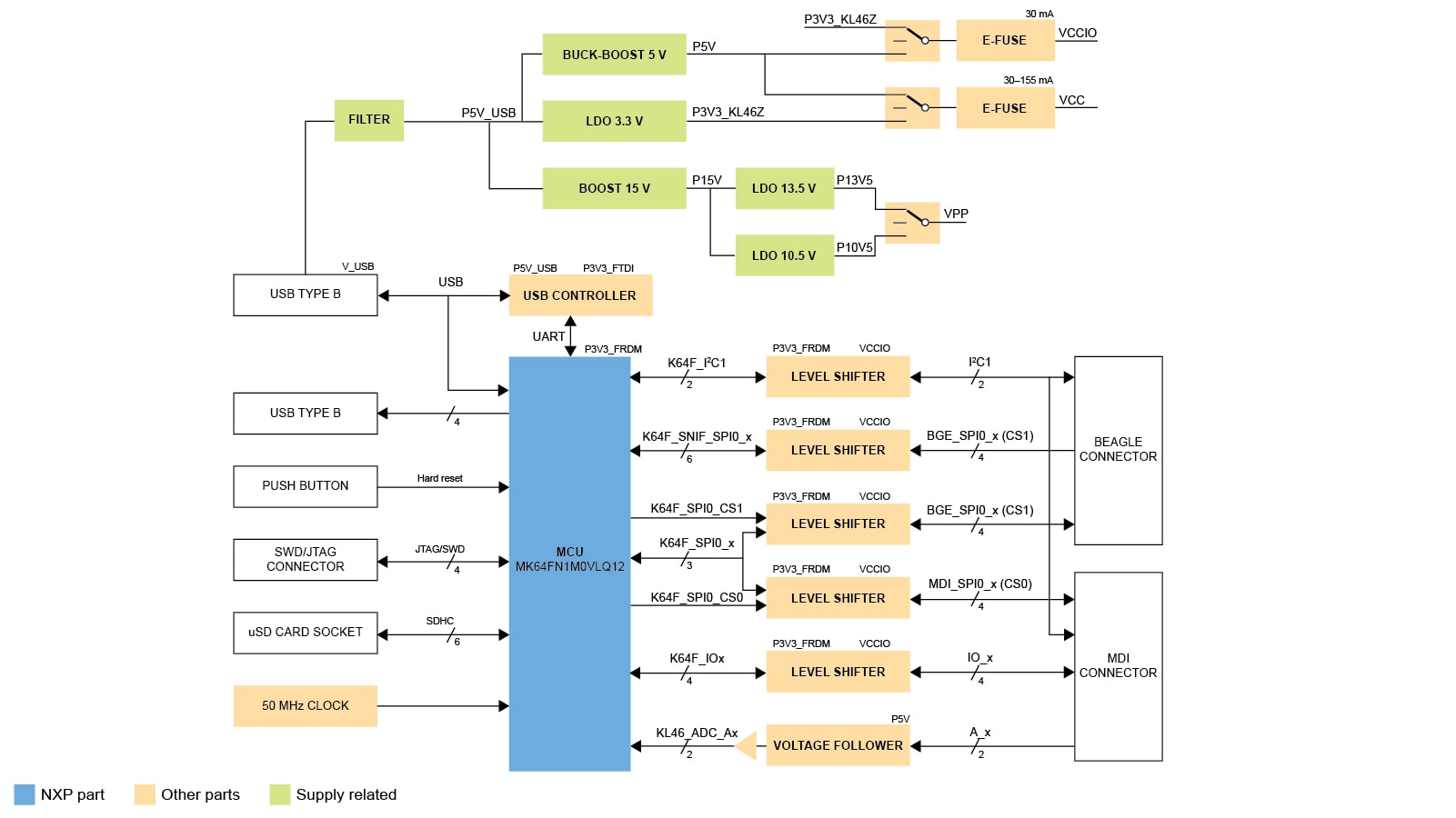

Block Diagram

SEN-SPI-BOX Block Diagram

SEN-SPI-BOX Block Diagram
Get diagram PDF

Supported Devices

Sensors

Accelerometers

  • FXLS93: PSI5 Automotive Safety Digital Accelerometer
  • FXLS90: DSI3/SPI Automotive Safety Digital Accelerometer

Automotive Safety Pressure Sensors

  • FXPS7140X: FXPS7140X Automotive Safety Pressure Sensor DSI3 and PSI5

Products

No Longer Manufactured

  • MMA69xxKQ: SPI ±3.5 g or ±5.0 g XY-Axis, Low-g, Digital Inertial Sensor

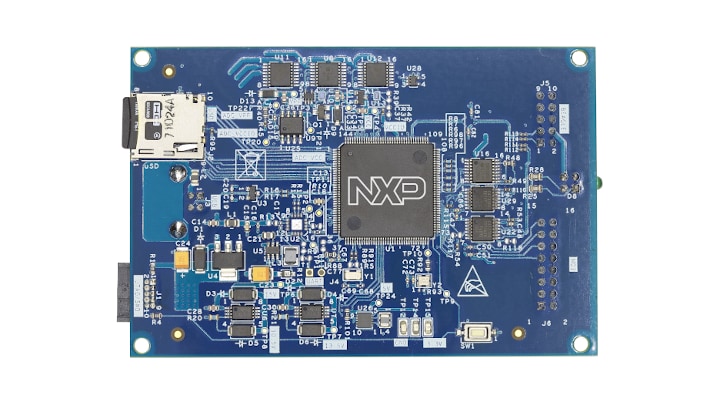

Features

Microcontroller (MCU)

  • MK64FN1M0VLQ12

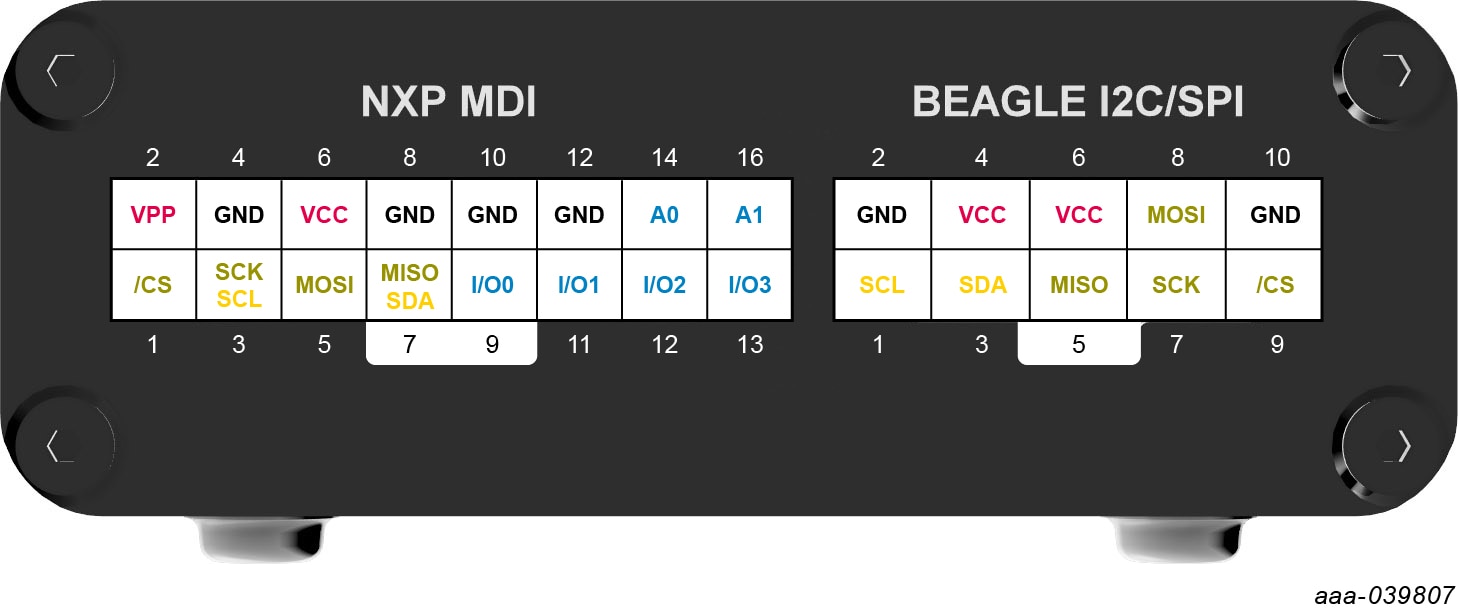

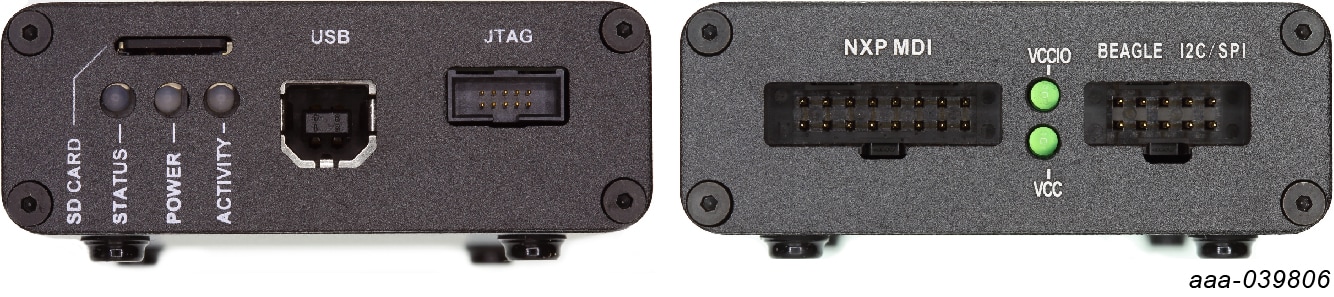

Connectivity

  • USB
  • microSD card

Content

  • 1x USB type-B cable
  • 1x Beagle ribbon cable (10-pin)
  • 1x NXP MDI ribbon cable (16-pin)
  • 1x Debug cable (10-pin)
  • 1x 8 GB micro SD card
  • 1x uSd to PC adapter

Supported voltages

  • Support 3.3 V and 5 V device
  • Auxiliary supply 10.5 V or 13.5 V

Software

  • Fully supported by the NXP FFV Tool software

Supported Sensor

  • FXLS90xxx
  • FXLS93xxx (requires SEN-PSI5-ADAPTER)
  • MMA69xx
  • FXLS8962

Buy Options

SEN-SPI-BOX-Image

Click to expand

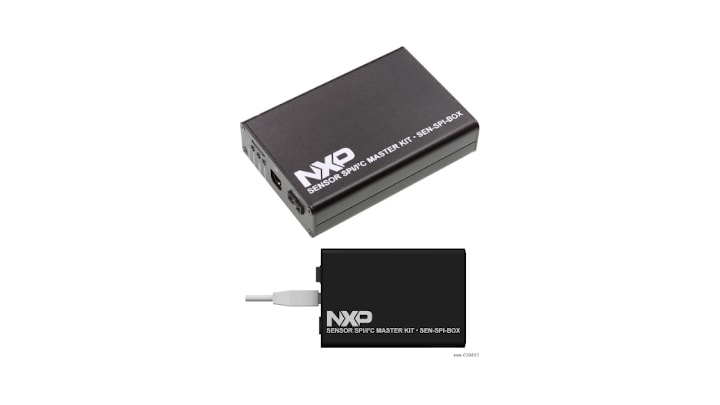

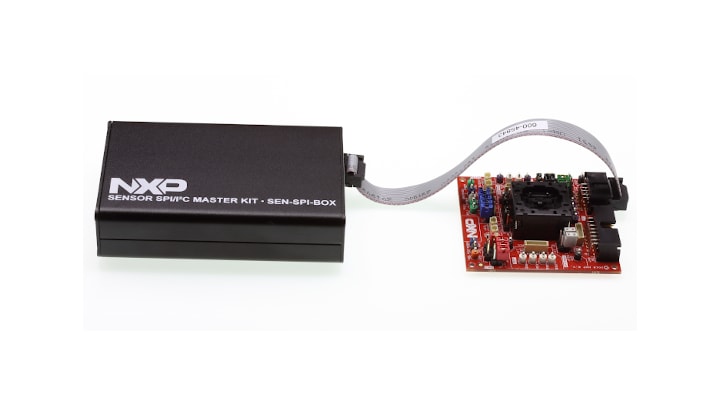

  • SEN-SPI-BOX
    Active

  • Evaluation Tool for Automotive Sensors.

  • The SEN-SPI-BOX evaluation board contains:

    • One Sensor SPI Master Kit (SEN-SPI-BOX) includes:
    • One USB Type A USB cable
    • One NXP MDI ribbon cable (16-pin)
    • One Beagle ribbon cable (10-pin)
    • One Debug cable
    • One 8 GB microSD card
    • One microSD to PC adapter
  • $483.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 5
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
SEN-DSI3-ADAPTER-Image

Click to expand

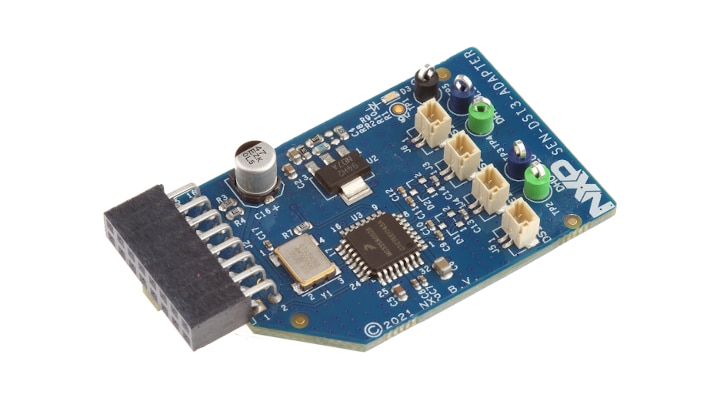

  • SEN-DSI3-ADAPTER
    Active

  • Evaluation Tool for Automotive Sensors.

    • 1x SEN-DSI3-ADAPTER board
    • 2x DSI3 cables
  • $103.50 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
SEN-PSI5-ADAPTER-Image

Click to expand

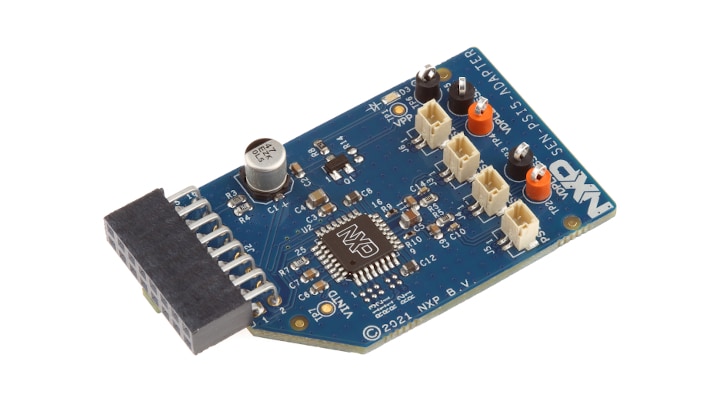

  • SEN-PSI5-ADAPTER
    Active

  • Evaluation Tool for Automotive Sensors.

    • 1x SEN-PSI5-ADAPTER board
    • 2x DSI3 cables
  • $103.50 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 4
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
