Pressure Sensor Waterlevel Evaluation Board

KITMPVZ5004EVK Active

Roll over image to zoom in

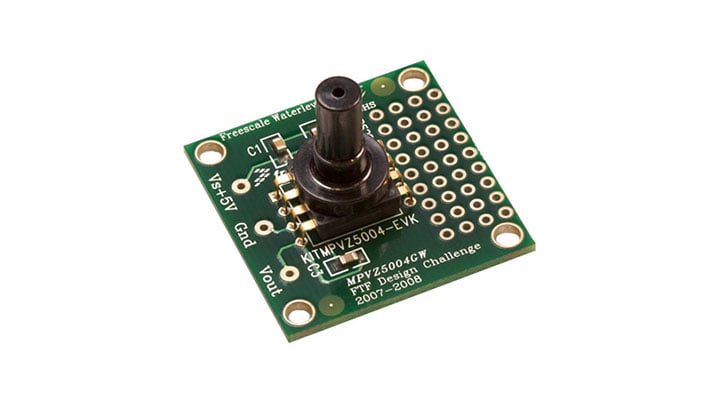

KITMPVZ5004EVK is a simple waterlevel evaluation board designed for easy connection to the pressure sensor. The filter circuitry has been added to the output of the sensor, and the only connections required are +5V, Ground, and the Vout to an ADC. The media resistant sensor is designed to measure up to 40cm of H2O via a tube that should be connected to the port. More information on waterlevel can be found in our app note AN1950. For FTF Design Contest Participants, this can be used to get feedback when a waterlevel has reached a particular height, for control/feedback systems.

Product Details

Supported Devices

Sensors

Differential/Gauge Up to 10 kPa

  • MPXx2010: Differential and Gauge, Compensated Pressure Sensor (0 to 10 kPa)
