LPCScrypt

LPCSCRYPT

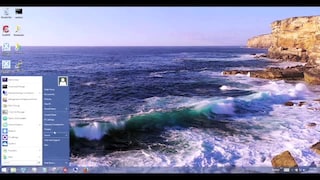

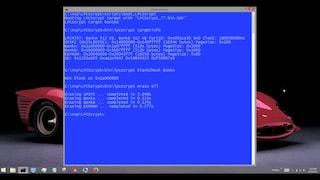

LPC Tips and Tricks: LPCScrypt

Click over video to play

LPCScrypt is the recommended tool for programming the latest versions of CMSIS-DAP and J-Link firmware onto boards with Link2/LPC-Link2 debug probes. Please note that LPCScrypt does not support other types of debug probe.

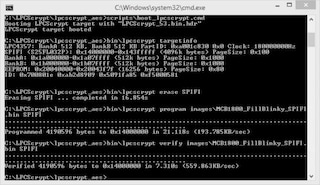

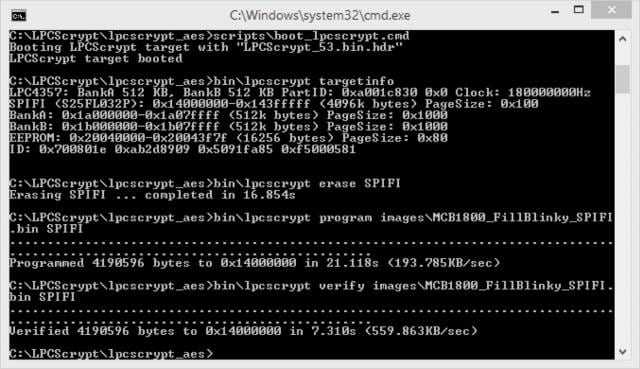

As well as being used for LPC-Link2 debug probes, LPCScrypt is also a command-line based, flash, EEPROM, OTP and security programming tool for LPC1800 and LPC4300 series microcontrollers. LPCScrypt consists of a multi-platform command line tool and an MCU firmware monitor. For further information please refer to the documentation provided in the installation.

Contact your local NXP® representative to obtain the enhanced version (required for export control compliance).

Features

  • Scriptable command line interface
  • Programming of internal and SPIFI flash
    • Support for a wide range of SPIFI devices (via SFDP identification and configuration)
    • Optimised for high speed operation - typically 100-300KB/sec, depending upon flash device, host OS and host computer.
  • Programming EEPROM (internal flash parts only)
  • Programming One-Time Programmable (OTP) memory
  • Images and scripts to program LPC-Link2 and LPCXpresso V2/V3 debug probe firmware
    • LPC-Link2 Debug Firmware Programming
  • Generating and programming 128 bit AES keys
  • Encrypting and programming secure images

Supported Devices

System Requirements
