TJA1445 | High-Speed CAN Partial Networking | NXP Semiconductors

CAN FD Transceiver with Partial Networking, CAN FD Data Rates Up to 5 Mbit/s

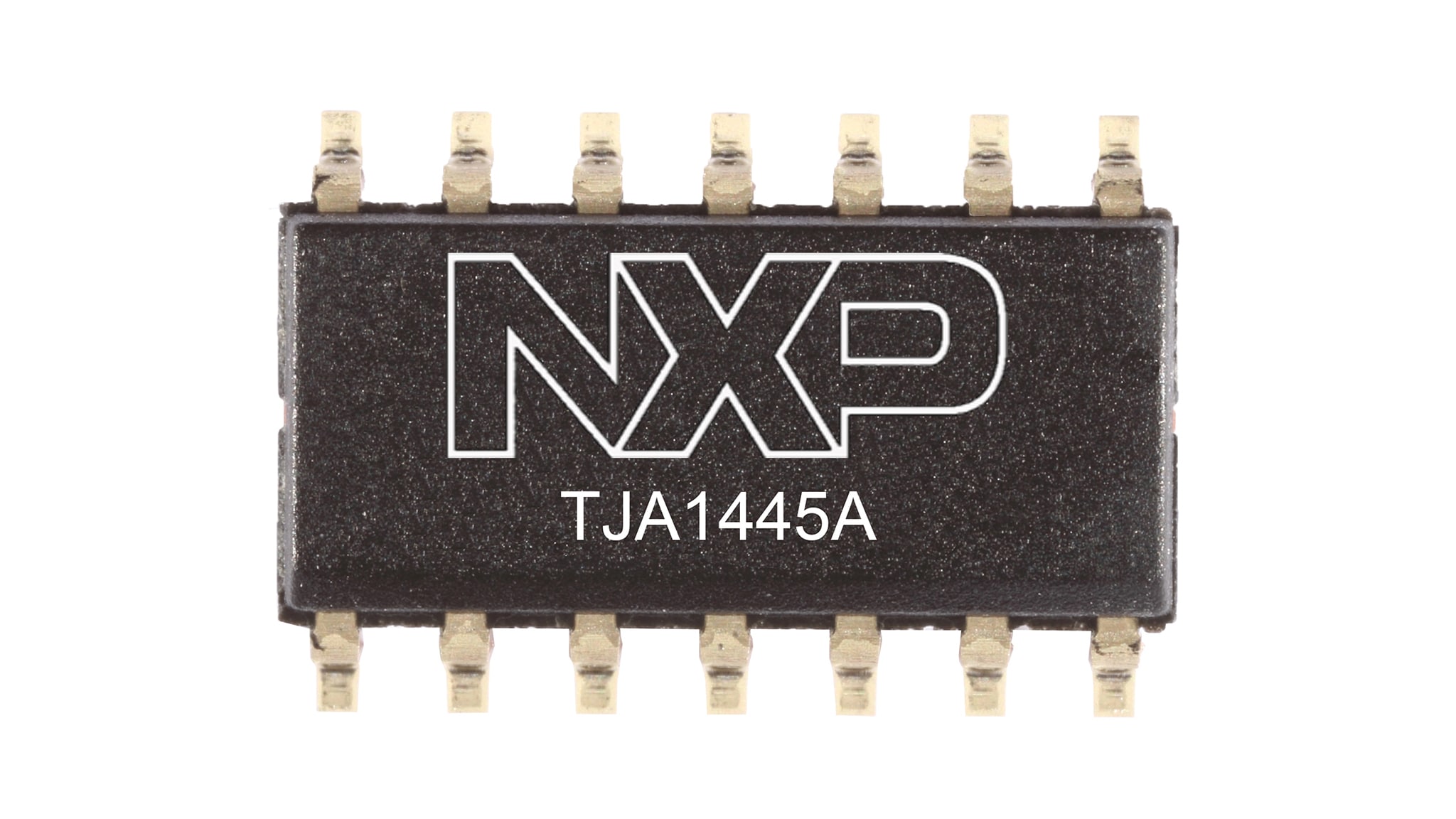

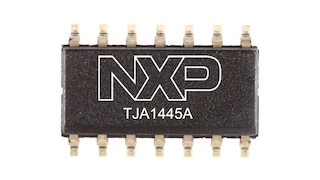

Roll over image to zoom in

Block Diagram

Choose a diagram:

TJA1445A

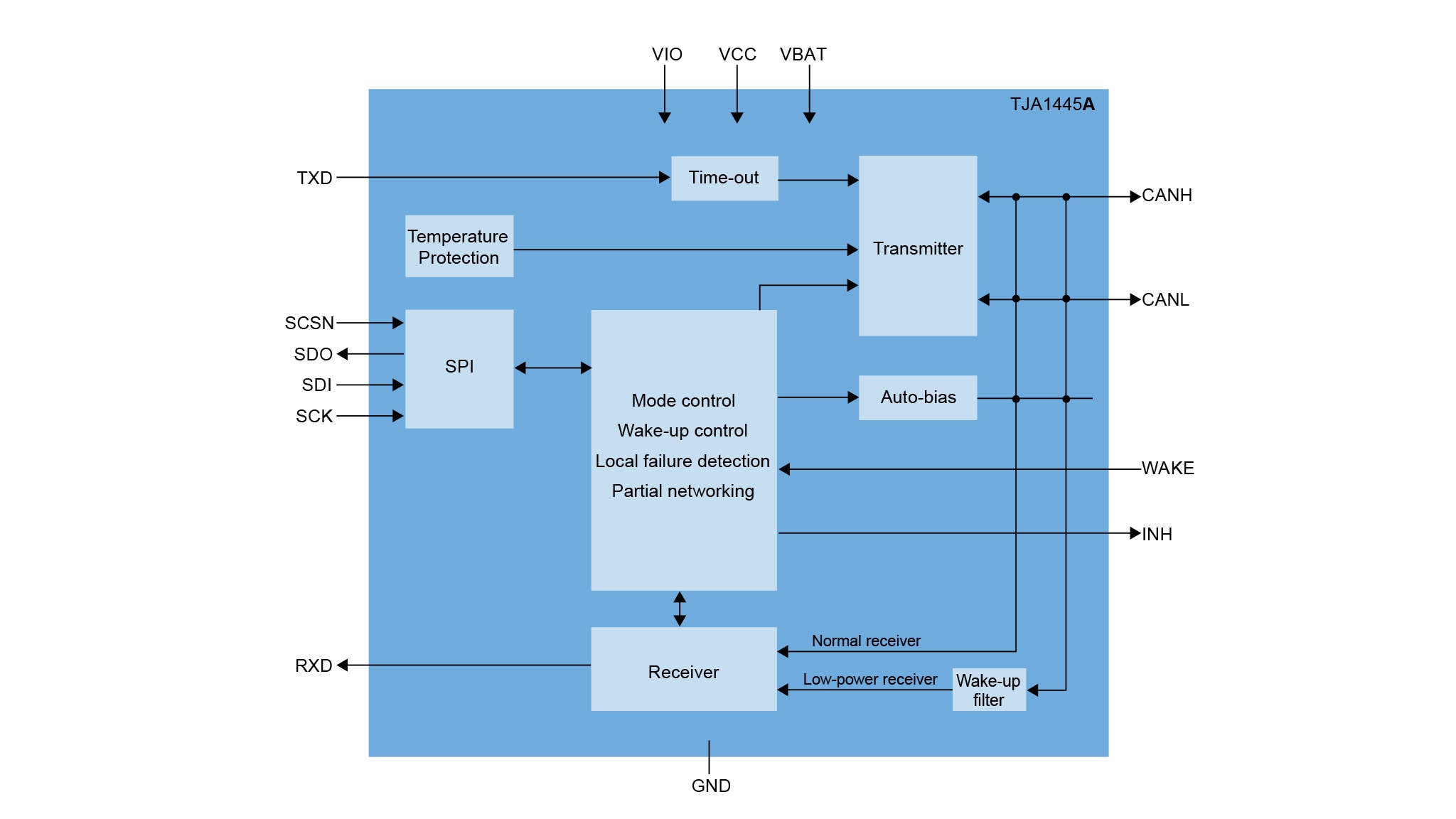

TJA1445A Block Diagram

TJA1445B

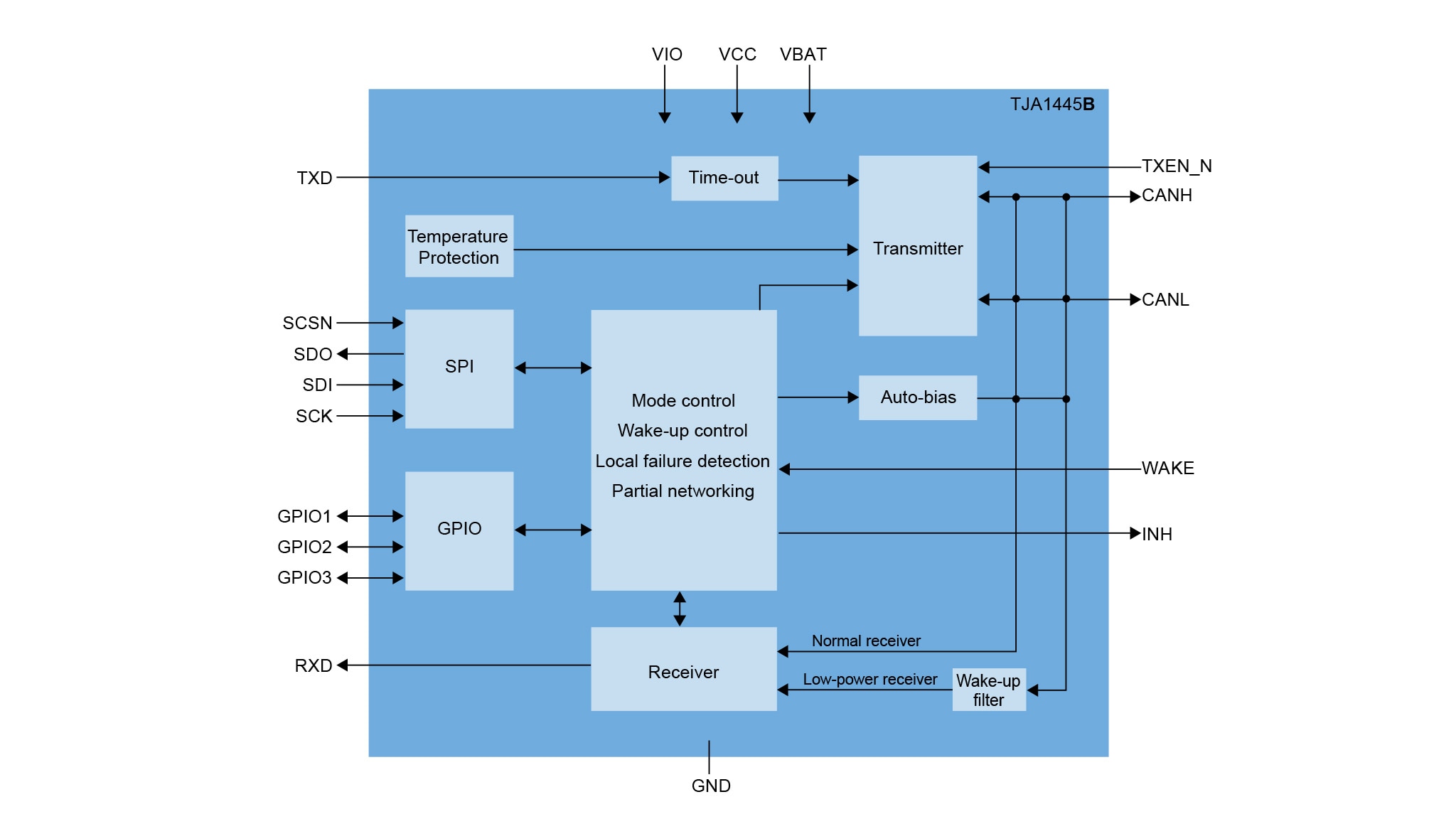

TJA1445B Block Diagram

Features

General Features

  • ISO 11898-2:2024 parameter sets A-B, SAE J2284-1 to SAE J2284-5 and SAE J1939-14 compliant
  • ISO 26262, ASIL B compliant
  • Partial networking capability through selective wake-up functionality
  • Configurable general-purpose I/O (GPIO) pins (TJA1445B)
  • Direct transmitter on/off control input (TXEN_N) (TJA1445B)
  • Autonomous bus biasing
  • Low electromagnetic emission (EME) and high electromagnetic immunity (EMI)
  • Qualified according to AEC-Q100 Grade 1
  • VIO input for interfacing with 1.8 V, 3.3 V to 5 V microcontrollers
  • TJA1445A available in SO14 and HVSON14 package
  • TJA1445B available in a DHVQFN18 package

Predictable and Fail-Safe Behavior

  • Undervoltage detection on all supply pins with defined behavior below the undervoltage thresholds
  • Functionality is guaranteed from the undervoltage detection thresholds up to the maximum limiting voltage values
  • Transceiver disengages from the bus (high-ohmic) when the battery voltage drops below the Off mode threshold
  • Internal biasing of TXD to enable defined fail-safe behavior

Low-Power Management

  • Very low-current Standby and Sleep modes, with local and remote wake-up capability
  • Local wake-up via the WAKE pin
  • Remote wake-up via a wake-up pattern (WUP) or wake-up frame (WUF)
  • Configurable CAN wake-up pattern (dom-rec-dom or dom-rec-dom-rec) according to ISO 11898-2:2024
  • Selective wake-up according to ISO 11898-2:2024

Diagnosis and Protection

  • Overtemperature diagnosis and protection
  • Transmit data (TXD) dominant time-out diagnosis and protection
  • Bus dominant failure diagnosis
  • Cold start diagnosis (first battery connection)
  • High ESD handling capability on the bus pins
  • Bus pins and VBAT protected against automotive transients

More

Buy/Parametrics

3 results

Include 0 NRND

Order

CAD Model

Status

Recommended Orderable Part Number

MCU I/O Interface (V)

CAN Bus Robustness [Min-Max] (V)

Low Power Modes

Package Type

CAN Channels

Product Category

Supply Voltage [Min to Max] (V)

Data Rate [min] kbps

Voltage on bus pins [Min-Max] (V)

VESD IEC on bus pins (+/- kV)

Tvj [max] (℃)

Protection

Wake-Up Pin

Min High Input Levels (V) [Vio]

GPIO

Supported standards

SPLIT Pin

Thermal Resistance (Spec) (℃/W)

Product Application

Active

TJA1445AT/0Z

1.8, 3.3, 5.0

-36 to 40

Sleep Mode with selective wake-up, Standby Mode

SO14

1

CAN FD / High-Speed CAN

4.5 to 5.5

50.0

-36 to 40

-8 to 8

150

Bus dominant timeout, MCU reaction timeout, TXD dominant timeout, overtemperature, undervoltage detection

Y

0.7

ISO 11898-2:2024, ISO 26262, SAE J1939-14, SAE J2284-1, SAE J2284-2, SAE J2284-3, SAE J2284-4, SAE J2284-5

N

85

Automotive, Industrial

Active

TJA1445ATK/0J

1.8, 3.3, 5.0

-36 to 40

Sleep Mode with selective wake-up, Standby Mode

HVSON14

1

CAN FD / High-Speed CAN

4.5 to 5.5

50.0

-36 to 40

-8 to 8

150

Bus dominant timeout, MCU reaction timeout, TXD dominant timeout, overtemperature, undervoltage detection

Y

0.7

ISO 11898-2:2024, ISO 26262, SAE J1939-14, SAE J2284-1, SAE J2284-2, SAE J2284-3, SAE J2284-4, SAE J2284-5

N

71

Automotive, Industrial

Active

TJA1445BHG/0J

1.8, 3.3, 5.0

-36 to 40

Sleep Mode with selective wake-up, Standby Mode

DHVQFN18

1

CAN FD / High-Speed CAN

4.5 to 5.5

50.0

-36 to 40

-8 to 8

150

Bus dominant timeout, MCU reaction timeout, TXD dominant timeout, overtemperature, undervoltage detection

Y

0.7

3

ISO 11898-2:2024, ISO 26262, SAE J1939-14, SAE J2284-1, SAE J2284-2, SAE J2284-3, SAE J2284-4, SAE J2284-5

N

69

Automotive, Industrial
