TJA1152 Secure HS-CAN Transceiver | NXP Semiconductors

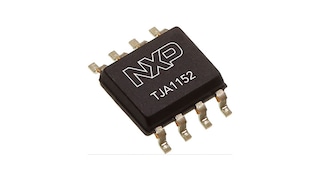

Secure HS-CAN Transceiver with Standby Mode

Roll over image to zoom in

Block Diagram

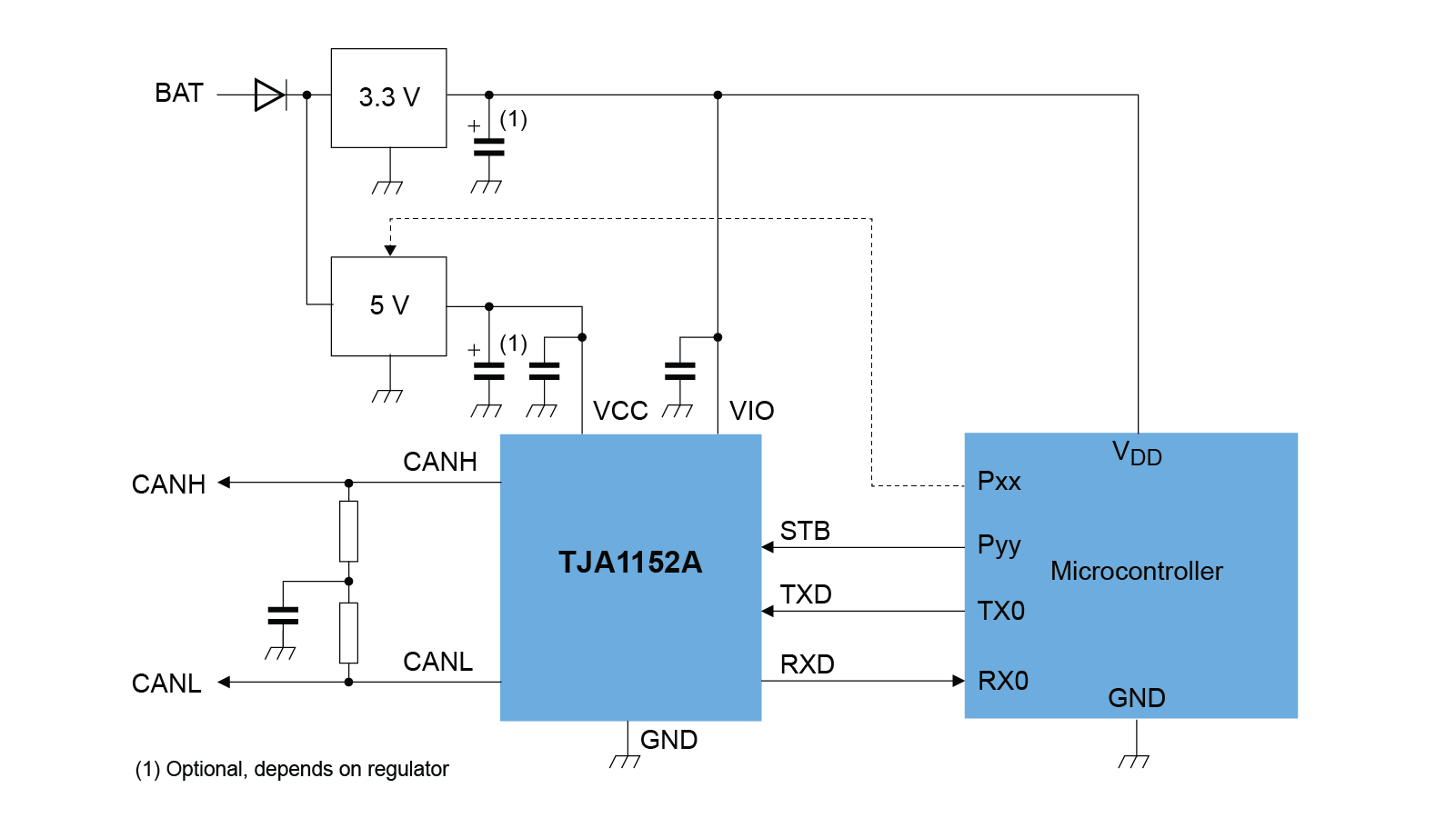

TJA1152 Application Block Diagram

TJA1152 Application Block Diagram

Features

General

  • The TJA1152A is a secure HS-CAN transceiver with Standby mode and a VIO supply pin. The VIO pin allows for direct interfacing with 3.3 V and 5 V microcontrollers.
  • The TJA1152B is a secure HS-CAN transceiver with Standby mode.
  • ISO 11898-1:2015, ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5 compliant
  • Operates in classical CAN and CAN FD systems with arbitration phase bit rate set at 125 kbit/s, 250 kbit/s or 500 kbit/s
  • For arbitration bit rates of 250 kbit/s and 500 kbit/s, the fast phase bit rate can be set to two or four times the arbitration bit rate
  • AEC-Q100 Rev-G qualified (grade 1)
  • Low electromagnetic emission (EME) and high electromagnetic immunity (EMI)
  • SO8 plastic small outline package

System Control and Diagnostic Features

  • Mode control via dedicated control pin STB
  • Overtemperature shutdown

Security Features

  • Spoofing protection
  • Flooding protection
  • Tamper protection

Predictable and Fail-Safe Behavior

  • Functional behavior predictable under all supply conditions
  • Transceiver disengages from bus when not powered (zero load)
  • Transmit data (TXD) dominant time-out function
  • Internal biasing of TXD and STB input pins

Protection

  • High ESD handling capability on the bus pins (8 kV HBM)
  • Bus pins protected against transients in automotive environments
  • Undervoltage detection on pins VCC and VIO
  • Thermally protected
