SCF5250|Integrated ColdFire® V2 Microprocessor | NXP Semiconductors

Integrated ColdFire® V2 Microprocessor

  • This page contains information on a product that is not recommended for new designs.

Product Details

Block Diagram

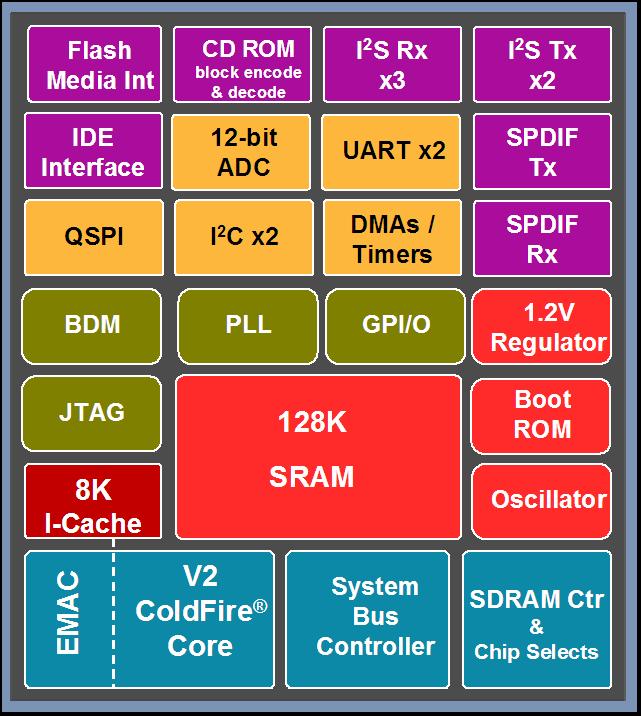

SCF5250 Block Diagram

 SCF5250 Block Diagram

Features

  • Coldfire V2 processor core operating at 120 MHz
  • eMAC
  • 8 KB direct mapped instruction cache
  • 128 KB static random access memory (SRAM) (two 64KB banks)
  • Operates from internal or external crystal oscillator
  • Supports 16-bit wide synchronous dynamic random access memory (SDRAM)
  • Debug module (background and real-time)
  • Two independent universal asynchronous receiver and transmitter(UARTs)
  • Two I²C modules
  • Queued serial peripheral interface (QSPI) (leader only)
  • Digital audio transmitter (SPDIF) and two receivers compliant with IEC958 audio protocol
  • CD-ROM and CD-ROM XA block decoding and encoding function
  • Two independent 16-bit timers
  • System integration (pulse-lock loop, software watchdog)
  • Four-channel direct memory access (DMA)
  • Six-channel 12-bit analog-to-digital converter (ADC)
  • IDE or SmartMedia™ interface
  • Flash memory card interface
  • GPIO
  • 1.2-volt core, 3.3-volt input/output
