The MPC8536E PowerQUICC® III is designed to deliver gigahertz-class complex application processing performance with advanced feature integration and high-speed connectivity for IP network and advanced media processing applications. It combines a robust e500 processor core, with enhanced peripherals and interconnect technology, to balance processor performance with I/O system throughput. The MPC8536E processor includes advanced energy management features that will enable next-generation embedded Internet media processing applications with energy efficiency levels under the environmental and governmental energy regulatory requirements.
The MPC8536E processor implements sophisticated power-saving modes for managing energy consumption in both dynamic and static power modes. Designers will be able to leverage these modes to efficiently match work accomplished with the correct level of energy consumed.
Access to the errata document for this device requires an NDA. Contact your local NXP® Sales Office or NXP Authorized Distributor.

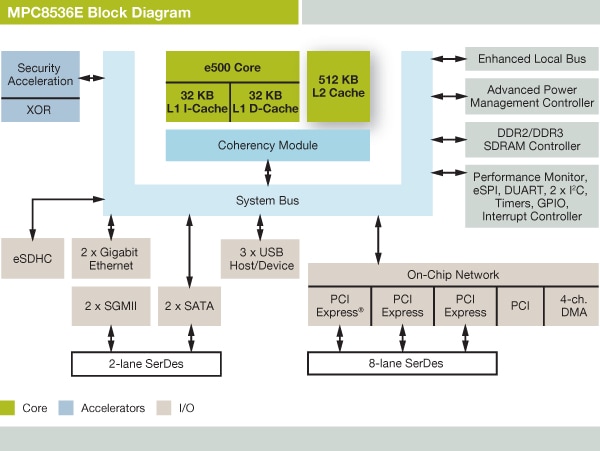

Features
e500 core, built on Power Architecture® technology, scaling up to 1.5 GHz
32 KB I/D L1 cache
512 KB L2 cache
64-/32-bit DDR2/DDR3 memory controller up to 667 MHz data rate
Integrated security engine
- DES, 3DES, MD-5, SHA-1/2, AES, RSA, RNG, Kasumi F8/F9 and ARC-4 encryption algorithms
High-speed interconnects
- 3 x PCI Express®
- PCI
Advanced power management controller
4 channel DMA controller
2 x I²C
DUART
eSPI and enhanced local bus
GPIO
2 x GbE with SGMII support
3 x USB
2 x SATA multiplexed with SGMII
SD/MMC interfaces
IEEE® 1588 support
783-pin FC-PBGA package
Buy/Parametrics
1-10 of 24 results
Exclude 24 NRND
Part | CAD Model | Status | Package Type | Package Termination Count | Core Type | Operating Frequency [Max] (MHz) | Core: Number of cores (SPEC) | L2 Cache (Max) (KB) | External Memory Supported | Ambient Operating Temperature (Min to Max) (℃) |
|---|---|---|---|---|---|---|---|---|---|---|
End of Life | BGA783 | 783 | — | — | — | — | — | — | ||
End of Life | BGA783 | 783 | — | — | — | — | — | — | ||
End of Life | BGA783 | 783 | — | — | — | — | — | — | ||
End of Life | BGA783 | 783 | — | — | — | — | — | — | ||
End of Life | BGA783 | 783 | — | — | — | — | — | — | ||
End of Life | BGA783 | 783 | e500 | 800 | 1 | 512 | DDR2 SDRAM | 0 to 105 | ||
End of Life | BGA783 | 783 | e500 | 1000 | 1 | 512 | DDR2 SDRAM | 0 to 105 | ||
End of Life | BGA783 | 783 | e500 | 1250 | 1 | 512 | DDR2 SDRAM | 0 to 105 | ||
End of Life | BGA783 | 783 | e500 | 1500 | 1 | 512 | DDR2 SDRAM | 0 to 105 | ||
End of Life | BGA783 | 783 | e500 | 1000 | 1 | 512 | DDR2 SDRAM | -40 to 105 |
