PowerQUICC® III Modular Development System

MPC8568EMDS
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

Archived content is no longer updated and is made available for historical reference only.

The MPC8568E Modular Development System is designed for hardware and software developers using the MPC8568E PowerQUICC® III family to accelerate development and testing, and improve time to market. The MPC8568E MDS enables:

  • Silicon bring-up/verification
  • Software/application development and support
  • Performance benchmarking
  • Customer evaluation

The MPC8568E MDS consists of multiple boards that provide a comprehensive development system—an MPC8568 processor board, a platform I/O board and several expansion modules, adding support for a TDM, ATM or PCI agent.

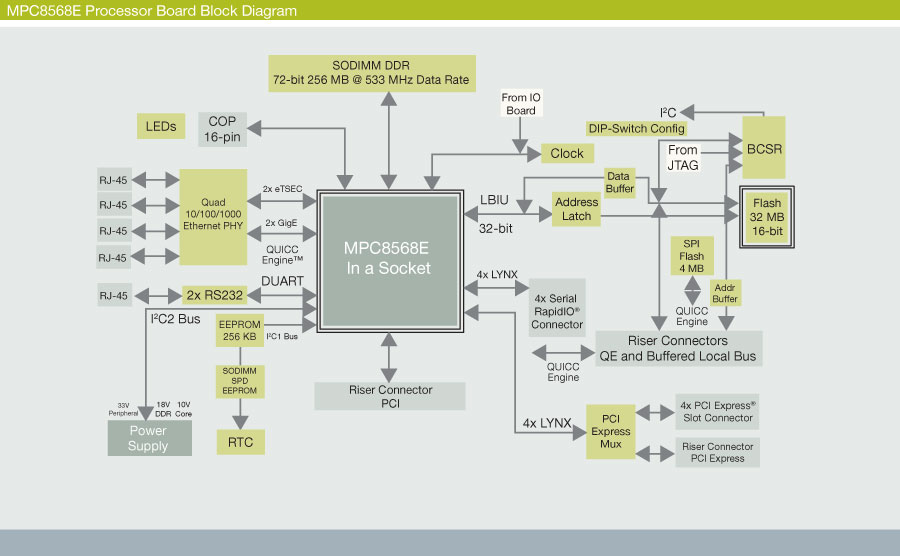

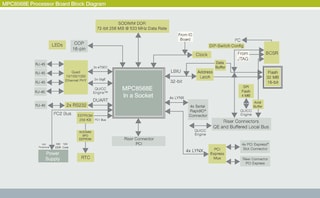

MPC8568E Processor Board

The MPC8568E Processor Board includes an MPC8568E processor running up to 1.33 GHz, along with circuitry to utilize the following:

  • 4x Gigabit Ethernet (GbE) and dual asynchronous receiver/transmitter (DUART)
  • PCI Express®
  • Peripheral component interconnect (PCI)
  • Serial RapidIO®
  • Double data rate (DDR) memory
  • Serial electrically erasable programmable read-only memory (EEPROM)
  • Control switches and light emitting diode (LED) indicators

Platform I/O Board (PIB)

The Platform I/O Board is an enablement platform allowing the user to add additional PHY or other modules for evaluation with the processor board (PB):

  • Supports up to four PCI-based PMC form factor slots
  • PMC off-the-shelf modules can be connected to the PB via the PIB
  • The PIB is an AdvancedTCA® form factor for users who want to install it into an AdvancedTCA chassis
  • Serial RapidIO®
  • The PIB includes support for:
    • 2x optical Gigabit Ethernet
    • 8x MII 10/100 Base-T Fast Ethernet
  • Supports the MPC83xx PB and all PMC modules provided by NXP®

PMC Expansion Modules

  • PQ-MDS-PCIEXP - Expansion module supporting multiple PCI Agents
  • PQ-MDS-PMCPCIE - Single-slot PMC to PCI agent connector to enable additional PCI-based boards for evaluation
  • PQ-MDS-QOC3 - Supports up to 4x 155 Mbps optical transceivers for evaluating the Utopia L2 /POS bus
  • PQ-MDS-T1 - Supports E1/T1, DS3, T3 I/F with an option of two POTS analog telephone lines
More

Product Details

Features

Memory

  • DDR2 on SODIMM and 533 MHz, 72-bit, 256 MB with 8-bit ECC support

Connectivity

  • PCI edge connector for agent mode with additional adapter (3.3 V and 5 V compatible)
  • PCI Express edge connector for agent mode with additional adapter
  • PCI host mode through PIB
  • Dual 10/100/1000 Mbit/s Ethernet ports for QUICC Engine® (UCC1 and UCC2)
  • Dual 10/100/1000 Mbit/s Ethernet ports for dual eTSEC
  • 4x SerDes connected to Serial RapidIO connector
  • 4x SerDes connected to PCI Express connectors through PCI Express MUX to support host or agent modes:
  • 4x PCI Express edge connector for agent mode can be plugged in a PC
  • 4x PCI Express slot connector for host mode accepts standard (off-the-shelf) PCI Express cards

Local Bus I/F:

  • 32-bit 64 MB SDRAM memory and 133 MHz soldered on board with parity support
  • 16-bit 32 MB NOR flash in a socket
  • Address latch, data, and control buffers to support slow devices on the PIB (and PMC boards)
  • FPGA BCSR

Debug

  • Debug port access via COP connector

Two I2C buses

  • Bus for 256 kb EEPROM, real-time clock (RTC), SODIMM SPD EEPROM, BCSR, and PIB

Three operation modes:

  • Stand-alone mode
  • PIB combined mode—plugged on the PIB
  • PCI mode—plugged into a PC as standard PC card (cost effective) through PCI or PCI Express

Support

  • Supports the MPC8568E, running up to 1.33 GHz at 1.1V core voltage in a 1023-pin TBGA 1 mm pitch package
  • PCI support—32-bit and 66 MHz

Components

  • Dual RS-232 transceiver connected to DUART

QUICC Engine functions supported

  • All QUICC Engine signals are available on PMC0 and PMC1 on the PIB
  • 8x TDM port with the PQ-MDS-T1 card on the PIB (on PMC0)
  • 2x DS3 port with the PQ-MDS-T1 card on the PIB (on PMC0)
  • 2x UTOPIA/POS Level 2, 8/16-bits, multi-
  • PHY multidevice with PQ-MDS-QOC3 cards on the PIB (on PMC0 and PMC1)
  • 6x 10/100 Mbit/s RMII Ethernet ports on the PIB
  • RoHS compliant
  • FCC compliant
  • CE compliant

Platform I/O Board Features

  • AdvancedTCA form factor:
    • Operates in an AdvancedTCA chassis or standalone
    • High-speed riser connectors to enable connections to the system board
    • Four sets of PMC connectors for PCI and QUICC Engine functions
  • QUICC Engine signals are split between two sets of PMC connectors
  • Two sets of PMC connectors can run simultaneous signals to two ATM modules
  • each one of the ATM modules has ADTEC connectors
  • One PCI bus—PCI operates as 32-bit PCI (on two PMC slots)
  • One RS422 port
  • Quad 10/100 Ethernet PHYs with RMII interface (eight available, only four used for MPC8568E)
  • Two 10/100/1000 Ethernet ports with fiber optics connectors
  • I2C for BCSR read and write
  • Logic analyzer connectors for all CE signals
  • Dual 48V input power supply
  • AdvancedTCA input connector (ZONE-1)
  • Backplane connectors (ZD Zone-2) for high-speed signals
