Integrated ColdFire® V4 Microprocessor

Product Details

Block Diagram

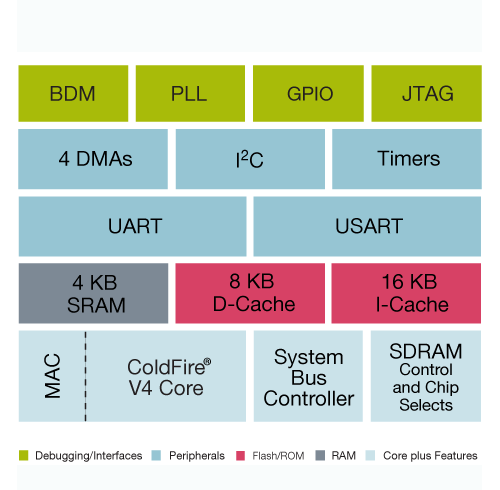

ColdFire MCF540X Microprocessor Block Diagram

Features

ColdFire^® V4 core-delivering up to 316 (Dhrystone 2.1) MIPS @ 220 MHz
Harvard memory architecture and branch cache acceleration logic
Fully code compatible with V2 and V3 ColdFire cores
16 KB instruction-cache, 8 KB data-cache
4 KB SRAM
Multiply-accumulate (MAC) with integer and fractional capabilities
Hardware integer divide unit
Integrated pheripherals
- DRAM controller: glueless interface to SDRAM or ADRAM
- Two universal asynchronous receiver/transmitter (UARTS), one that supports synchronous operations
- Four fully programmable direct memory access (DMA) channels
- Two 16-bit general-purpose timers
- I²C module
- Parallel I/O interface
- System integration module(SIM)
Pin-compatible with MCF5307
