MCF5445x Low Cost Evaluation Board

M54451EVB Active

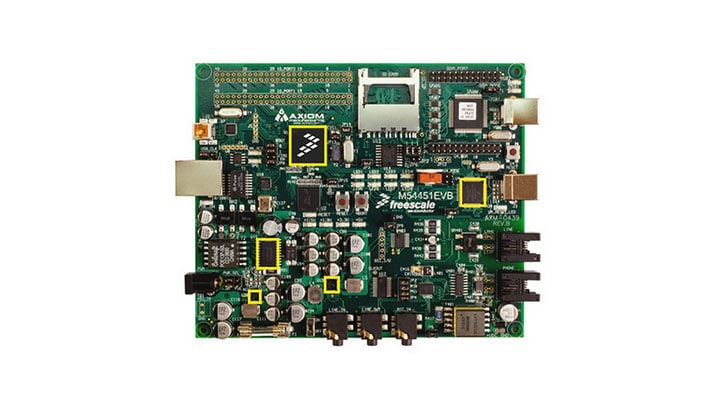

Roll over image to zoom in

The M54451EVB platform provides a low cost evaluation system for the NXP® MCF5445x ColdFire®® V4 embedded microprocessor family. The high performance, highly integrated, MCF54451 is the processor featured on this platform. This allows evaluation and development for the entire family on a single hardware platform.

Product Details

Supported Devices

Processors and Microcontrollers

ColdFire® V4 Processors

  • MCF5445X: 32-Bit Microprocessor with USB On-the-Go, Ethernet, PCI, DDR2/DDR controller and Encryption

Features

Microcontroller

  • MCF54451 MCU
  • 256 MAPBGA

Memory

  • 128 MB Mobile DDR
  • 16 MB Parallel flash
  • 8 MB Serial flash

Connectivity

  • USB OTG PHY on ULPI bus
  • 10/100TX Port on RMII bus w/ POE power supply
  • Stereo Audio codec w/ Line I/O and MIC 3.5mm Jacks
  • FXS codec w/ DAA Phone Connection
  • FXO codec w/ DAA Subscriber Line Connection
  • Support MCF52211 MCU w/ USB connection
  • On-Board USB BDM Development Port
  • SD Card connector
  • MCU I/O Port Connectors, 2 x 50 pins
  • External BDM / JTAG Port, 26-pin development port

Power Management

  • Regulated +3.3 V / 1.8 V / 1.5 V power supplies w/ indicators

User components

  • RESET and ABORT (IRQ7) push switches
  • 8 User and 2 10/100TX Status Indicators (LED)

Buy Options

M54451EVB-Image

Click to expand

  • M54451EVB
    Active

  • EVB PROTO BASE BOARD FOR MPC5647 FAMILY.

    • Supplied with 10/100 Ethernet cable
    • 5VDC Wall Adapter Power Supply
    • USB A/B cables
    • Quick start and Support CD media
  • For a quantity of 1
