Layerscape® LX2162A, LX2122A, LX2082A Processors
The LX2162A (also known as “LX2-Lite”) processor squeezes the processing capability of the popular LX2160A device into a package that is nearly one quarter the size. It combines the low power of the 16nm FinFET process technology and sixteen Arm® Cortex®-A72 cores with data path acceleration optimized for L2/3 packet processing, security offload and robust traffic management and quality of service.

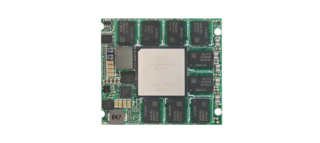

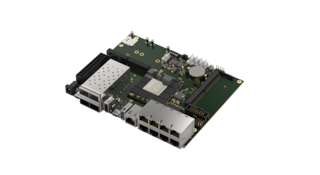

This advanced processor is suitable for small boards such as network interface cards, COM Express Type 7 modules, OCP3 mezzanine cards and custom daughter cards. It retains LX2160A’s 16 Cortex-A72 cores, 50 Gbit/s security engine and 88 Gbit/s data compression engine. It has 12 SerDes lanes at up to 25 Gbit/s, which can support four 25 Gbit Ethernet and x8 PCIe Gen3 simultaneously, among many other combinations.
For Edge Computing, this processor offers outstanding computing performance with a powerful packet offload and Ethernet controllers. In one device you can have high-end, high-speed communications, with low-speed peripherals such as sensors and the computing power to process and act upon all received information.
Layerscape processors are part of NXP's EdgeVerse™ edge computing platform.
Product Details

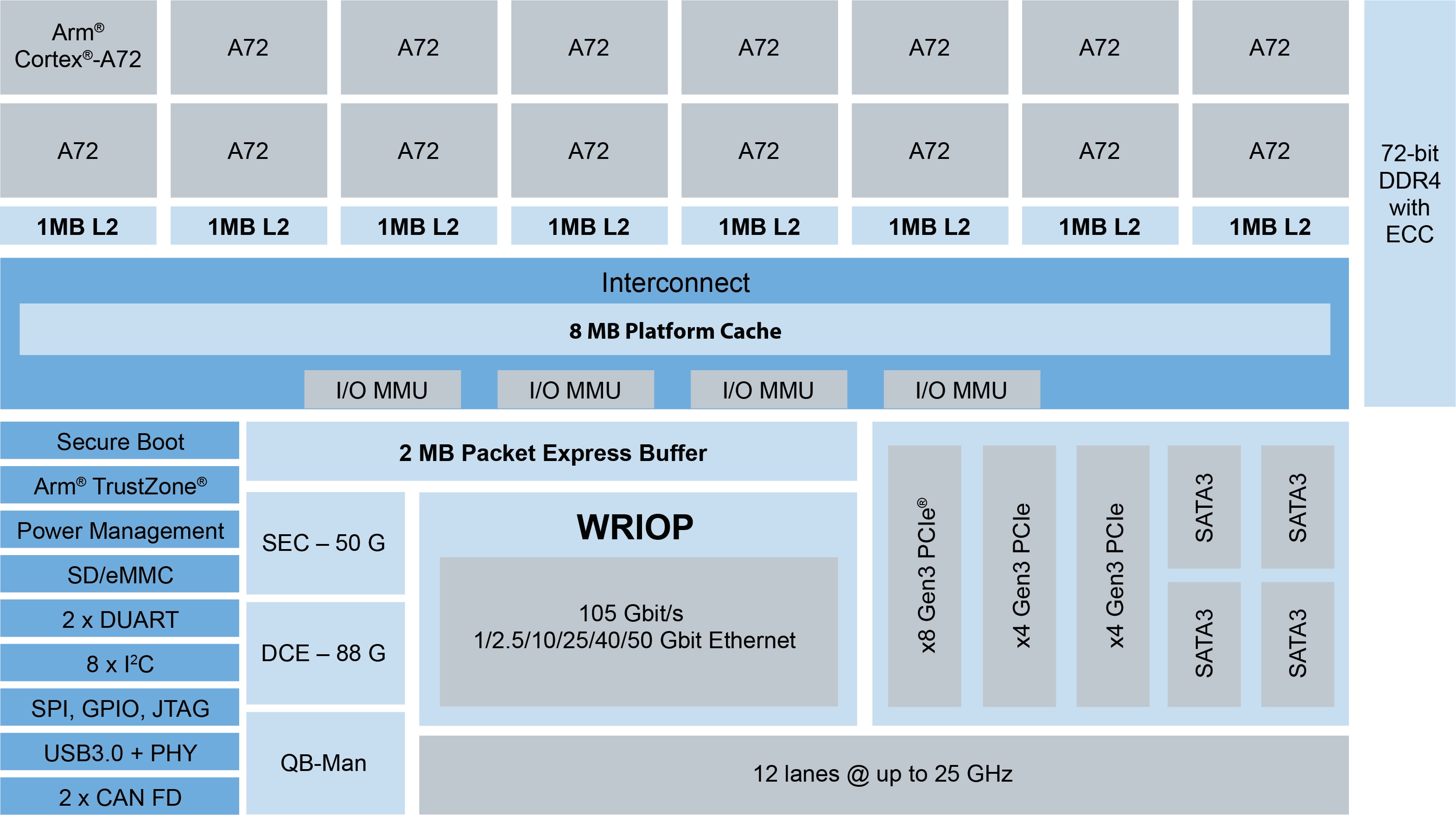

Features
- 16-64-bit Armv8 Cortex-A72 CPU cores, running up to 2.0 GHz
- 16 MB cache
- 12 SerDes lanes, operating up to 25 GHz
- Up to 12 Ethernet ports
- Supported Ethernet speeds include 1, 2.5, 10, 25, 40 and 50 Gbit/s
- 105 Gbit/s Layer 2 Ethernet switch
- Up to 12 PCIe Gen3 lanes, supporting three ports, as wide as x8
- 50 Gbit/s security accelerator
- 88 Gbit/s data compression/decompression engine
- Package: 23x23mm, 1150 pins
- DDR4 72b including ECC, to 2900 MT/s, maximum capacity of 32 GB
Comparison Table
Layerscape LX2162A Family Members
| LX2162A | LX2122A | LX2082A | |
|---|---|---|---|
| Cores | 16 | 12 | 8 |
| L2 cache | 8MB | 6MB | 8MB |
| SerDes | 12 lanes at up to 25 GHz | ||
| PCIe® | 3 x Gen3, max width of x8 | ||
| DDR | DDR4, 2900 MT/s, 32 GB capacity | ||
| Platform cache + PEB | 10MB | ||
| Ethernet | 105 Gbit/s L2 switch, supporting combinations of 12 ports of 1, 2.5, 10, 25, 40 and 50 Gbit Ethernet | ||
| Security | 50 Gbit/s | ||
| Data Compression Engine | 88 Gbit/s | ||
| Package | 23 x 23 mm, 1150 pins | ||
Related products
Dual High-Speed USB 2.0 Double-Pole Double-Throw Analog Switch
USB PD and Type-C Current-Limited Power Switch
Multi-Output DC/DC Regulator
Eight-Channel I²C-Bus Multiplexer with Reset
3400-3600 MHz, 29 dB, 5 W Avg. Airfast® Power Amplifier Module
Buy/Parametrics
8 results
Include 0 NRND
Part | Order | CAD Model | Silicon Rev | Family | Status | Development Tools | Qualification tier | Budgetary Price excluding tax | Package Termination Count | Package Type | Package Pitch (mm) | Core Type | Core: Number of cores (SPEC) | Operating Frequency [Max] (MHz) | Typical Power | Cache (KB) | L1 Cache (KB) | L2 Cache (Max) (KB) | SRAM (kB) | External Memory Supported | DRAM frequency (max)(MHz) | SPI | QSPI | UART | I2C | USB Controllers | CAN | Ethernet Ports | Ethernet Type | PCIe | PCIe version | SATA | Encryption | Watchdog timer | Timers | Debug & Trace | Ambient Operating Temperature (Min to Max) (℃) | Junction Temperature (Min to Max) (℃) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Rev 2 | LX2162 family | Active | LX2160A-RDB-B | 5-year Indoor | 100 @ US$234.07 | 1150 | FBGA1150 | 0.65 | Arm Cortex-A72 | 8 | 2000 | 20.1 | 32, 48 | 32, 48 | 8192 | 256 | FlexSPI, L2 CACHE, SDRAM DDR4 RDIMM, SDRAM DDR4 UDIMM | 2900 | 3 | 2 | 4 | 8 | 1 | 2 | 12 | 10G, 1G, 25 Gbit/s, 50 Gbit/s | 3 | PCIe 3.0 | 4 x SATA 3.0 | Y | Y | 2 | JTAG | 5 to 105 | 5 to 105 | |||
Rev 2 | LX2162 family | Active | LX2160A-RDB-B | 5-year Indoor | 100 @ US$234.07 | 1150 | FBGA1150 | 0.65 | Arm Cortex-A72 | 8 | 2000 | 20.1 | 32, 48 | 32, 48 | 8192 | 256 | FlexSPI, L2 CACHE, SDRAM DDR4 RDIMM, SDRAM DDR4 UDIMM | 2900 | 3 | 2 | 4 | 8 | 1 | 2 | 12 | 10G, 1G, 25 Gbit/s, 50 Gbit/s | 3 | PCIe 3.0 | 4 x SATA 3.0 | N | Y | 2 | JTAG | 5 to 105 | 5 to 105 | |||
Rev 2 | LX2162 family | Active | LX2160A-RDB-B | 5-year Indoor | 100 @ US$265.70 | 1150 | FBGA1150 | 0.65 | Arm Cortex-A72 | 12 | 2000 | 21.6 | 32, 48 | 32, 48 | 6144 | 256 | FlexSPI, L2 CACHE, SDRAM DDR4 RDIMM, SDRAM DDR4 UDIMM | 2900 | 3 | 2 | 4 | 8 | 1 | 2 | 12 | 10G, 1G, 25 Gbit/s, 50 Gbit/s | 3 | PCIe 3.0 | 4 x SATA 3.0 | Y | Y | 2 | JTAG | 5 to 105 | 5 to 105 | |||
Rev 2 | LX2162 family | Active | LX2160A-RDB-B | 5-year Indoor | 100 @ US$253.05 | 1150 | FBGA1150 | 0.65 | Arm Cortex-A72 | 12 | 2000 | 21.6 | 32, 48 | 32, 48 | 6144 | 256 | FlexSPI, L2 CACHE, SDRAM DDR4 RDIMM, SDRAM DDR4 UDIMM | 2900 | 3 | 2 | 4 | 8 | 1 | 2 | 12 | 10G, 1G, 25 Gbit/s, 50 Gbit/s | 3 | PCIe 3.0 | 4 x SATA 3.0 | Y | Y | 2 | JTAG | 5 to 105 | 5 to 105 | |||
Rev 2 | LX2162 family | Active | LX2160A-RDB-B | 5-year Indoor | 100 @ US$253.05 | 1150 | FBGA1150 | 0.65 | Arm Cortex-A72 | 12 | 2000 | 21.6 | 32, 48 | 32, 48 | 6144 | 256 | FlexSPI, L2 CACHE, SDRAM DDR4 RDIMM, SDRAM DDR4 UDIMM | 2900 | 3 | 2 | 4 | 8 | 1 | 2 | 12 | 10G, 1G, 25 Gbit/s, 50 Gbit/s | 3 | PCIe 3.0 | 4 x SATA 3.0 | N | Y | 2 | JTAG | 5 to 105 | 5 to 105 | |||
Rev 2 | LX2162 family | Active | LX2160A-RDB-B | 5-year Indoor | 100 @ US$287.25 | 1150 | FBGA1150 | 0.65 | Arm Cortex-A72 | 16 | 2000 | 23.9 | 32, 48 | 32, 48 | 8192 | 256 | FlexSPI, L2 CACHE, SDRAM DDR4 RDIMM, SDRAM DDR4 UDIMM | 2900 | 3 | 2 | 4 | 8 | 1 | 2 | 12 | 10G, 1G, 50 Gbit/s | 3 | PCIe 3.0 | 4 x SATA 3.0 | Y | Y | 2 | JTAG | 5 to 105 | 5 to 105 | |||
Rev 2 | LX2162 family | Active | LX2160A-RDB-B | 5-year Indoor | 100 @ US$273.57 | 1150 | FBGA1150 | 0.65 | Arm Cortex-A72 | 16 | 2000 | 23.9 | 32, 48 | 32, 48 | 8192 | 256 | FlexSPI, L2 CACHE, SDRAM DDR4 RDIMM, SDRAM DDR4 UDIMM | 2900 | 3 | 2 | 4 | 8 | 1 | 2 | 12 | 10G, 1G, 50 Gbit/s | 3 | PCIe 3.0 | 4 x SATA 3.0 | Y | Y | 2 | JTAG | 5 to 105 | 5 to 105 | |||
Rev 2 | LX2162 family | Active | LX2160A-RDB-B | 5-year Indoor | 100 @ US$273.57 | 1150 | FBGA1150 | 0.65 | Arm Cortex-A72 | 16 | 2000 | 23.9 | 32, 48 | 32, 48 | 8192 | 256 | FlexSPI, L2 CACHE, SDRAM DDR4 RDIMM, SDRAM DDR4 UDIMM | 2900 | 3 | 2 | 4 | 8 | 1 | 2 | 12 | 10G, 1G, 50 Gbit/s | 3 | PCIe 3.0 | 4 x SATA 3.0 | N | Y | 2 | JTAG | 5 to 105 | 5 to 105 |
