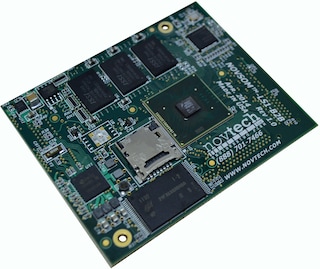

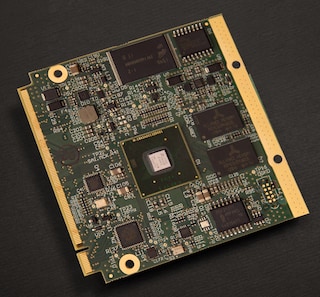

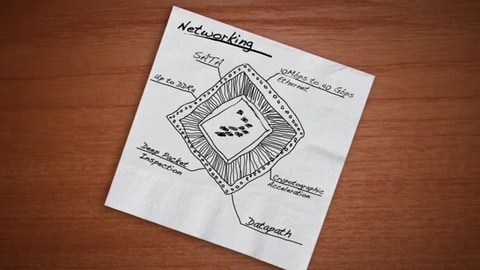

The LS1 family, which includes the LS1021A communications processor, is built on Layerscape architecture, the industry's first software-aware, core-agnostic networking architecture to offer unprecedented efficiency and scale.

A member of the value-performance tier, the LS1021A processor provides extensive integration and power efficiency for fanless, small form factor enterprise networking applications. Incorporating dual Arm^® Cortex^®-A7 cores running up to 1.2 GHz, the LS1021A processor is engineered to deliver CoreMark^® performance of over 7,000, as well as virtualization support, advanced security features and the broadest array of high-speed interconnects and optimized peripheral features ever offered in a sub-3 W processor.

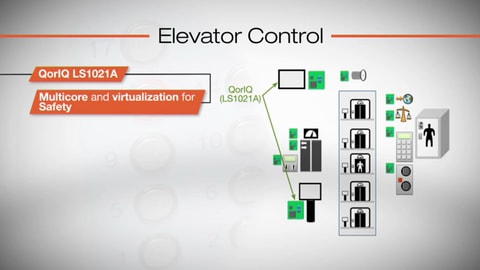

The LS1021A processor features an integrated LCD controller, CAN controller for implementing industrial protocols, DDR3L/4 running up to 1600 MHz, integrated security engine and QUICC Engine^® and ECC protection on both L1 and L2 caches. The LS1021A processor is pin- and software-compatible with the LS1020A and LS1022A processors.

Layerscape processors are part of NXP's EdgeVerse™ edge computing platform.

Data Sheet

Reference Manual

Product Details

Block Diagram

LS1021A Processor Block Diagram

Get diagram PDF

Features

Core Complex

Dual Arm v7 Cortex^{^®}-A7 32-bit cores, each supporting dual precision floating point and NEON SIMD module running up to 1.2 GHz
32 KB instruction and data L1 cache with single bit error detection and correction, ECC protection on both instruction and data caches
Up to 512 KB coherent L2 cache with single bit error detection and correction, ECC protection

Networking Elements

SerDes 4 lanes at up to 6 GHz
- Supports SGMII, PCIe^{^®} and SATA
- Ethernet
Three virtualized enhanced triple-speed Ethernet controllers (VeTSEC) supporting SGMII (up to 2), RGMII, RMII, MII
- Support IEEE^® 1588
Twin PCIe Gen2 controllers
- Supporting up to 5G/tps in 1-lane, 2-lane, or 4-lane (with a single controller)
- MSI supported
Four FlexCAN controllers

Accelerators and Memory Control

DDR memory controller supports DDR3L and DDR4 at up to 1600 MHz
- 8-bit, 16-bit, 32-bit memory supported, with ECC support
Security Engine (SEC5.4) features five cryptographic hardware acceleration modules, true random number generator, hashing and CRC unit

Basic Peripherals and Interconnect

Arm Cache Coherent Interconnect (CCI400)
Arm AMBA 4 MPCore Virtualization
Integrated Flash controller supporting 16-bit interface
QuadSPI Flash controller
USB3.0 superspeed controller with integrated PHY, supporting OTG, Host and Device modes
USB2.0 controller supporting OTG, Host and Device modes
SD/MMC controller
SATA3 controller supporting 6G/tps
3x I²C
2x SPI

Additional Features

LCD display controller

We recommend the following Power Management IC for LS1021A Processors

Select the specifications below to find the perfect fit for your design

Show entries

Search:

PMIC Part Number	Description	External Memory Voltage (V)	Ambient Operating Temperature (Min-Max) (°C)	Qualification Tier
		1.35	-40 to 105	Industrial
MC34VR500V1ES	Regulator, Buck, Quad with up to 4.5A Output and Triple User-programmable LDOs, QFN 56	1.35	-40 to 105	Industrial
MC34VR500V2ES	Regulator, Buck, Quad with up to 4.5A Output and Factory programmed LDOs, QFN 56	1.35	-40 to 105	Industrial

Showing 1 to 2 of 2 entries

Previous1Next

Buy/Parametrics

Part Show description	Silicon Rev	Family	Status	Development Tools	Qualification tier	Budgetary Price excluding tax	Package Termination Count	Package Type	Package Pitch (mm)	Core Type	Core: Number of cores (SPEC)	Operating Frequency [Max] (MHz)	Typical Power	Cache (KB)	L1 Cache (KB)	L2 Cache (Max) (KB)	SRAM (kB)	External Memory Supported	DRAM frequency (max)(MHz)	GPU 2D / GPU 3D	Serial Audio Interface (SAI)	I²S	SPI	QSPI	UART	I²C	USB Controllers	CAN	Ethernet Ports	Ethernet Type	PCIe	PCIe version	SATA	Encryption	Watchdog timer	Timers	Debug & Trace	Junction Temperature (Min to Max) (℃)
LS1021ASE7HNB Data Sheet	Rev 2	QorIQ LS1021A	Active	TWR-LS1021A	Industrial	100 @ US$30.18	525	FBGA525	0.8	Arm Cortex-A7	2	800	1.97	32	32	512	128	DDR3L SDRAM, DDR4 SDRAM	1300	2D ACE	4	4	2	1	10	3	2	4	3	100M, 10M, 1G	2	PCIe 2.0	1 x SATA 3.0	Y	Y	8	JTAG	0 to 105
LS1021ASE7KQB Data Sheet	Rev 2	QorIQ LS1021A	Active	TWR-LS1021A	Industrial	100 @ US$31.53	525	FBGA525	0.8	Arm Cortex-A7	2	1000	2.09	32	32	512	128	DDR3L SDRAM, DDR4 SDRAM	1600	2D ACE	4	4	2	1	10	3	2	4	3	100M, 10M, 1G	2	PCIe 2.0	1 x SATA 3.0	Y	Y	8	JTAG	0 to 105
LS1021ASE7MQB Data Sheet	Rev 2	QorIQ LS1021A	Active	TWR-LS1021A	Industrial	100 @ US$32.95	525	FBGA525	0.8	Arm Cortex-A7	2	1200	2.14	32	32	512	128	DDR3L SDRAM, DDR4 SDRAM	1600	2D ACE	4	4	2	1	10	3	2	4	3	100M, 10M, 1G	2	PCIe 2.0	1 x SATA 3.0	Y	Y	8	JTAG	0 to 105
LS1021ASN7HNB Data Sheet	Rev 2	QorIQ LS1021A	Active	TWR-LS1021A	Industrial	100 @ US$29.28	525	FBGA525	0.8	Arm Cortex-A7	2	800	1.97	32	32	512	128	DDR3L SDRAM, DDR4 SDRAM	1300	2D ACE	4	4	2	1	10	3	2	4	3	100M, 10M, 1G	2	PCIe 2.0	1 x SATA 3.0	N	Y	8	JTAG	0 to 105
LS1021ASN7KQB Data Sheet	Rev 2	QorIQ LS1021A	Active	TWR-LS1021A	Industrial	100 @ US$30.61	525	FBGA525	0.8	Arm Cortex-A7	2	1000	2.09	32	32	512	128	DDR3L SDRAM, DDR4 SDRAM	1600	2D ACE	4	4	2	1	10	3	2	4	3	100M, 10M, 1G	2	PCIe 2.0	1 x SATA 3.0	N	Y	8	JTAG	0 to 105
LS1021ASN7MQB Data Sheet	Rev 2	QorIQ LS1021A	Active	TWR-LS1021A	Industrial	100 @ US$31.99	525	FBGA525	0.8	Arm Cortex-A7	2	1200	2.14	32	32	512	128	DDR3L SDRAM, DDR4 SDRAM	1600	2D ACE	4	4	2	1	10	3	2	4	3	100M, 10M, 1G	2	PCIe 2.0	1 x SATA 3.0	N	Y	8	JTAG	0 to 105
LS1021AXE7HNB	Rev 2	QorIQ LS1021A	Active	TWR-LS1021A	Industrial	100 @ US$33.00	525	FBGA525	0.8	Arm Cortex-A7	2	800	1.97	32	32	512	128	DDR3L SDRAM, DDR4 SDRAM	1300	2D ACE	4	4	2	1	10	3	2	4	3	100M, 10M, 1G	2	PCIe 2.0	1 x SATA 3.0	Y	Y	8	JTAG	-40 to 105
LS1021AXE7KQB Data Sheet	Rev 2	QorIQ LS1021A	Active	TWR-LS1021A	Industrial	100 @ US$34.69	525	FBGA525	0.8	Arm Cortex-A7	2	1000	2.09	32	32	512	128	DDR3L SDRAM, DDR4 SDRAM	1600	2D ACE	4	4	2	1	10	3	2	4	3	100M, 10M, 1G	2	PCIe 2.0	1 x SATA 3.0	Y	Y	8	JTAG	-40 to 105
LS1021AXE7MQB Data Sheet	Rev 2	QorIQ LS1021A	Active	TWR-LS1021A	Industrial	100 @ US$36.25	525	FBGA525	0.8	Arm Cortex-A7	2	1200	2.14	32	32	512	128	DDR3L SDRAM, DDR4 SDRAM	1600	2D ACE	4	4	2	1	10	3	2	4	3	100M, 10M, 1G	2	PCIe 2.0	1 x SATA 3.0	Y	Y	8	JTAG	-40 to 105
LS1021AXN7HNB Data Sheet	Rev 2	QorIQ LS1021A	Active	TWR-LS1021A	Industrial	100 @ US$32.21	525	FBGA525	0.8	Arm Cortex-A7	2	800	1.97	32	32	512	128	DDR3L SDRAM, DDR4 SDRAM	1300	2D ACE	4	4	2	1	10	3	2	4	3	100M, 10M, 1G	2	PCIe 2.0	1 x SATA 3.0	N	Y	8	JTAG	-40 to 105
