NXP Freedom Development Platform for K32 L3 MCUs

FRDM-K32L3A6

Roll over image to zoom in

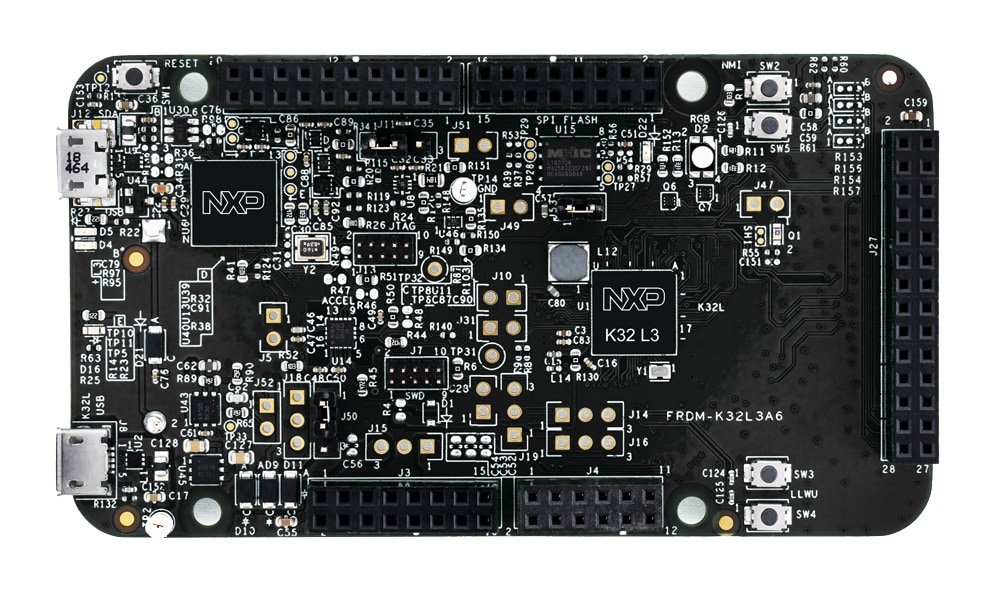

The FRDM-K32L3A6 development board consists of the K32L3A6 device with a 32-Mbit external serial flash, FXOS8700 accelerometer/magnetometer, visible light sensor, SDHC circuit, general purpose LEDs, and general purpose push buttons in the popular Freedom board form-factor.

Block Diagram

Choose a diagram:

FRDM-K32L3A6 Schematic

FRDM-K32L3A6 Schematic

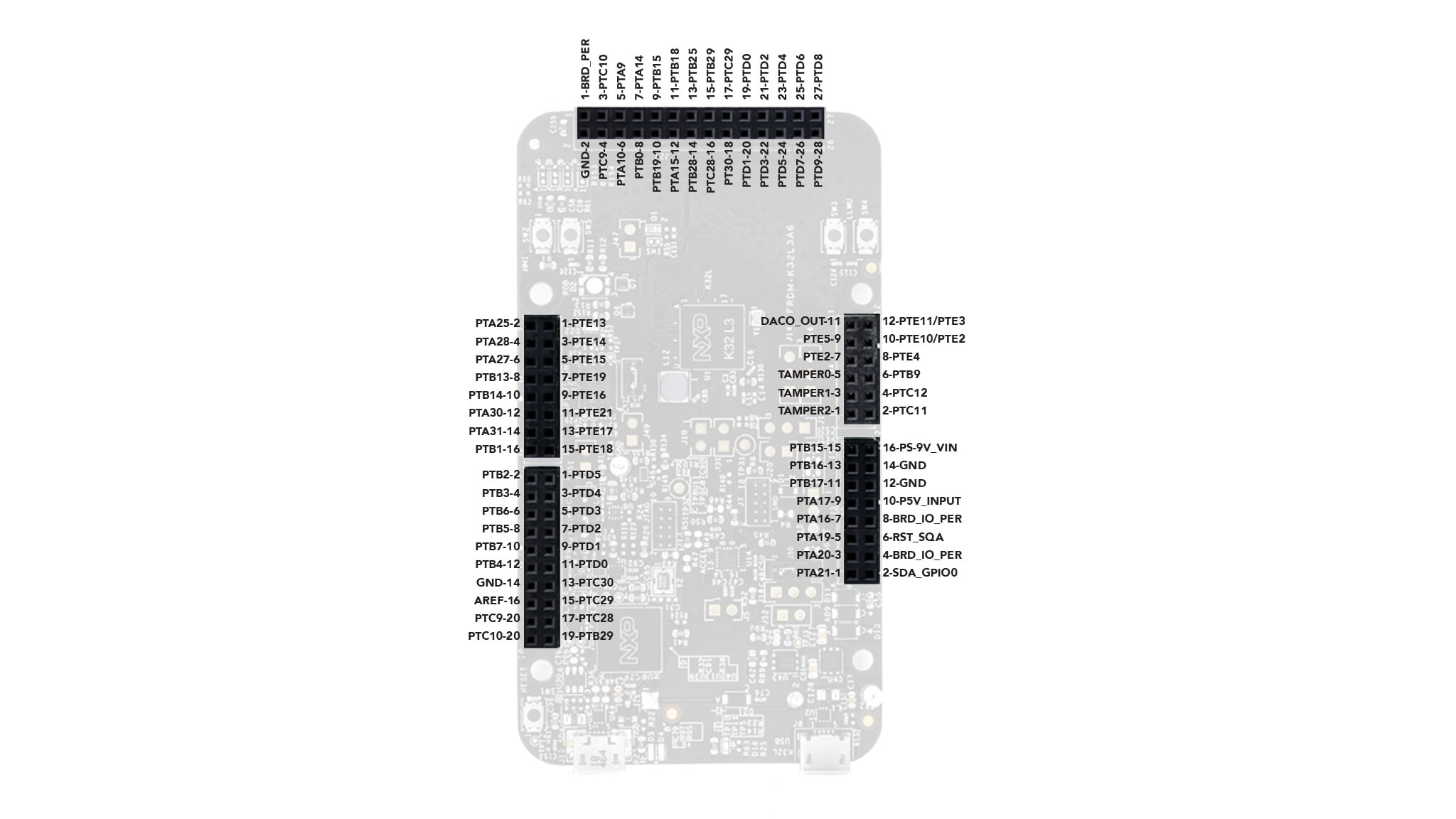

FRDM-K32L3A6 Callout

FRDM K32L3A6 CALLOUT NEW1
Get diagram PDF

Supported Devices

Processors and Microcontrollers

K32 L Series Arm Cortex-M4/M0+

  • K32-L3: NXP’s Energy Efficient Cortex-M4 MCU with Cortex-M0+ and Advanced Security

Features

K32L3A60VPJ1A

  • 72 MHz Arm® Cortex®-M4 and Cortex-M0
  • 1.25 MB Flash
  • 384B SRAM
  • Secure boot/update capability

Power Management

  • Four selectable power sources including USB connector
  • DC-DC converter with Buck and Bypass operation modes
  • Jumpers and trace cuts enable accurate core current measurements

USB

  • Full-speed USB module with device capability and built-in transceiver

Secure Digital Host Controller (SDHC)

  • SDHC card slot supported

Serial Flash Memory

  • 4 MB serial flash memory with SPI interface

Accelerator + Magnetometer Combo Sensor

  • Six-axis accelerometer with integrated magnetometer
    Note: Rev C and later will not populate this sensor

Visible Light Sensor

  • Phototransistor connected to the ADC input channel for evaluating the ADC

User Application LEDs

  • One RGB LED and one red LED controlled by GPIO

OpenSDA serial and debug

  • Includes an open-source hardware design, an open-source DAPLink bootloader, and debug CMSIS-DAP interface software and bridges serial and debug communications between USB host and an embedded target processor

More

Buy Options

FRDM-K32L3A6-Image

Click to expand

  • FRDM-K32L3A6
    Active

  • NXP Freedom Development Platform for K32 L3 MCUs.

    • One FRDM-K32L3A6 development board
    • One USB cable
  • $40.25 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
