Evaluation Board for TJA1128 LIN Mini System Basis Chip

TJA1128EVB Active

Roll over image to zoom in

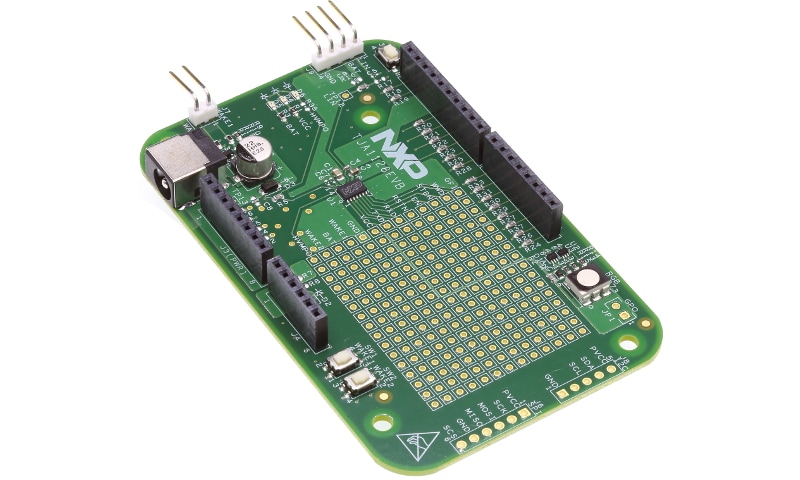

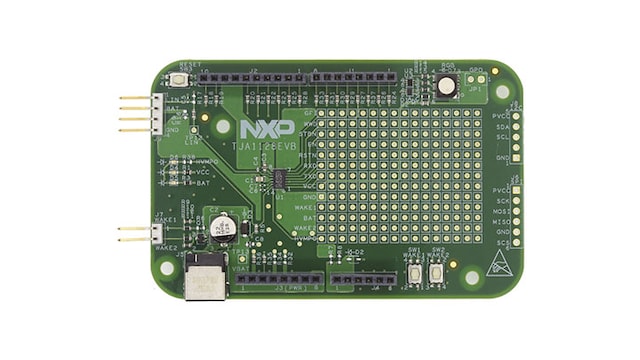

The TJA1128EVB is an evaluation board for the TJA1128 LIN mini system basis chip as a hardware plug-in board (shield) with standards-based form factor compatible with Arduino® UNO pin layout, that enables rapid prototyping with a wide range of microcontroller development boards.

For easy LIN follower prototyping, this board features a LIN transceiver, a low-dropout voltage regulator (LDO), a window watchdog and two WAKE inputs. Microcontroller board compatibility to:

  • S32K142EVB
  • S32K144EVB

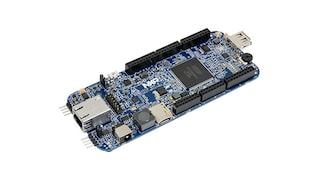

  • DEVKIT-MPC5748G
  • FRDM-KEAZ128

Supported Devices

Interfaces

Automotive LIN Solutions

  • TJA1128: LIN Mini System Basis Chip

Features

LIN Mini SBC TJA1128G

  • Low-dropout voltage regulator (5V)
  • Window watchdog and reset input/output
  • 2 WAKE inputs
  • General-purpose input and high-voltage multipurpose output

Connectivity

  • LIN connector
  • WAKE connector
  • Arduino® UNO footprint-compatible shield
  • Easy access to TJA1128G pins

On-Board Application Circuit Options

  • Cyclic sampled wake-up on WAKE1 and WAKE2
  • Continuous wake-up detection on WAKE1 and WAKE2
  • Battery supply voltage monitor

Size

  • Small form factor

General Specifications

  • Customer application field

Components

  • WAKE connector
  • WAKE push buttons
  • Reset button
  • Power LED indicator
  • VCC LED indicator
  • RGB LED

Buy Options

TJA1128EVB-Image

Click to expand

  • TJA1128EVB
    Active

  • Evaluation Board for TJA1128 LIN Mini System Basis Chip.

    • TJA1128EVB
    • Connector for power input/output
  • $146.15 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
