TJA1103 Automotive Ethernet 100BASE-T1 PHY Evaluation Board

TJA1103EVB Active

Roll over image to zoom in

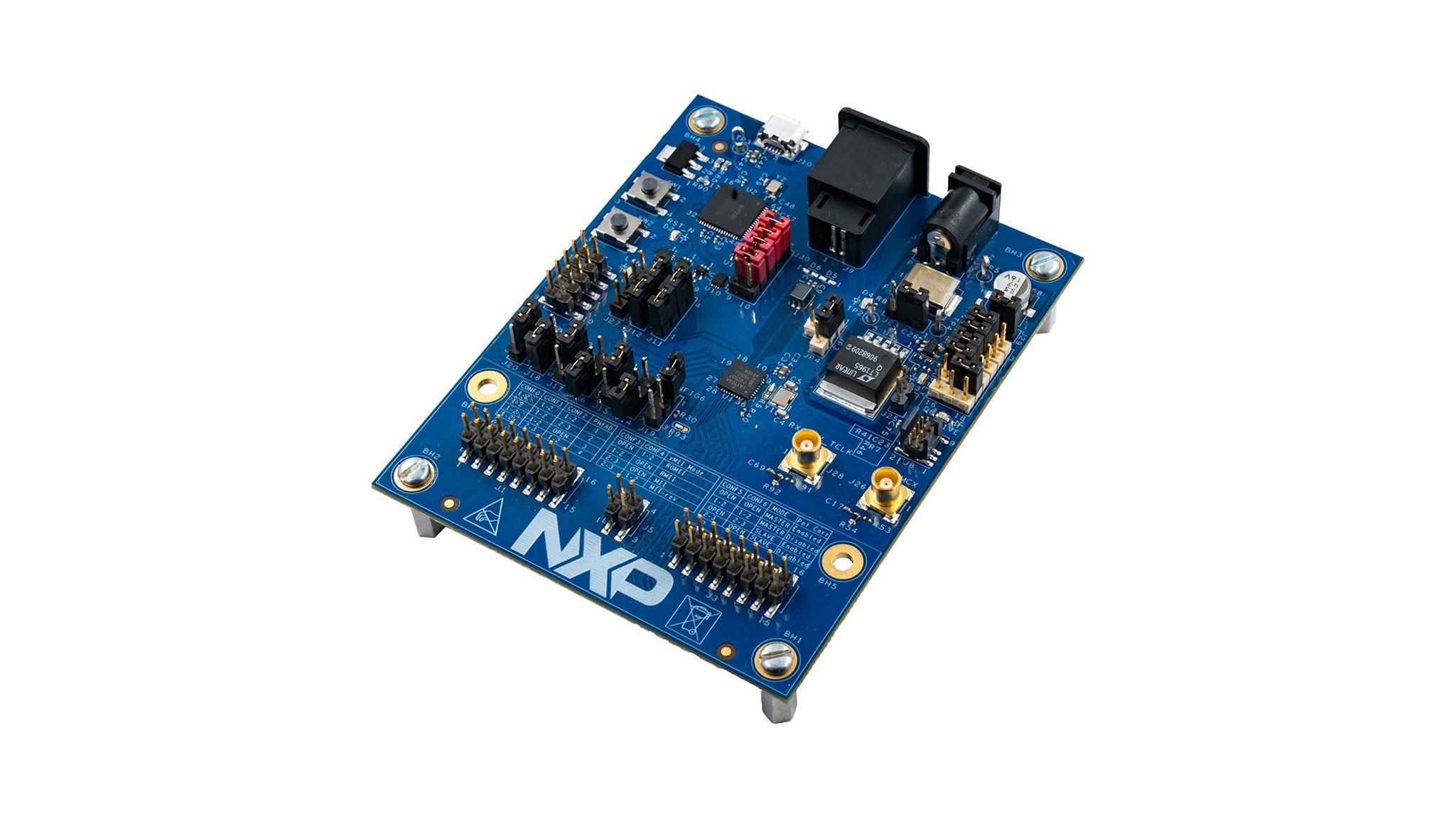

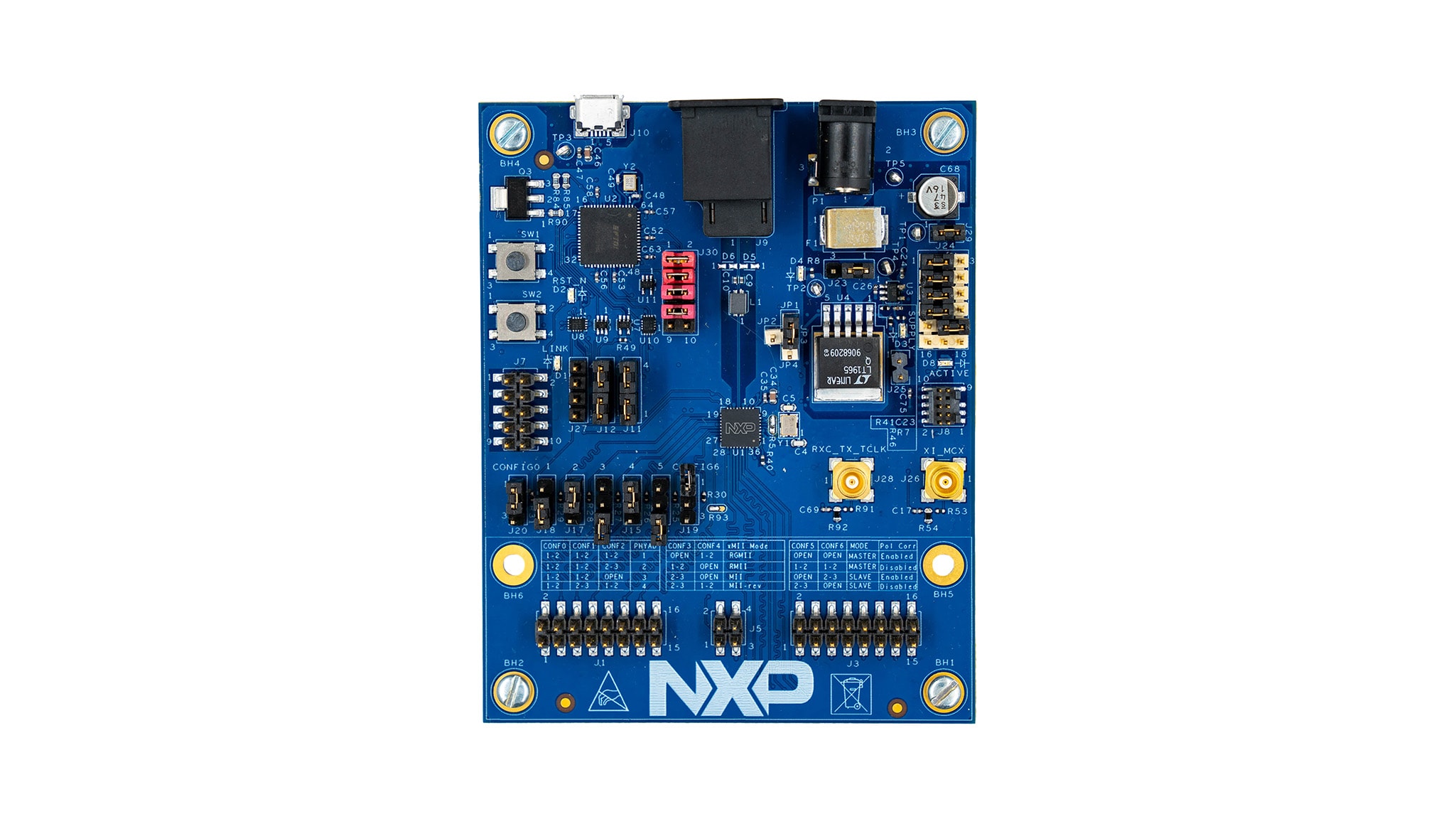

The TJA1103EVB evaluation board is a low-cost hardware development tool that supports the functional evaluation of the 100BASE-T1 Ethernet PHY TJA1103.

To flexibly adapt to different application use cases, all configuration options can be selected via jumpers and all logic interfaces can be accessed via pin headers.

Supported Devices

Interfaces

Automotive Ethernet PHYs

  • TJA1103: TJA1103, ASIL B Compliant Automotive Ethernet 100BASE-T1 PHY Transceiver

Features

Connectivity

  • 100BASE-T1 Automotive Ethernet

General Specifications

  • Quick functional evaluation of TJA1103
  • Simple chip configuration
  • 40-pin standard header (2.54 mm pitch) to Host Controller MII
  • Config pin strapping jumper settings

Miscellaneous

  • Chip status report via onboard LEDs

Buy Options

TJA1103EVB-Image

Click to expand

  • TJA1103EVB
    Active

  • Evaluation Board for TJA1103 100BASE-T1 PHY.

  • Kit Contains:

    • 1x TJA1103 customer evaluation board
    • 1x Unshielded twisted pair (UTP) cable (Automotive grade)

    Note: An NDA is required in order to access the TJA1103EVB documentation.

  • $276.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 5
    • Shipping: Normally ships 1-2 business days
ADD TO CART
