Evaluation Kit - 33912, LIN SBC, DC Motor Pre-Driver

KIT33912G5DGEVME
Active

Roll over image to zoom in

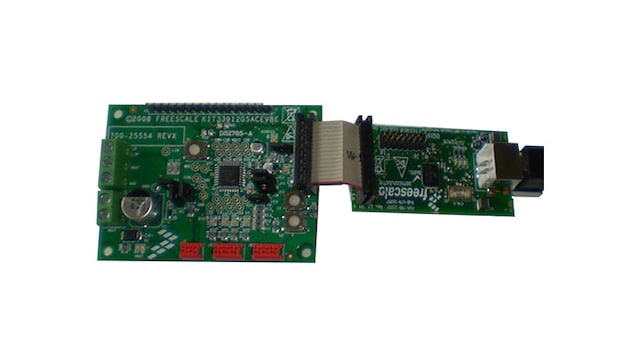

The evaluation kit utilizes a USB dongle interface board in support of the 33912, which is a Serial Peripheral Interface (SPI) -controlled System Basis Chip (SBC), combining many frequently used functions in an MCU-based system, plus a Local Interconnect Network (LIN) transceiver. The 33912 has a 5.0 V - 50 mA low dropout regulator with full protection and reporting features. The device provides full SPI-readable diagnostics and a selectable timing watchdog for detecting errant operation. The LIN Protocol Specification 2.0 and 2.1 ('G5AC) compliant LIN transceiver has waveshaping circuitry that can be disabled for higher data rates.

Two 60 mA high side switches and two 160 mA low side switches with output protection are available for driving resistive and inductive loads. All outputs can be pulse-width modulated (PWM).

This evaluation kit may be used with the KITUSBSPIDGLEVME.

Product Details

Supported Devices

Interfaces

Automotive LIN Solutions

  • MC33910: LIN SBC with 2 x 60 mA High Side Drivers
  • MC33911: LIN System Basis Chip with DC Motor Predriver
  • MC33912: LIN SBC with DC Motor Predriver and Current Sense

Features

General Specifications

  • Configurable window watchdog

Interfaces

  • Full-duplex SPI interface at frequencies up to 4 MHz
  • USB dongle board interface to SPI port of MC33910, MC33911, and MC33912

Power Management

  • Four high-voltage analog/logic Inputs
  • 5.0 V low drop regulator with fault detection and low voltage reset (LVR) circuitry
  • Switched/protected 5.0 V output (used for Hall sensors)

Components

  • LIN transceiver capable of up to 100 kbps with wave shaping
  • Two 60 mA high side and two 160 mA low side switches

Buy Options

KIT33912G5DGEVME-Image

Click to expand

  • KIT33912G5DGEVME
    Active

  • Evaluation Kit - MC33912, LIN System Basis Chip with DC Motor Pre-driver and Current Sense.

    • KIT33905D5EKEVBE Hardware
    • Cable, USB A-M to B-M
    • Cable, Flat ribbon
    • Quick Reference Guide
  • $143.75 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
