Sub-1 GHz RF and 8-bit HCS08 MCU with 32KB Flash, 2KB RAM

MC12311 End of Life
  • This page contains information on a product that is not recommended for new designs.

Powered by the low-power S08QE 8-bit microcontroller, the MC12311 embeds a rich set of peripherals with a high-performance sub-1 GHz radio, capable of operating over a wide frequency range including 315, 433, 470, 868, 915, 928 and 960 MHz in the license-free industrial, scientific and medical (ISM) frequency bands. This configuration allows users to minimize the use of external components.

Product Details

Block Diagram

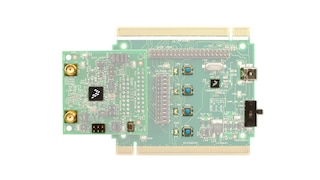

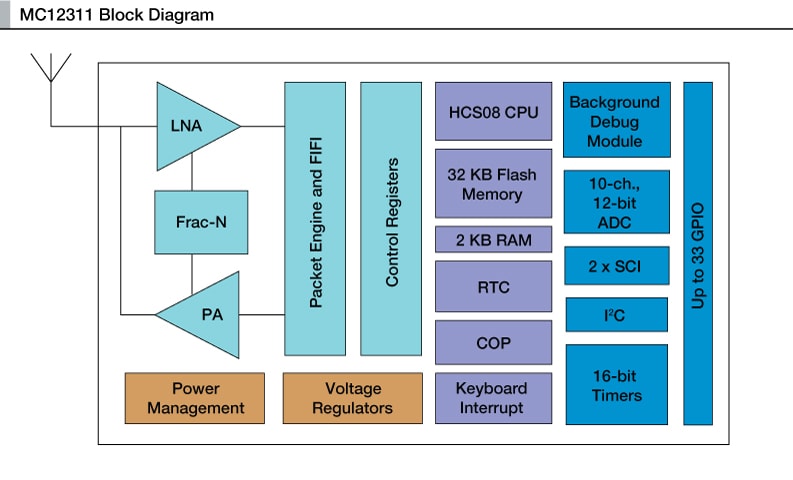

MC12311 BLOCK DIAGRAM

MC12311 BLOCK DIAGRAM
Get diagram PDF

Features

RF Transceiver Features

  • High sensitivity: down to -120 dBm at 1.2 kbps
  • Low current: Rx = 16mA, 100nA register r
  • Programmable output : -18 to +17 dBm in 1 dB steps
  • FSK, GFSK, MSK, GMSK and OOK modulations with a bit rates up to 300 kbps in FSK
  • Packet engine with CRC, AES-128 encryption and 66-byte FIFO
  • Built-in temperature sensor and low battery indicator

Microcontroller Features

  • 8-Bit S08 CPU: up to 50 MHz
  • 32 KB flash and 2 KB RAM
  • Multiple low-power modes
  • In-circuit debug and flash programming available via on-chip background debug module (BDM)
  • System protection features
  • Programmable low voltage interrupt (LVI)
  • Optional watchdog timer (COP)

Peripherals

  • Analog-to-digital converter (ADC): 10-channel, 12-bit resolution
  • Two analog comparators (ACMPx)
  • Two serial communications interface (SCI) modules
  • I2C: Up to 100 kbps
  • One 6-channel (TPM3) and two 3-channel (TPM1 and TPM2)
  • Real-time counter
  • Two 8-bit port keyboard interrupt (KBI) modules

Input/Output

  • Up to 33 general purpose input output (GPIO), including dedicated GPIO supporting transceiver
  • 13 KBI interrupts with selectable polarity

Operating Voltage and Temperature Range

  • 1.8 to 3.6-volt operating voltage with on-chip voltage regulators
  • Temperature range of -40°C to +85°C

Software Solutions

  • Our MC12311 simple media access controller (SMAC) is a simple ANSI C-based code stack available as sample source code. It is used for developing proprietary RF wireless applications using a sub-1 GHz transceiver. The MC12311 SMAC was built to enable the flexibility of the MC12311 integrated circuit (IC). The MC12311 SMAC is incorporated into the BeeKit® Wireless Connectivity Toolkit, which makes it easier for users to employ and customize MC12311 SMAC
  • Our MC12311 radio utility application provides a way to interact with the transceiver based on SMAC embedded applications. The radio utility application allows for complete configuration of the radio as well as basic transmitter and receiver tests
  • IEEE® 802.15.4 MAC with custom PHY layer: NXP® has developed a subset of the 802.15.4 PHY/MAC that fits into the internal flash memory of the MC12311. It supports the G-FSK modulation with multiple frequencies, data rates and channels
  • NXP provides support for wireless M-Bus through our partner AMiHO. NXP provides an evaluation version of wireless M-Bus and a full version can be purchased through AMiHO

More

Buy/Parametrics

1 result

Exclude 1 NRND

Part

Show description

Order

CAD Model

Status

Package Type

Package Termination Count

MC12311CHN
Data Sheet

End of Life

VFLGA60

60

N true 0 PSPMC12311en 11 Application Note Application Note t789 5 Data Sheet Data Sheet t520 1 Fact Sheet Fact Sheet t523 1 Reference Manual Reference Manual t877 3 User Guide User Guide t792 1 en_US 1 1 0 English The MC12311 smart radio is an integrated system-in-package solution designed for the implementation of wireless connectivity into smart metering, building automation, home automation and medical applications. Powered by the very successful low-power S08QE 8-bit microcontroller, the MC12311 embeds a rich set of peripherals with a high-performance sub-1 GHz radio. 1317319034642726123249 PSP 396.1 KB None None documents None 1317319034642726123249 /docs/en/fact-sheet/MC12311FS.pdf 396051 /docs/en/fact-sheet/MC12311FS.pdf MC12311FS N N 2011-10-03 MC12311 System in Package - Fact Sheet /docs/en/fact-sheet/MC12311FS.pdf /docs/en/fact-sheet/MC12311FS.pdf Fact Sheet N Y 736675474163315314 2022-12-07 pdf N en Sep 29, 2011 Fact Sheet t523 Fact Sheet Fact Sheet Y N MC12311 System in Package - Fact Sheet false en_US en Data Sheet Data Sheet 1 2 1.0 English MC1319x&#13;&#10;MC13191&#13;&#10;MC13192&#13;&#10;MC1320x&#13;&#10;MC13201&#13;&#10;MC13202&#13;&#10;MC1321x&#13;&#10;MC13211&#13;&#10;MC13212&#13;&#10;MC13213&#13;&#10;MC1322x&#13;&#10;MC1323x&#13;&#10;MC13233&#13;&#10;MC1323x&#13;&#10;MC12311&#13;&#10;Arm7&#13;&#10;ZigBee&#13;&#10;HCS08&#13;&#10;802.15.4&#13;&#10;BeeKit<sup>&#174;</sup>&#13;&#10;BeeStack<sup>&#174;</sup>&#13;&#10;BeeStack Consumer&#13;&#10;SynkroRF&#13;&#10;RF4CE 1317733135930714908552 PSP 749.6 KB None None documents None 1317733135930714908552 /docs/en/data-sheet/MC12311.pdf 749582 /docs/en/data-sheet/MC12311.pdf MC12311 documents N N 2016-10-31 MC12311 Highly-integrated, cost-effective single-package solution for the sub-1 GHz, Wireless MBUS Standard /docs/en/data-sheet/MC12311.pdf /docs/en/data-sheet/MC12311.pdf Data Sheet N 980000996212993340 2022-12-07 pdf N en Nov 15, 2011 980000996212993340 Data Sheet Y N MC12311 Highly-integrated, cost-effective single-package solution for the sub-1 GHz, Wireless MBUS Standard Reference Manual Reference Manual 3 3 4 English The TWR-RF is a Tower<sup>&#174;</sup> Controller Module compatible with the Tower System. It can function as a stand-alone, low-cost platform for the evaluation of Our wireless mounted on the appropriate Modular Reference Board (MRB). 1330038576112719531163 PSP 3.5 MB None None documents None 1330038576112719531163 /docs/en/reference-manual/TWRRFRM.pdf 3482150 /docs/en/reference-manual/TWRRFRM.pdf TWRRFRM documents N N 2012-02-23 TWR-RF Module - Reference Manual /docs/en/reference-manual/TWRRFRM.pdf /docs/en/reference-manual/TWRRFRM.pdf Reference Manual N 500633505221135046 2023-06-18 pdf N en Feb 20, 2014 500633505221135046 Reference Manual Y N TWR-RF Module - Reference Manual 4 0 English This manual describes NXP&#8217;s 12311-MRB development platform hardware. The MC12311 development platform is a highly-integrated, cost-effective, system-in-package (SIP), sub-1GHz wireless node solution with an FSK, GFSK, MSK, or OOK modulation-capable transceiver and low-power QE32 8-bit microcontroller. The highly integrated RF transceiver operates over a wide frequency range including 315 MHz, 433 MHz, 470 MHz, 868 MHz, 915 MHz, 928 MHz, and 955 MHz in the license-free Industrial, Scientific and 1330038563477714386827 PSP 1.8 MB None None documents None 1330038563477714386827 /docs/en/reference-manual/12311DHRM.pdf 1777064 /docs/en/reference-manual/12311DHRM.pdf 12311DHRM documents N N 2012-02-23 MC12311 Development Hardware Reference Manual /docs/en/reference-manual/12311DHRM.pdf /docs/en/reference-manual/12311DHRM.pdf Reference Manual N 500633505221135046 2023-06-19 pdf N en Feb 23, 2012 500633505221135046 Reference Manual N N MC12311 Development Hardware Reference Manual 5 1.0 English MC1319x, MC13191, MC13192, MC1320x, MC13201, MC13202, MC1321x, MC13211, MC13212, MC13213, MC1322x, MC1323x, MC13233, MC1323x, MC12311, Arm7, ZigBee, HCS08, 802.15.4, BeeKit<sup>®</sup>, BeeStack<sup>®</sup>, BeeStack Consumer, SynkroRF, RF4CE 1317733730622735868088 PSP 5.8 MB None None documents None 1317733730622735868088 /docs/en/reference-manual/MC12311RM.pdf 5823273 /docs/en/reference-manual/MC12311RM.pdf MC12311RM documents N N 2016-10-31 MC12311 Sub 1 GHz Low Power Transceiver plus Microcontroller Reference Manual /docs/en/reference-manual/MC12311RM.pdf /docs/en/reference-manual/MC12311RM.pdf Reference Manual N 500633505221135046 2022-12-07 pdf N en Nov 15, 2011 500633505221135046 Reference Manual Y N MC12311 Sub 1 GHz Low Power Transceiver plus Microcontroller Reference Manual Application Note Application Note 5 6 0 English The MC12311 is a highly-integrated, cost-effective, system in-package (SIP), sub-1 GHz wireless node solution. The MC12311 features a S08QE 8-bit microcontroller with an integrated RF transceiver. It operates over a wide frequency range, including the license-free Industrial, Scientific and Medical (ISM) frequency bands at 315 MHz, 433 MHz,470 MHz, 868 MHz, 915 MHz, 928 MHz, and 955 MHz. The MC12311 configurations allow designers to minimize the use of external components. 1443510145023728665506 PSP 623.6 KB None None documents None 1443510145023728665506 /docs/en/application-note/AN5027.pdf 623637 /docs/en/application-note/AN5027.pdf AN5027 documents N N 2015-10-02 Known Spurious Signals in the NXP<sup>&#174;</sup> MC12311 Sub-GHz Transceivers /docs/en/application-note/AN5027.pdf /docs/en/application-note/AN5027.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Oct 5, 2015 645036621402383989 Application Note Y N Known Spurious Signals in the NXP<sup>&#174;</sup> MC12311 Sub-GHz Transceivers 7 0 English The MC12311 and MKW01 are highly-integrated,&#13;&#10;cost-effective, system-in-package (SIP), sub-1 GHz&#13;&#10;wireless node solutions. The MKW01 features a&#13;&#10;low-power Arm<sup>&#174;</sup> Cortex<sup>&#174;</sup> M0+ 32-bit MCU together&#13;&#10;with an integrated RF transceiver that operates over a&#13;&#10;wide frequency range including the license-free&#13;&#10;Industrial, Scientific, and Medical (ISM) frequency&#13;&#10;bands at 315 MHz, 433 MHz, 470 MHz, 868 MHz,&#13;&#10;915 MHz, 928 MHz, and 955 MHz. The&#13;&#10;MC1 1409672345085723086375 PSP 429.9 KB None None documents None 1409672345085723086375 /docs/en/application-note/AN4983.pdf 429867 /docs/en/application-note/AN4983.pdf AN4983 documents N N 2016-10-31 Operation of the AFC in the Freescale MC12311 and MKW01 Sub-GHz Transceivers /docs/en/application-note/AN4983.pdf /docs/en/application-note/AN4983.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Sep 2, 2014 645036621402383989 Application Note Y N Operation of the AFC in the Freescale MC12311 and MKW01 Sub-GHz Transceivers 8 0 English This application note describes Printed Circuit Board&#13;&#10;(PCB) design considerations for the MC12311 and&#13;&#10;MKW01x 60-pin LGA package. Included are layouts of&#13;&#10;the component copper layer, solder mask, and solder&#13;&#10;paste stencil. These recommendations are guidelines&#13;&#10;only and may need to be modified depending on the&#13;&#10;assembly house used and the other components on the&#13;&#10;board. 1409335067952703608888 PSP 1.3 MB None None documents None 1409335067952703608888 /docs/en/application-note/AN4958.pdf 1333372 /docs/en/application-note/AN4958.pdf AN4958 documents N N 2014-08-29 Hardware Design Considerations for MC12311 and MKW01x Sub-GHz Devices /docs/en/application-note/AN4958.pdf /docs/en/application-note/AN4958.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Aug 29, 2014 645036621402383989 Application Note Y N Hardware Design Considerations for MC12311 and MKW01x Sub-GHz Devices 9 0 English AN4440SW.zip /docs/en/application-note-software/AN4440SW.zip /docs/en/application-note-software/AN4440SW.zip AN4440: This application note describes how to do in system reprogramming of NXP Semiconductors&#8217;s HCS08 devices using standard communication media such as SCI. Most of the codes are written in C so that make it easy to migrate to other MCUs. The subroutines for FLASH erasing and programming are written in ASM, but the calling APIs are provided in C. To make it easy of use, a GUI is also provided. 1365622021736726033551 PSP 802.3 KB None None documents None 1365622021736726033551 /docs/en/application-note/AN4440.pdf 802260 /docs/en/application-note/AN4440.pdf AN4440 documents N N 2013-04-10 AN4440, HCS08 Bootloader to Update Multiple Devices in a Field Bus Network - Application Note /docs/en/application-note/AN4440.pdf /docs/en/application-note/AN4440.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Apr 10, 2013 645036621402383989 Application Note Y N AN4440, HCS08 Bootloader to Update Multiple Devices in a Field Bus Network - Application Note 10 0 English This applications note describes the steps to perform a&#13;&#10;Bit Error Rate (BER) test of the MC12311 mounted on&#13;&#10;its MRB development board using the Rhode &&#13;&#10;Schwartz SMIQ signal generator. 1411403501290714401507 PSP 543.9 KB None None documents None 1411403501290714401507 /docs/en/application-note/AN4640.pdf 543939 /docs/en/application-note/AN4640.pdf AN4640 documents N N 2014-09-22 Bit error rate testing of the MC12311 development board using the Rhode and Schwartz SMIQ signal generator /docs/en/application-note/AN4640.pdf /docs/en/application-note/AN4640.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Dec 4, 2012 645036621402383989 Application Note N N Bit error rate testing of the MC12311 development board using the Rhode and Schwartz SMIQ signal generator User Guide User Guide 1 11 1.6 English MC1319x&#13;&#10;MC13191&#13;&#10;MC13192&#13;&#10;MC13193&#13;&#10;MC1320x&#13;&#10;MC13201&#13;&#10;MC13202&#13;&#10;MC13203&#13;&#10;MC1321x&#13;&#10;MC13211&#13;&#10;MC13212&#13;&#10;MC13213&#13;&#10;MC13214&#13;&#10;ZigBee&#13;&#10;HCS08&#13;&#10;802.15.4&#13;&#10;BeeKit<sup>&#174;</sup> 1144079303022726477342 PSP 2.0 MB None None documents None 1144079303022726477342 /docs/en/user-guide/802154MSNAUG.pdf 1973413 /docs/en/user-guide/802154MSNAUG.pdf 802154MSNAUG documents N N 2006-04-03 802.15.4 Media Access Controller (MAC) MyStarNetworkApp User's Guide /docs/en/user-guide/802154MSNAUG.pdf /docs/en/user-guide/802154MSNAUG.pdf User Guide N 132339537837198660 2023-06-19 pdf N en Feb 23, 2012 132339537837198660 User Guide Y N 802.15.4 Media Access Controller (MAC) MyStarNetworkApp User's Guide false 0 MC12311 downloads en true 1 Y PSP Application Note 5 /docs/en/application-note/AN5027.pdf 2015-10-02 1443510145023728665506 PSP 6 Oct 5, 2015 Application Note The MC12311 is a highly-integrated, cost-effective, system in-package (SIP), sub-1 GHz wireless node solution. The MC12311 features a S08QE 8-bit microcontroller with an integrated RF transceiver. It operates over a wide frequency range, including the license-free Industrial, Scientific and Medical (ISM) frequency bands at 315 MHz, 433 MHz,470 MHz, 868 MHz, 915 MHz, 928 MHz, and 955 MHz. The MC12311 configurations allow designers to minimize the use of external components. None /docs/en/application-note/AN5027.pdf English documents 623637 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN5027.pdf Known Spurious Signals in the NXP<sup>&#174;</sup> MC12311 Sub-GHz Transceivers /docs/en/application-note/AN5027.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N Known Spurious Signals in the NXP<sup>&#174;</sup> MC12311 Sub-GHz Transceivers 623.6 KB AN5027 N 1443510145023728665506 /docs/en/application-note/AN4983.pdf 2016-10-31 1409672345085723086375 PSP 7 Sep 2, 2014 Application Note The MC12311 and MKW01 are highly-integrated,&#13;&#10;cost-effective, system-in-package (SIP), sub-1 GHz&#13;&#10;wireless node solutions. The MKW01 features a&#13;&#10;low-power Arm<sup>&#174;</sup> Cortex<sup>&#174;</sup> M0+ 32-bit MCU together&#13;&#10;with an integrated RF transceiver that operates over a&#13;&#10;wide frequency range including the license-free&#13;&#10;Industrial, Scientific, and Medical (ISM) frequency&#13;&#10;bands at 315 MHz, 433 MHz, 470 MHz, 868 MHz,&#13;&#10;915 MHz, 928 MHz, and 955 MHz. The&#13;&#10;MC1 None /docs/en/application-note/AN4983.pdf English documents 429867 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4983.pdf Operation of the AFC in the Freescale MC12311 and MKW01 Sub-GHz Transceivers /docs/en/application-note/AN4983.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N Operation of the AFC in the Freescale MC12311 and MKW01 Sub-GHz Transceivers 429.9 KB AN4983 N 1409672345085723086375 /docs/en/application-note/AN4958.pdf 2014-08-29 1409335067952703608888 PSP 8 Aug 29, 2014 Application Note This application note describes Printed Circuit Board&#13;&#10;(PCB) design considerations for the MC12311 and&#13;&#10;MKW01x 60-pin LGA package. Included are layouts of&#13;&#10;the component copper layer, solder mask, and solder&#13;&#10;paste stencil. These recommendations are guidelines&#13;&#10;only and may need to be modified depending on the&#13;&#10;assembly house used and the other components on the&#13;&#10;board. None /docs/en/application-note/AN4958.pdf English documents 1333372 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4958.pdf Hardware Design Considerations for MC12311 and MKW01x Sub-GHz Devices /docs/en/application-note/AN4958.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N Hardware Design Considerations for MC12311 and MKW01x Sub-GHz Devices 1.3 MB AN4958 N 1409335067952703608888 /docs/en/application-note/AN4440.pdf 2013-04-10 1365622021736726033551 PSP 9 Apr 10, 2013 Application Note AN4440: This application note describes how to do in system reprogramming of NXP Semiconductors&#8217;s HCS08 devices using standard communication media such as SCI. Most of the codes are written in C so that make it easy to migrate to other MCUs. The subroutines for FLASH erasing and programming are written in ASM, but the calling APIs are provided in C. To make it easy of use, a GUI is also provided. None /docs/en/application-note/AN4440.pdf English documents 802260 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4440.pdf AN4440, HCS08 Bootloader to Update Multiple Devices in a Field Bus Network - Application Note /docs/en/application-note/AN4440.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N AN4440, HCS08 Bootloader to Update Multiple Devices in a Field Bus Network - Application Note 802.3 KB AN4440 N 1365622021736726033551 /docs/en/application-note/AN4640.pdf 2014-09-22 1411403501290714401507 PSP 10 Dec 4, 2012 Application Note This applications note describes the steps to perform a&#13;&#10;Bit Error Rate (BER) test of the MC12311 mounted on&#13;&#10;its MRB development board using the Rhode &&#13;&#10;Schwartz SMIQ signal generator. None /docs/en/application-note/AN4640.pdf English documents 543939 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4640.pdf Bit error rate testing of the MC12311 development board using the Rhode and Schwartz SMIQ signal generator /docs/en/application-note/AN4640.pdf documents 645036621402383989 Application Note N en None N pdf 0 N N Bit error rate testing of the MC12311 development board using the Rhode and Schwartz SMIQ signal generator 543.9 KB AN4640 N 1411403501290714401507 Data Sheet 1 /docs/en/data-sheet/MC12311.pdf 2016-10-31 1317733135930714908552 PSP 2 Nov 15, 2011 Data Sheet MC1319x&#13;&#10;MC13191&#13;&#10;MC13192&#13;&#10;MC1320x&#13;&#10;MC13201&#13;&#10;MC13202&#13;&#10;MC1321x&#13;&#10;MC13211&#13;&#10;MC13212&#13;&#10;MC13213&#13;&#10;MC1322x&#13;&#10;MC1323x&#13;&#10;MC13233&#13;&#10;MC1323x&#13;&#10;MC12311&#13;&#10;Arm7&#13;&#10;ZigBee&#13;&#10;HCS08&#13;&#10;802.15.4&#13;&#10;BeeKit<sup>&#174;</sup>&#13;&#10;BeeStack<sup>&#174;</sup>&#13;&#10;BeeStack Consumer&#13;&#10;SynkroRF&#13;&#10;RF4CE None /docs/en/data-sheet/MC12311.pdf English documents 749582 None 980000996212993340 2022-12-07 N /docs/en/data-sheet/MC12311.pdf MC12311 Highly-integrated, cost-effective single-package solution for the sub-1 GHz, Wireless MBUS Standard /docs/en/data-sheet/MC12311.pdf documents 980000996212993340 Data Sheet N en None Y pdf 1.0 N N MC12311 Highly-integrated, cost-effective single-package solution for the sub-1 GHz, Wireless MBUS Standard 749.6 KB MC12311 N 1317733135930714908552 Fact Sheet 1 /docs/en/fact-sheet/MC12311FS.pdf 2011-10-03 1317319034642726123249 PSP 1 Sep 29, 2011 Fact Sheet Fact Sheet The MC12311 smart radio is an integrated system-in-package solution designed for the implementation of wireless connectivity into smart metering, building automation, home automation and medical applications. Powered by the very successful low-power S08QE 8-bit microcontroller, the MC12311 embeds a rich set of peripherals with a high-performance sub-1 GHz radio. None /docs/en/fact-sheet/MC12311FS.pdf English 396051 None Fact Sheet 2022-12-07 N /docs/en/fact-sheet/MC12311FS.pdf MC12311 System in Package - Fact Sheet /docs/en/fact-sheet/MC12311FS.pdf documents 736675474163315314 Fact Sheet N Y en None Y t523 pdf 0 N N MC12311 System in Package - Fact Sheet 396.1 KB MC12311FS N 1317319034642726123249 Reference Manual 3 /docs/en/reference-manual/TWRRFRM.pdf 2012-02-23 1330038576112719531163 PSP 3 Feb 20, 2014 Reference Manual The TWR-RF is a Tower<sup>&#174;</sup> Controller Module compatible with the Tower System. It can function as a stand-alone, low-cost platform for the evaluation of Our wireless mounted on the appropriate Modular Reference Board (MRB). None /docs/en/reference-manual/TWRRFRM.pdf English documents 3482150 None 500633505221135046 2023-06-18 N /docs/en/reference-manual/TWRRFRM.pdf TWR-RF Module - Reference Manual /docs/en/reference-manual/TWRRFRM.pdf documents 500633505221135046 Reference Manual N en None Y pdf 4 N N TWR-RF Module - Reference Manual 3.5 MB TWRRFRM N 1330038576112719531163 /docs/en/reference-manual/12311DHRM.pdf 2012-02-23 1330038563477714386827 PSP 4 Feb 23, 2012 Reference Manual This manual describes NXP&#8217;s 12311-MRB development platform hardware. The MC12311 development platform is a highly-integrated, cost-effective, system-in-package (SIP), sub-1GHz wireless node solution with an FSK, GFSK, MSK, or OOK modulation-capable transceiver and low-power QE32 8-bit microcontroller. The highly integrated RF transceiver operates over a wide frequency range including 315 MHz, 433 MHz, 470 MHz, 868 MHz, 915 MHz, 928 MHz, and 955 MHz in the license-free Industrial, Scientific and None /docs/en/reference-manual/12311DHRM.pdf English documents 1777064 None 500633505221135046 2023-06-19 N /docs/en/reference-manual/12311DHRM.pdf MC12311 Development Hardware Reference Manual /docs/en/reference-manual/12311DHRM.pdf documents 500633505221135046 Reference Manual N en None N pdf 0 N N MC12311 Development Hardware Reference Manual 1.8 MB 12311DHRM N 1330038563477714386827 /docs/en/reference-manual/MC12311RM.pdf 2016-10-31 1317733730622735868088 PSP 5 Nov 15, 2011 Reference Manual MC1319x, MC13191, MC13192, MC1320x, MC13201, MC13202, MC1321x, MC13211, MC13212, MC13213, MC1322x, MC1323x, MC13233, MC1323x, MC12311, Arm7, ZigBee, HCS08, 802.15.4, BeeKit<sup>®</sup>, BeeStack<sup>®</sup>, BeeStack Consumer, SynkroRF, RF4CE None /docs/en/reference-manual/MC12311RM.pdf English documents 5823273 None 500633505221135046 2022-12-07 N /docs/en/reference-manual/MC12311RM.pdf MC12311 Sub 1 GHz Low Power Transceiver plus Microcontroller Reference Manual /docs/en/reference-manual/MC12311RM.pdf documents 500633505221135046 Reference Manual N en None Y pdf 1.0 N N MC12311 Sub 1 GHz Low Power Transceiver plus Microcontroller Reference Manual 5.8 MB MC12311RM N 1317733730622735868088 User Guide 1 /docs/en/user-guide/802154MSNAUG.pdf 2006-04-03 1144079303022726477342 PSP 11 Feb 23, 2012 User Guide MC1319x&#13;&#10;MC13191&#13;&#10;MC13192&#13;&#10;MC13193&#13;&#10;MC1320x&#13;&#10;MC13201&#13;&#10;MC13202&#13;&#10;MC13203&#13;&#10;MC1321x&#13;&#10;MC13211&#13;&#10;MC13212&#13;&#10;MC13213&#13;&#10;MC13214&#13;&#10;ZigBee&#13;&#10;HCS08&#13;&#10;802.15.4&#13;&#10;BeeKit<sup>&#174;</sup> None /docs/en/user-guide/802154MSNAUG.pdf English documents 1973413 None 132339537837198660 2023-06-19 N /docs/en/user-guide/802154MSNAUG.pdf 802.15.4 Media Access Controller (MAC) MyStarNetworkApp User's Guide /docs/en/user-guide/802154MSNAUG.pdf documents 132339537837198660 User Guide N en None Y pdf 1.6 N N 802.15.4 Media Access Controller (MAC) MyStarNetworkApp User's Guide 2.0 MB 802154MSNAUG N 1144079303022726477342 true Y Products
