FXPQ3115BV | Biomedical Precision pressure sensor

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Roll over image to zoom in

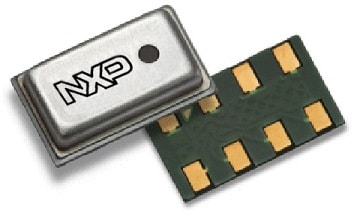

The FXPQ3115BV is a compact, piezoresistive, absolute pressure sensor with an I²C digital interface. FXPQ3115BV has a wide operating range of 20 kPa to 110 kPa. This sensor is ideal for inhalers, continuous positive airway pressure (CPAP) masks or other medical devices coming in contact with a patient's airway. The MEMS and ASIC die are coated with a biomedically approved gel. The gel is a nontoxic, nonallergenic elastomer which meets all United States Pharmacopeia (USP) biological testing class VI requirements. The gel properties allow uniform pressure transmission to the MEMS diaphragm.

Data Sheet

Application Notes

Product Details

Features

Key Features

Operating range: 20 kPa to 110 kPa absolute pressure
Calibrated range: 50 kPa to 110 kPa absolute pressure
Operating temperature from −40 °C to +85 °C
I²C digital output interface (up to 400 kHz)
Fully compensated internally
Precision ADC resulting in 1.5 Pa of effective resolution
Programmable interrupts
Autonomous data acquisition
1.95 V to 3.6 V supply voltage

Part numbers include: FXPQ3115BVS.
