NHS52S04EVK Evaluation Kit for BLE 5.3 IoT Solutions

NHS52S04EVK

Roll over image to zoom in

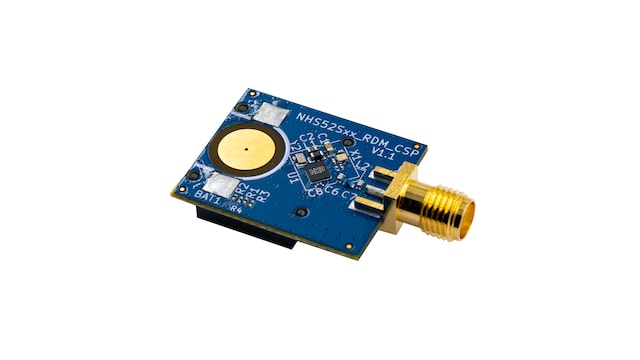

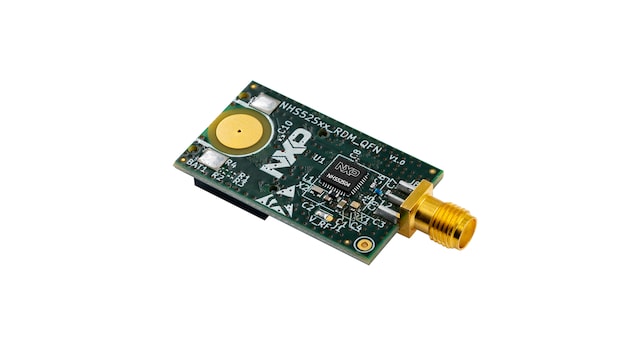

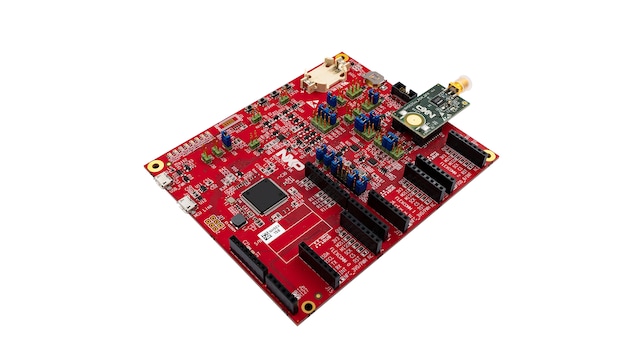

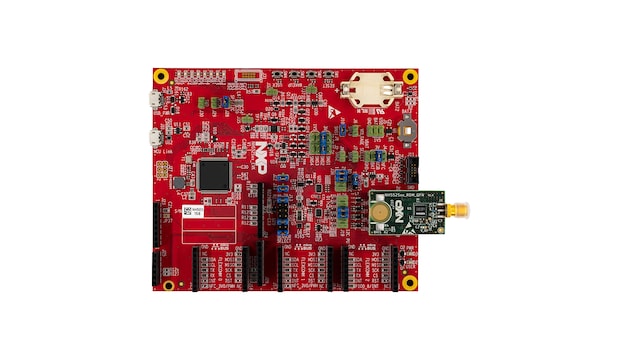

The NHS52S04 base board, combined with a NHS52S04 Radio Daughter Module (RDM), is an evaluation environment supporting NXP’s NHS52S04 wireless processor.

The EVK supports IoT applications and is intended for prototyping, demos, software development and measurements (power consumption and RF).

The NHS52S04EVK constitutes multiple debugging mechanisms, therefore aiding easier application development.

NHS52S04EVK and enablement (documentation, software and boards) are available. For additional information and sample availability, contact support or your local sales representative.

Supported Devices

Wireless Connectivity

Bluetooth Low Energy

  • NHS52S04: NHS52S04: Ultra-Low-Power Bluetooth® Low Energy Solution With Arm® Cortex®-M33 TrustZone® for Medical IoT

Sensors

Magnetic Sensors

  • NMH1000: NMH1000 Ultra-Low Power and Low-Voltage Magnetic Switch

Barometric Pressure 15 to 150 kPa

  • FXPQ3115BV: Biomedical Precision Pressure Sensor

Accelerometers

  • FXLS8974CF: ±2g/±4g/±8g/±16g, Low-Power 12-Bit Digital IoT Accelerometer

Features

Connectivity

  • The NHS52S04EVK can be connected using:
    • FlexComm
    • UART
    • SPI
    • I²C
  • MikroBUS socket connectors
  • SMA antenna connector

User Interface

  • 4 push buttons – Wake-up, Reset, ISP and User
  • Onboard sensors
  • Multiple battery holders

MCU-Link Pro

  • SWO profiling and I/O features
  • Multiple LEDs for diagnosis
  • HS-USB host interface
  • Current measurement with two ranges: 0 to 1 mA and 0 to 50 mA

Buy Options

NHS52SXX-EVK-Image

Click to expand

  • NHS52SXX-EVK
    Active

  • NHS52S04EVK Evaluation Kit for BLE 5.3 IoT Solutions.

  • Kit Contains

    • 1 x EVK board
    • 1 x micro-USB cable
    • Documentation
  • $412.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 25
    • Shipping: Normally ships 1-2 business days
ADD TO CART
