ICODE® SLIX-L

SL2S5002_SL2S5102
Active

The ICODE SLIX-L IC is a dedicated chip for smart label applications with the need for a leaner custom-specific command set, smaller memory and/or a product, which takes care of the increasing demand for perfect customer privacy. This IC is another member of our ICODE SLIX product family that is fully compliant with the ISO standards ISO/IEC 15693 and ISO/IEC 18000-3, prolonging a successful story of NXP in the field of vicinity identification systems.

Contactless energy and data transfer

Whenever connected to a very simple and easy-to-produce type of antenna (as a result of the 13.56 MHz carrier frequency) made out of a few windings printed, winded, etched or punched coil, the ICODE SLIX-L IC can be operated without line of sight up to a distance of 1.5 m (gate width), no battery needed. When the smart label is positioned in the field of an interrogator antenna, the high-speed RF communication interface enables data to be transmitted up to 53 kbit/s.

Anti-collision

An intelligent anti-collision function enables several tags to operate in the field simultaneously. The anti-collision algorithm selects each tag individually and ensures that the execution of a transaction with a selected tag is performed correctly without data corruption resulting from other tags in the field.

More

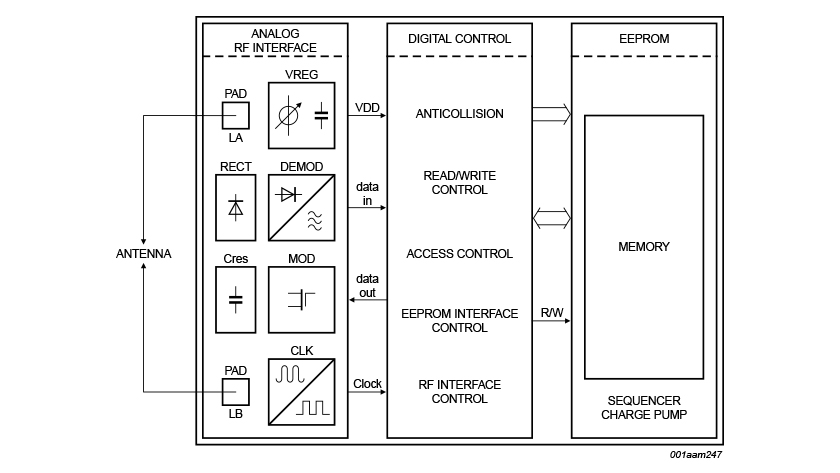

Block Diagram

SL2S5002_SL2S5102 block diagram

SL2S5002_SL2S5102 block diagram
Get diagram PDF

Features

ICODE SLIX-L RF interface (ISO/IEC 15693)

  • Contactless transmission of data and supply energy (no battery needed)
  • Operating distance: up to 1.5 m (depending on antenna geometry)
  • Operating frequency: 13.56 MHz (ISM, world-wide licence freely available)
  • Fast data transfer: up to 53 kbit/s
  • High data integrity: 16-bit CRC, framing
  • True anticollision
  • Electronic Article Surveillance (EAS)
  • Application Family Identifier (AFI) supported
  • Data Storage Format IDentifier (DSFID)
  • ENABLE PRIVACY command with 32-bit Privacy password
  • DESTROY SLIX-L command with 32-bit Destroy password
  • Additional fast anticollision read
  • Write distance equal to read distance

EEPROM

  • 512 bits, organized in 16 blocks of 4 bytes each, 4 blocks are summed up to 1 page
  • 50 years data retention
  • Write endurance of 100000 cycles

Security

  • Unique identifier for each device
  • Lock mechanism for each user memory block (write protection)
  • Lock mechanism for DSFID, AFI, EAS
  • Password (32-bit) protected Label Destroy
  • Password (32-bit) protected Privacy Mode
  • Password (32-bit) protected EAS and AFI functionality

Buy/Parametrics

2 results

Include 1 NRND

Part

Show description

Order

CAD Model

Status

Product Category

User Memory Size (Bit)

Data Retention

SL2S5002FTB
Data Sheet

Active

ICODE SLIX-L

256

50

SL2S5002FUD
Data Sheet

Active

ICODE SLIX-L

256

50
