Pegoda Smart Card Reader Based on PN7642

CLRD730

Roll over image to zoom in

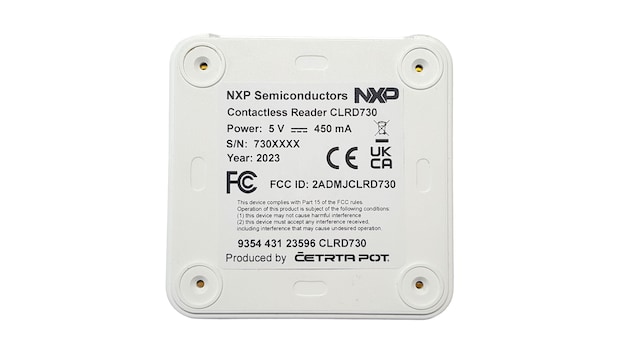

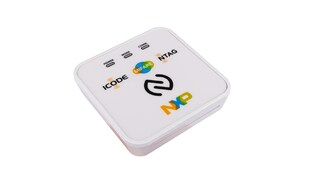

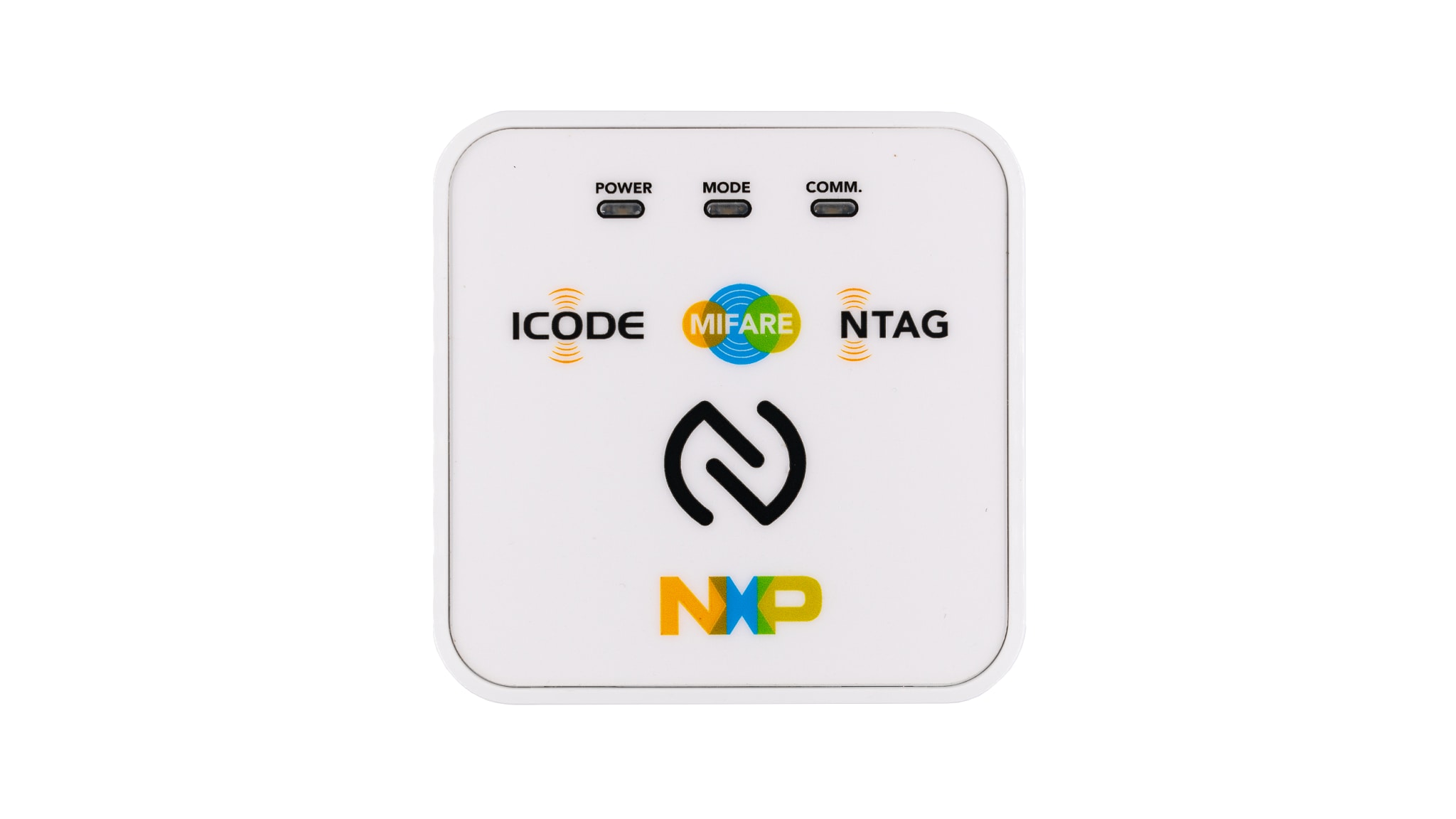

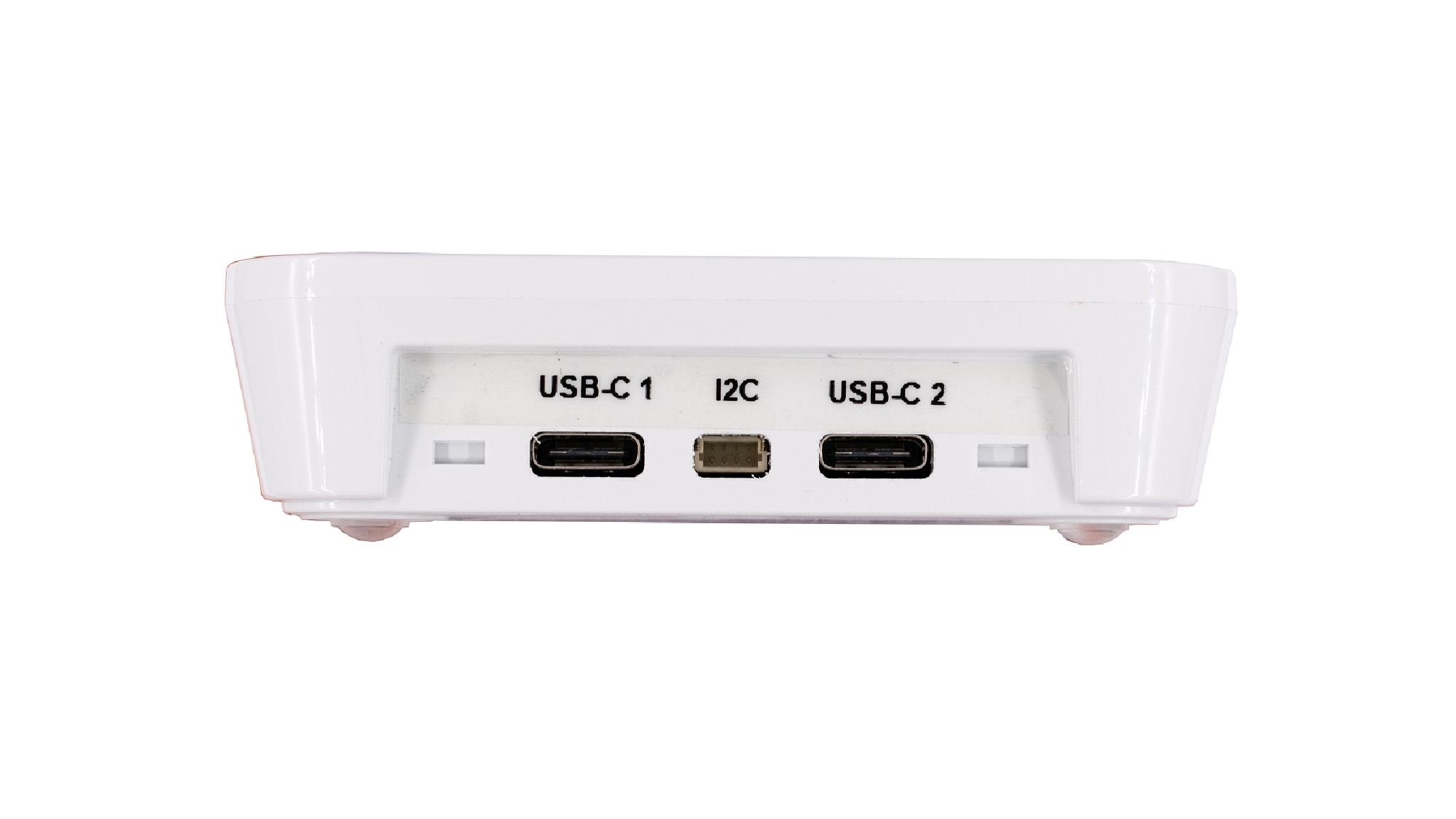

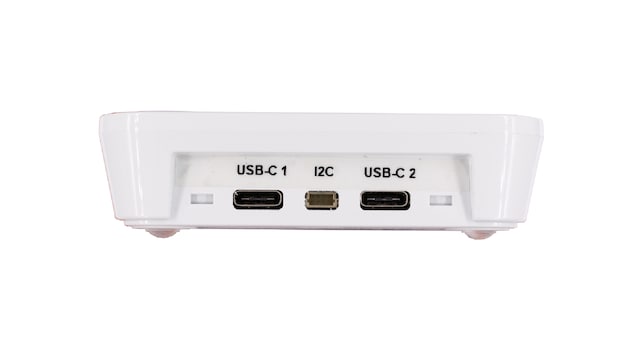

The Pegoda CLRD730 reader is a reference design and evaluation reader based on PN7642 NFC controller with a powerful Arm® Cortex®-M33 microcontroller (MCU). By default, the reader is delivered in personal computer/smart card (PS/SC) mode and can be switched by use of the mode button to Virtual COM (VCOM) on USB-C 1 port. Drivers are installed to identify the reader as contactless as well as contact reader by support of Windows, macOS and Linux. The USB-C 2 power port can be used for an additional external power supply.

The reader is built around proven, well-established MIFARE®, NTAG® and ICODE® products compatible with NXP tools like RFIDDiscover, Card Test Framework and NFC Cockpit.

Block Diagram

Pegoda CLRD730

CLRD730 - Pegoda 3 BD
Get diagram PDF

Supported Devices

Security and Authentication

Contact Readers

  • TDA8035HN: High-Integrated and Low-Power Smart Card Interface

RFID

MIFARE SAM

MIFARE DESFire

  • MF3DHx3: MIFARE® DESFire® EV3: High-Security IC for Contactless Smart City Services

MIFARE Plus

  • MFPEV2: MIFARE Plus® EV2: Secure IC for Contactless Smart City Services

MIFARE Ultralight

  • MF0AESx20: MIFARE Ultralight AES: Enhanced Security for Limited-Use Contactless Applications

MIFARE (HF)

  • MIFARE-DUOX: MIFARE DUOX®: High security contactless smartcard IC

NTAG for Tags and Labels

  • NTAG424DNA: NTAG® 424 DNA / 424 DNA TagTamper – Advanced Security and Privacy for Trusted IoT Applications

ICODE

  • ICODE-3: ICODE 3: High-performance HF tag IC for IOT

NFC Readers

  • PN7642: Single-Chip Solution with High-Performance NFC Reader, Customizable MCU and Security Toolbox

More

Features

General Feature

  • PN7642: All-in-one full ISO/IEC 14443, ISO/IEC 15693 and NFC (ISO/IEC 18000-2) controller solution with support of high data rates
  • MIFARE SAM AV3: Latest security features support of MIFARE®, NTAG® and ICODE®
  • USB-C 1: Data Port-A for power supply and communications via PC/SC or VCOM mode for Windows, MacOS and Linux
  • Fully compatible with NXP tools like RFIDDiscover, Card Test Framework and NFC Cockpit
  • Pegoda RD730 firmware Binary, Ready to Flash
  • PN7642 and MIFARE SAM AV3 based reference design and evaluation reader for fast, flexible development of secure reader systems
  • Quick embedded development with portable code for contactless connectivity and security experience through MIFARE®, NTAG® and ICODE®
  • Contact experience by support of I2C controller for connected tags
  • Easy customization with flash-based microcontroller on NFC controller
    Note: CLRD730 needs to stay on PN7642 firmware v01.00 to avoid a nonworking reader

Certifications

  • CE (LVD, RED), FCC (Part 15), and EMC declaration of conformity
  • NFC Form certification
  • MIFARE® certified contactless desktop reader by Arsenal Testhouse

Buy Options

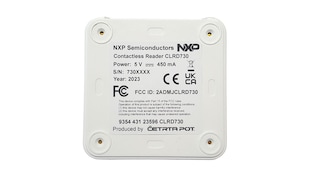

MFEV730-Image

Click to expand

  • MFEV730
    Active

  • Pegoda Smart Card Reader Based on PN7642.

  • Kit contains:

    • 1 CLRD730 Reader
    • 1 USB-C cable
    • MIFARE®/NTAG® /ICODE® Credentials

    In a White box with labels and description.

  • $166.11 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 45
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors

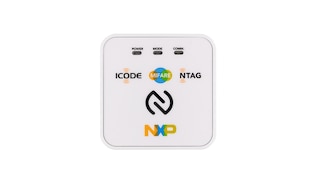

CLRD730-Image

Click to expand

  • CLRD730
    Active

  • Pegoda Smart Card Reader Based on PN7642.

  • Kit contains:

    • 1 CLRD730
  • $151.28 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 43
    • Shipping: Normally ships 1-2 business days
ADD TO CART
