S32R37 Radar MCU for Automotive and Industrial

Product Details

Block Diagram

S32R37 Radar MCU

Get diagram PDF

Features

General

Dual issue computation cores: Power Architecture^® e200z7 32-bit CPU
1.2 MB on-chip code flash memory (FMC flash memory) with ECC
1 MB on-chip SRAM with ECC

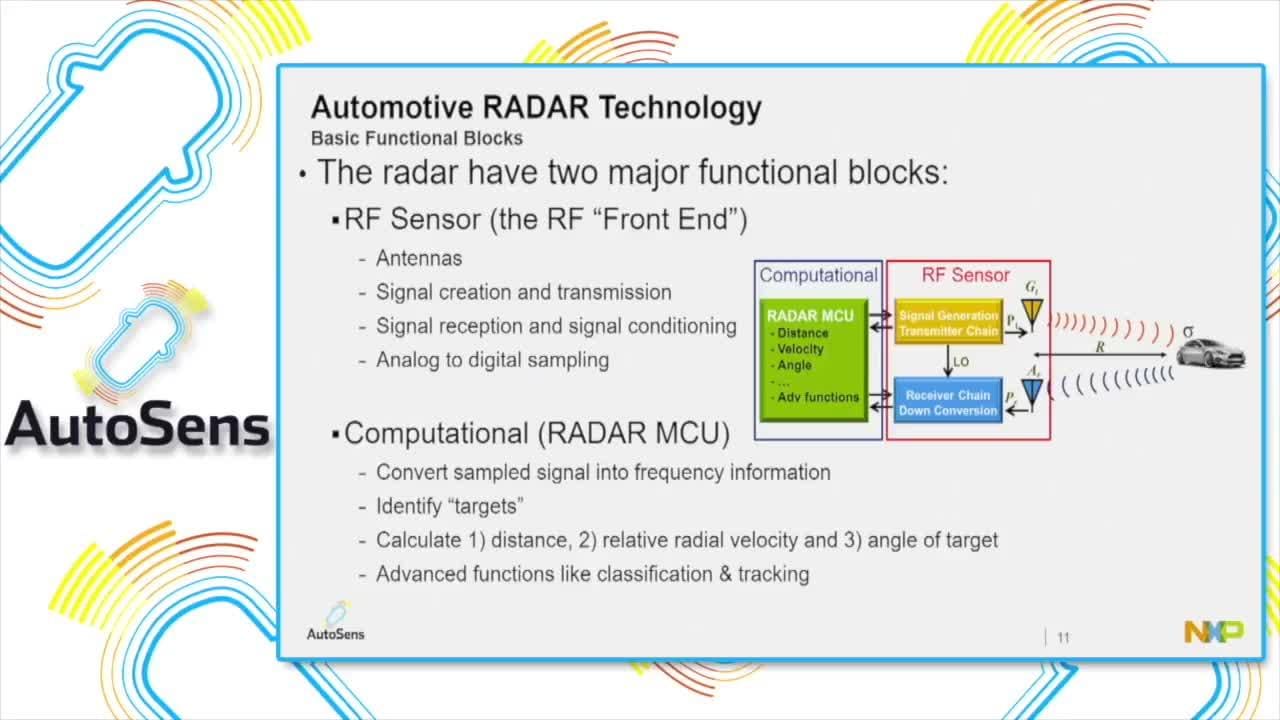

RADAR processing

Signal Processing Toolbox (SPT) for RADAR signal processing acceleration
Cross Triggering Engine (CTE) for precise timing generation and triggering
MIPICSI2 interface to connect external RADAR RX ADCs

Memory protection

Each core memory protection unit provides 24 entries
Data and instruction bus system memory protection unit (SMPU) with 16 region descriptors each
Register protection

Functional safety

Enables ASIL-B applications
Fault Collection and Control Unit (FCCU) for fault collection and fault handling
Memory Error Management Unit (MEMU) for memory error management
Safe eDMA controller
Self-Test Control Unit (STCU2)
Error Injection Module (EIM)
On-chip voltage monitoring
Clock Monitor Unit (CMU)

Security

Cryptographic Security Engine (CSE2)
Supports censorship and life-cycle management

Part numbers include: FS32R372SAK0MMM.

Product Program

Safe Assure^® (Functional Safety)

When it comes to functional safety, NXP stands for quality and reliability. Our SafeAssure program simplifies system-level safety requirements in accordance with ISO 26262.

Read more

Buy/Parametrics

‌ ‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌

Documentation

Quick reference to our documentation types.

1-5 of 11 documents

^{Data Sheet}
S32R372 Data Sheet

PDFRev 4Aug 29, 2018971.3 KBS32R372English
^{Reference Manual}
S32R372 Reference Manual

PDFRev 3.2Dec 19, 201818.7 MBS32R372RMEnglish
Sign in required
^{Application Note}
AN12756: Cryptographic Services Engine2 (CSE2) Devices – Application Note

PDFRev 0Feb 28, 2020109.7 KBAN12756English
^{Application Note}
AN12177: Power Architecture e200z4 and e200z7 Core Memory Protection Unit (CMPU) – Application Note

PDFRev 0Apr 30, 2018998.2 KBAN12177English
^{Application Note}
AN5251, S32R27/37 Hardware Design Guide - Application Note

PDFRev 1Apr 11, 20181.6 MBAN5251English
Sign in required
^{Application Note}
AN12080: The Clock Monitor Unit (CMU) – Application Note

PDFRev 0Nov 27, 2017196.6 KBAN12080EnglishAssociated File: AN12080SW
^{Application Note}
AN5375, S32R RADAR Signal Compression

PDFRev 1Sep 19, 20172.6 MBAN5375English
^{Application Note Software}
Software for AN12080

ZIPRev 0Nov 26, 2017252.0 KBAN12080SWEnglish
^Errata
S32R372 Mask Set Errata for MASK 0N36U

PDFRev 3Mar 25, 2020262.1 KBS32R372-0N36UEnglish
^{Fact Sheet}
S32 Design Studio IDE (S32DS) Fact Sheet

PDFRev 7.0Feb 9, 2024270.9 KBS32DS-FSEnglish
^{Fact Sheet}
S32R37 Radar Microcontroller

PDFRev 1Feb 14, 2020213.4 KBS32R37RADMICRFSA4English
