DSP56F827 BSDL File
Digital Signal Controller
- This page contains information on a product that is not recommended for new designs.

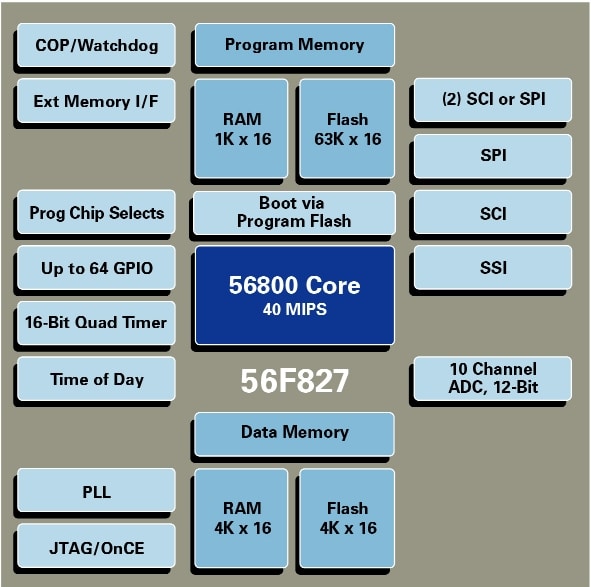

The 56F827, a member of the 56800 core-based family of Digital Signal Controllers, combines the processing power of a a DSP and the functionality of a microcontroller with a flexible set of peripherals on a single chip. The 56F827 is ideal for a multitude of control, telephony and other applications requiring highly-integrated, high-performance solutions with all the flexibility enabled by Flash technology.
The 56800 core is based on a Harvard-style architecture consisting of three execution units which operate in parallel, allowing as many as six operations per instruction cycle. The microprocessor-style programming model and optimized instruction set allow straightforward generation of efficient, compact code for both DSP- and MCU-style applications. The instruction set is also highly efficient for C compilers, enabling rapid development of optimized control applications.
Product Details
Features
- Quad Timer
- 4MHz Crystal Oscillator and PLL with integrated pre- and post-scalers
- Dual Analog to Digital Converters
- Serial communications interface module (SCI)
- Serial peripheral interface module (SPI)
- Synchronous Serial Interface (SSI)
- Time-of-Day module
- GPIO
- JTAG/OnCE Debug Programming Interface
- 128 LQFP package
Part numbers include: DSP56F827FG80E.
Buy/Parametrics
|
|
|
|
|
|
|
|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Documentation
Quick reference to our documentation types.
1-5 of 26 documents
-
Data Sheet
56F827 - Data Sheet
-
Reference Manual
DSP56800 16-Bit Digital Signal Processor Family Manual
-
Application Note
Recovering MC56F8300 Family Devices from Extreme RFI
-
Application Note
Production Flash Programming for 56F800
Design Resources
Hardware
Quick reference to our
board types.
2 hardware offerings
-
Emulators, Probes, and ProgrammersUSB TAP for ONCE DSC
-
Evaluation and Development BoardsEvaluation Kit for 56F827 Processor
Software
Quick reference to our software types.
1-5 of 20 software files
-
Configuration Tools
Initialization tool for ADC, Decoder, ESSI/SSI, EMI, FlexCAN, Flash, GPIO, HPI, INTC, I2C, MSCAN, PLL, PWM, Timer, SCI/LIN, SIM, SPI, TOD, EEPROM, Terminal, Button, Codec, LED, Switch
-
Code Snippets
Triple DES Example Application for 56F82x
-
Code Snippets
Common Tone Generation (CTG) Example Application for 56F82x
-
Code Snippets
DTMF Generation Example Application for 56F82x
-
Code Snippets
G.165 Example Application for 56F82x
