Evaluation Kit for 56F827 Processor

Evaluation Kit for 56F827 Processor

DSP56F827EVM ActiveReceive alerts

Jump To
Overview
Product Details
Documentation
Design Resources
Support
Get Started

Roll over image to zoom in

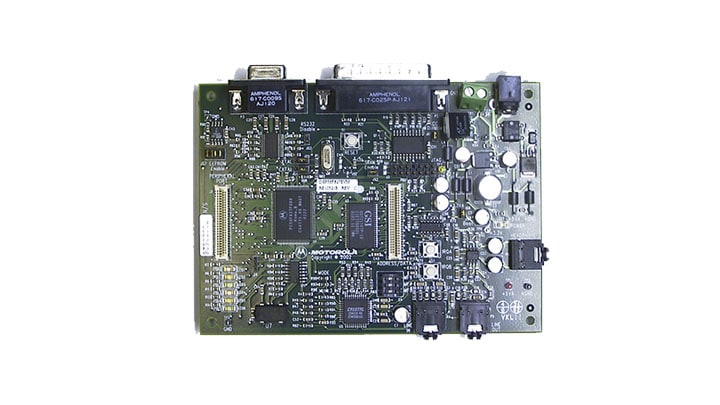

DSP56F827EVMIMJ Block Diagram

The 56F827EVM kit is a low-cost kit that contains everything you need to quickly evaluate the features and capabilities of the 56F827 Digital Signal Controller and tools. It also provides an efficient, cost-effective vehicle for hardware and software development. It can be used alone or in conjunction with Our broad range of modular motion control development hardware. The DSP56F827EVM Kit is targeted for use on PC-compatible systems running Windows 95, Windows 98, Windows 2000, Windows ME, Windows NT 4.0, and Windows XP.

Product Details

Supported Devices
Features

Supported Devices

Processors and Microcontrollers

16-Bit 56800 DSC Core

DSP56F827: Digital Signal Controller

Features

Features

DSP56F827EVM 16-bit +2.5V/+3.3V Digital Signal Processor operating at 80MHz
External fast static RAM (FSRAM) memory, configured as:

64K x 16-bit of program memory with 0 wait states at 70MHz
64K x 16-bit of data memory with 0 wait states at 70MHz

1Mbit Serial EEPROM
4.00MHz crystal oscillator for DSP frequency generation
Optional external oscillator frequency input connector
Joint Test Action Group (JTAG) port interface connector for an external debug Host Target Interface
On-board Parallel JTAG Host Target Interface, with a connector for a PC printer port cable
RS-232 interface for easy connection to a host processor
16-bit stereo codec interface
Stereo headphone interface
Codec sample rate selector
Peripheral Daughter Card Expansion Connector, to allow the user to connect his own SCI, SSI, SPI or GPIO compatible peripheral to the DSP
Memory Daughter Card Expansion Connector, to allow the user to connect his own memory or memory device to the DSP

Documentation

Quick reference to our documentation types.

NXP (5)

Filter by

Clear all

User Guide
Fact Sheet
Selector Guide

Clear all

5 documents

Sort by

^{User Guide}
56F827 Evaluation Module Hardware User's ManualGetting Started

PDFRev 2Jul 30, 2005383.7 KBDSP56F827EVMUMEnglish
^{Fact Sheet}
56F827 - Fact Sheet

PDFRev 2May 30, 200589.6 KB56F827FLASHFSEnglish
^{Fact Sheet}
56F800, 56F8300/8100, 56F8000 and 56850 Series Hardware Development Tools

PDFRev 2May 30, 2005129.2 KB56800-EDEVFSEnglish
^{Fact Sheet}
56F827EVM Kit Installation Guide

PDFRev 1Oct 1, 200456.9 KBDSP56F827EVMKIGEnglish
^{Selector Guide}
Digital Signal Processors and Controllers, SG1004

PDFRev 0Apr 17, 20091.1 MBSG1004Q22009English
