Digital Signal Controller

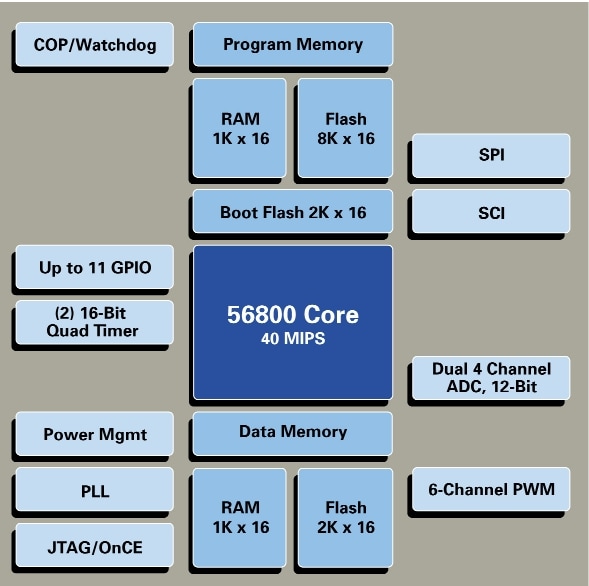

The 56F801, a member of the 56800 core-based family of Digital Signal Controllers, combines the processing power of a DSP and the functionality of a microcontroller with a flexible set of peripherals on a single chip to create an extremely cost-effective solution for servo and motor control, power inverter, and converter applications.
The 56800 core is based on a Harvard-style architecture consisting of three execution units which operate in parallel, allowing as many as six operations per instruction cycle. The microprocessor-style programming model and optimized instruction set allow straightforward generation of efficient, compact code for both DSP- and MCU-style applications. The instruction set is also highly efficient for C Compilers, enabling rapid development of optimized control applications.
Product Details
Features
- Advanced pulse width modulation
- Dual analog to digital converters
- Programmable 16-bit timers
- 8 MHz crystal oscillator and PLL with integrated pre and post scalars
- On-board power conversion and management
- NXP® scalable CAN module
- Serial communications interface module (SCI)
- Serial peripheral interface module (SPI)
- GPIO
- JTAG/OnCE debug programming interface
Buy/Parametrics
1 result
Exclude 1 NRND
Part | Order | CAD Model | Status | Package Termination Count | Package Type | Budgetary Price excluding tax | Flash (kB) | RAM (kB) | Operating Frequency [Max] (MHz) | SPI | Supply Voltage [Min to Max] (V) |
|---|---|---|---|---|---|---|---|---|---|---|---|
Not Recommended for New Designs | 48 | LQFP48 | 10K @ US$7.63 | 16 | 2 | 80 | 1 | 3 to 3.6 |
1-10 of 55 documents
Compact List
Application Note (23)
-
DSP56800 ADC[AN1947]
-
PC Master Software Usage[AN2395]
Data Sheet (1)
-
56F801 - Data Sheet[DSP56F801]
Errata (1)
Fact Sheet (2)
-
56F801 - Fact Sheet[56F801FLASHFS]
Reference Manual (1)
Reliability and Quality Information (1)
-
VDE IEC 60730 Class B test report for the DSC56F8xxx controller[VDE_DSC_CLASSB_TEST_REPORT_]
Selector Guide (16)
-
Digital Signal Processors and Controllers, SG1004[SG1004Q22009]
-
ARCHIVED - SG2067 Energy Meter[SG2067]
-
ARCHIVED - SG2044 Dryers[SG2044]
-
ARCHIVED - SG2076 Robotic Arm[SG2076]
-
ARCHIVED - SG2037 Dishwashers[SG2037]
Technical Notes (2)
-
EB813SW[EB813SW]
Training Presentation (4)
User Guide (2)
-
DSP56F801-7UM 16-Bit Digital Signal Processor Users Manual[DSP56F801-7UM]
-
56F8xx Serial Bootloader User Manual[DSP56F8XXBLUM]
White Paper (2)
Design Resources
Software
Quick reference to our software types.
1-5 of 10 software files
-
Configuration Tools
Initialization tool for ADC, Decoder, ESSI/SSI, EMI, FlexCAN, Flash, GPIO, HPI, INTC, I2C, MSCAN, PLL, PWM, Timer, SCI/LIN, SIM, SPI, TOD, EEPROM, Terminal, Button, Codec, LED, Switch
-
Configuration Tools
[Archive]:Triple DES Example Application for 56F80x
-
Code Snippets
Peripheral Example Applications for 56800/E, supporting: ADC, Decoder, ESSI/SSI, EMI, Flash, GPIO, HPI, INTC, I2C, PLL, PWM, Timer, SCI/LIN, SIM, SPI, TOD, EEPROM, Terminal, Button, Codec, LED, Switch.
-
Debugging and Visualization Tools
Real-Time Control and Debugging Tool
