8-bit EEPROM with TSI for Body Electronics MCUs
The automotive S08RN Family of 8-Bit MCUs is highly scalable, ranging from simple devices with 2kB Flash in 8-pin-packages for cost-effective solutions to feature-rich derivatives with 60kB Flash in 64-pin packages. The family-approach allows easy, pin and peripheral-compatible migration.
The S08RN MCU family is fully AEC-Q100 compliant and qualified up to 125°C ambient temperatures.
Integrated peripherals including Touch Sensing interface as well as motorcontrol-PWM simplify PCB design, and combined with a broad portfolio of device options, result in reduced BOM costs.
Product Details

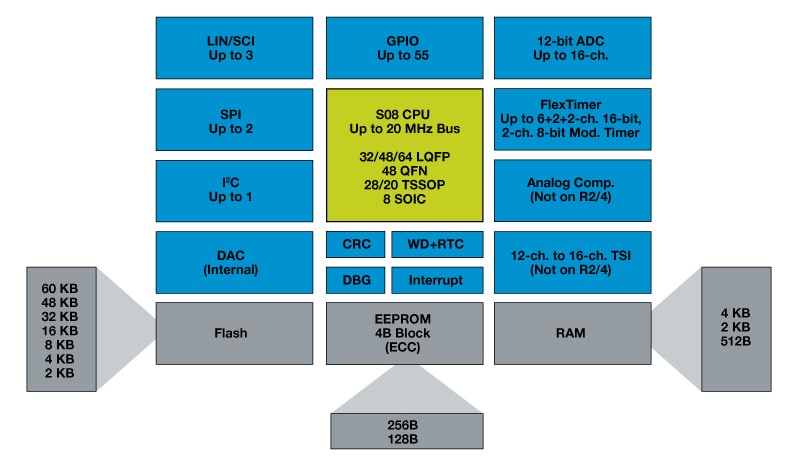

Block Diagram
Features
- S08-core with 20MHz Bus speed (with HW-CRC)
- Debug via BDM (single-wire, non-intrusive)
- Up to 60kB Flash (read/program/erase over full operating voltage and temperature)
- Up to 4kB of RAM
- Up to 256B of EEPROM with ECC (4-byte erase sector)
- Communication: Up to 3 LIN-SCI, up to 2 SPIs, up to 1 IIC
- Flextimer:
- Up to 3 16-Bit Flextimer-modules with 2-6 channel each
- 6ch-Flextimer with Fault-inputs and Deadtime-insertion and ADC-sync for 3-ph-BLDC motorcontrol
- Configurable for Input Capture Output Compare Edge- or Center-aligned PWM
- Realtimeclock, Watchdogtimer with in depth clock source
- Up to 16-ch., 12-bit SAR ADC with 8-stage FIFO-queue
- Analog Comparator with differential input
- Up to 16-ch. Touch-Sensing Interface functional in all power modes. Highly configurable though HW and SW allows optimization for speed, robustness or power-consumption
Part numbers include: S9S08RN16W2MLC, S9S08RN16W2MLF, S9S08RN16W2MTG, S9S08RN16W2MTJ, S9S08RN16W2VLC, S9S08RN16W2VTG, S9S08RN16W2VTJ, S9S08RN32W1CLC, S9S08RN32W1CLF, S9S08RN32W1MLC, S9S08RN32W1MLF, S9S08RN32W1MLH, S9S08RN32W1VLC, S9S08RN32W1VLF, S9S08RN48W1CLF, S9S08RN48W1MLC, S9S08RN48W1MLF, S9S08RN48W1MLH, S9S08RN48W1VLF, S9S08RN60W1MLC, S9S08RN60W1MLF, S9S08RN60W1MLH, S9S08RN60W1VLF, S9S08RN60W1VLH, S9S08RN8W2MLC, S9S08RN8W2MLF, S9S08RN8W2MTG, S9S08RN8W2MTJ, S9S08RNA16W2MLC, S9S08RNA16W2MLF, S9S08RNA16W2MTG, S9S08RNA16W2MTJ, S9S08RNA16W2VLC, S9S08RNA16W2VTG, S9S08RNA16W2VTJ, S9S08RNA32W1MLC, S9S08RNA32W1MLF, S9S08RNA32W1MLH, S9S08RNA32W1VLC, S9S08RNA48W1MLC, S9S08RNA48W1MLF, S9S08RNA48W1MLH, S9S08RNA60W1MLC, S9S08RNA60W1MLF, S9S08RNA60W1MLH, S9S08RNA60W1VLH, S9S08RNA8W2CLF, S9S08RNA8W2CTJ, S9S08RNA8W2MLC, S9S08RNA8W2MLF, S9S08RNA8W2MTG, S9S08RNA8W2MTJ, S9S08RNA8W2VLC, S9S08RNA8W2VTG, S9S08RNA8W2VTJ.
Buy/Parametrics
|
|
|
|
|
|
|
|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Documentation
Quick reference to our documentation types.
1-5 of 14 documents
-
Fact Sheet
S08RN Fact SheetFeatured
-
Application Note
Migration Guide from S08 to Kinetis L Series MCUsFeatured
-
Data Sheet
S9S08RN16 Series Data Sheet - Data Sheet
-
Data Sheet
S9S08RN60 Series Data Sheet - Data Sheet
-
Reference Manual
S9S08RN16 Reference Manual
Design Resources
Hardware
Quick reference to our
board types.
5 hardware offerings
-
Emulators, Probes, and ProgrammersUniversal Multilink Development InterfaceFeatured
-
Emulators, Probes, and ProgrammersPEmicro Cyclone FX programmer
-
Emulators, Probes, and ProgrammersUniversal Multilink FX High-Speed Development Interface
-
Additional hardware available. View our featured partner solutions.
-
Emulators, Probes, and ProgrammersPEmicro Cyclone programmer
-

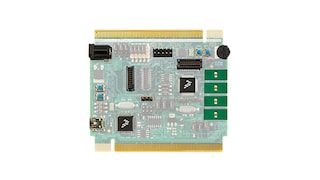

Evaluation and Development BoardsS08RN Tower Module Development Board
