External Automotive Lighting Multi-Channel eXtreme Switch
The NXP® 12XS6 is a 4th generation eXtreme switch for automotive lighting drivers that can control and diagnose bulbs and light emitting diodes (LEDs) with enhanced diagnostic precision.
- Combines flexibility through daisy chainable SPI at 5.0 MHz, extended digital and analog feedbacks, safety and robustness
- Low RDS(ON) and high integration allows power and space saving at the module level
- Dual, triple, quad, and penta-output devices are hardware and SPI compatible
- Packaged in a Pb-Free power-enhanced SOIC package with exposed pad, which is ELV compliant
Product Details

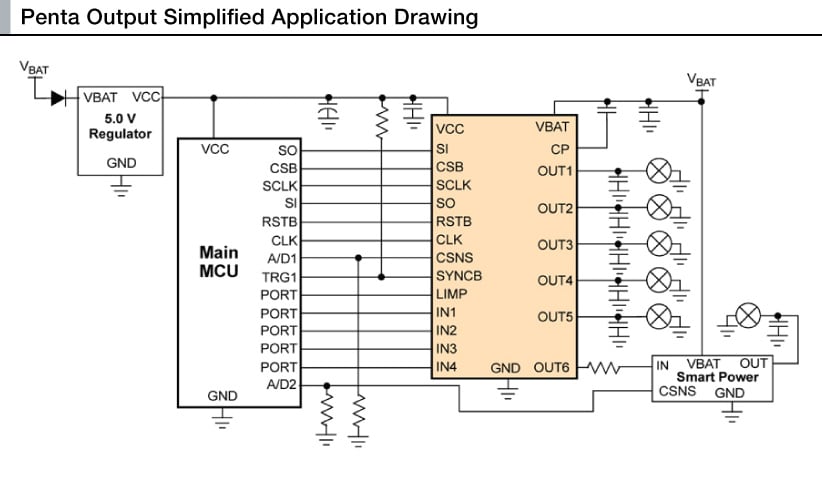

Block Diagram
Features
- Operating voltage range of 7.0 V to 18 V with sleep current
< 5.0 μA, extended mode from 6.0 V to 28 V - 5.0 MHz 16-bit SPI control of overcurrent profiles, channel control including 8-bit PWM duty-cycles, output-ON and -OFF OpenLoad detections, thermal shutdown and prewarning, and fault reporting
- Programmable overcurrent trip levels
- Enhance output current sense with programmable synchronization signal and battery voltage feedback
- Watchdog and Limp Home mode
- External smart power switch control
- These products are included in NXP®s product longevity program with assured supply for a minimum of 15 years after launch
Part numbers include: MC07XS6517BEK, MC07XS6517DEK, MC08XS6421BEK, MC08XS6421CEK, MC08XS6421DEK, MC17XS6400CEK, MC17XS6400DEK, MC17XS6500BEK, MC17XS6500EEK, MC40XS6500BEK, MC40XS6500CEK, MC40XS6500DEK.
Comparison Table
12XS6 Family Comparison
| Product | Datasheet | RDSon (mOhm) | Package | Suggested tool |
| MC07XS6517 | Datasheet |
3 x 7.0 2 x 17.0 |
SOIC EP 54 | KIT07XS6517EVB |
| MC08XS6421 | Datasheet |
2 x 8.0 2 x 21.0 |
SOIC EP 32 | KIT08XS6421EKEVB |
| MC10XS6200 | Datasheet | 2 x 10.0 | SOIC EP 32 | KIT10XS6200EKEVB |
| MC10XS6225 | Datasheet |
1 x 10.0 1 x 25.0 |

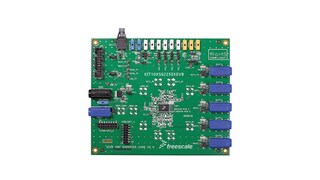

SOIC EP 32 | KIT10XS6225EKEVB |
| MC10XS6325 | Datasheet |
2 x 10.0 1 x 25.0 |

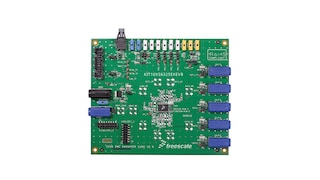

SOIC EP 32 | KIT10XS6325EKEVB |

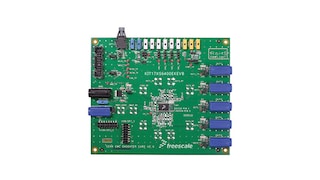

| MC17XS6400 | Datasheet | 4 x 17.0 | SOIC EP 32 | KIT17XS6400EKEVB |
| MC17XS6500 | Datasheet | 5 x 17.0 | SOIC EP 32 | KIT17XS6500EVB |
| MC40XS6500 | Datasheet | 5 x 40.0 | SOIC EP 32 | KIT40XS6500EKEVB |
Related products
Buy/Parametrics
|
|
|
|
|
|
|
|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Documentation
Quick reference to our documentation types.
1-5 of 13 documents
-
Data Sheet
MC07XS6517, Triple 7.0 mOhm and Dual 17 mOhm High-side Switch - Data sheetFeatured
-
Data Sheet
MC17XS6500, Penta 17 mOhm High-side Switch - Data SheetFeatured
-
Data Sheet
MC12XS6D4, Dual 8.0 mOhm and Dual 21 mOhm High-side Switch - Data SheetFeatured
-
Data Sheet
MC12XS6D3, Penta 40 mOhm High-side Switch - Data SheetFeatured
-
Data Sheet
MC12XS6D1, 17 mOhm and 7.0 mOhm High-side Switches - Data SheetFeatured
Design Resources

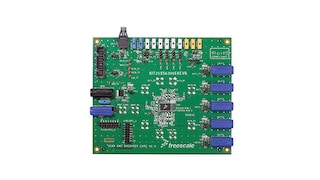

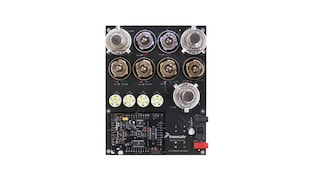

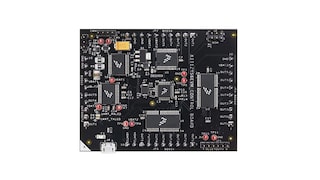

Hardware
Quick reference to our
board types.
1-5 of 18 hardware offerings
-
Evaluation and Development BoardsEvaluation Kit - MC40XS6500EK, Penta High Side SwitchFeatured
-

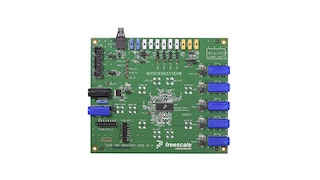

Evaluation and Development BoardsEvaluation Kit - MC07XS6517, Triple High Side SwitchFeatured
-

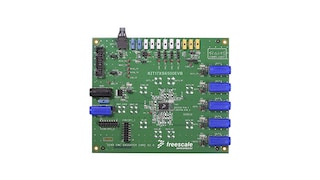

Evaluation and Development BoardsEvaluation Kit - MC17XS6500, Penta High Side SwitchFeatured
-

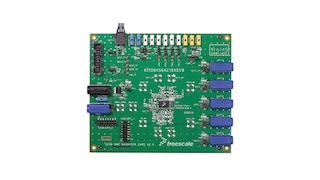

Evaluation and Development BoardsEvaluation Kit for MC08XS6421 Quad High Side SwitchFeatured
-
