Load Board for KIT12XS6EVM Lighting

KITLIGHTEVB Active

Roll over image to zoom in

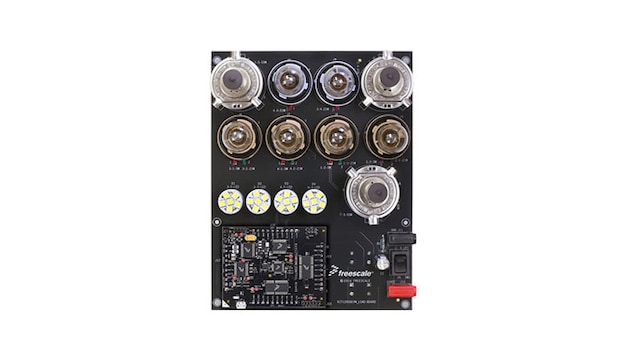

This Kit is a load board that should be associated with the KIT12XS6EVM eXtreme Switch reference design. It is composed of various load types to adress the 20 outputs of the KIT12XS6EVM.

Product Details

Supported Devices

Power Management

High Side Switches

  • MC12XS6: External Automotive Lighting Multi-Channel eXtreme Switch

Interfaces

Automotive LIN Solutions

  • MC33903: SBC Gen2 with High-Speed CAN and LIN

Processors and Microcontrollers

16-Bit S12 and S12X MCUs

  • S12G: Ultra-Reliable S12G General Purpose Automotive and Industrial Microcontrollers

Features

Connectivity

  • 4 female connectors to be associated with KIT12XS6EVM

User Components

  • 3x 12 V-55/60 W H4 bulbs
  • 4x 12 V LED loads
  • 4x 12 V 5/21 W bulbs
  • 2x 12 V 21 W bulbs

Buy Options

KITLIGHTEVB-Image

Click to expand

  • KITLIGHTEVB
    Active

  • Evaluation Kit - eXtreme Switch Lighting Board.

  • $129.72 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
