TEA2016AAT Development Programming Board and Samples

TEA2016DB1561 Preproduction

Roll over image to zoom in

The TEA2016 is a digital configurable LLC and PFC combo controller for high efficiency resonant power supplies. It includes both the LLC controller functionality and PFC controller operating in DCM and QR mode. The TEA2016AAT comes in a low profile and narrow body-width SO16 package.

The TEA2016AAT digital architecture is based on a high-speed configurable hardware state machine ensuring very reliable real-time performance. During the power supply development, many operation and protection settings of the LLC and PFC controller can be adjusted by loading new settings into the device to meet specific application requirements.

Supported Devices

Power Management

AC-DC Controllers with Integrated PFC

  • TEA2016: Digital LLC+PFC Combo Controller for Resonant Power Supply

Features

TEA2016 features

  • Several parameters can easily be configured, like:
    • Operating frequencies to be outside the audible area at all operating modes
    • Soft start and soft stop in burst mode, reducing the audible noise
    • Accurate transition levels between operation modes (high-power mode/low-power mode/burst mode)
  • Independently configurable levels and timers
  • All protections can independently be set to latch, safe restart, or latched after several attempts to restart (Patent 82096505US01)

RDK01DB1561 content

  • 50 pieces TEA2016AATdev IC samples
  • 1 TEA2016 programming board

TEA2016AAT dev

  • The RDK01DB1561 kit contains the special development version of the TEA2016AAT IC
  • Connections to the IC’s second I²C interface are provided on the high-voltage spacer pins 7 and 12, which are normally not connected (High Voltage Spacer pin)
  • This enables easy modification of parameter settings while the IC is operating: operation can be changed “on the fly”

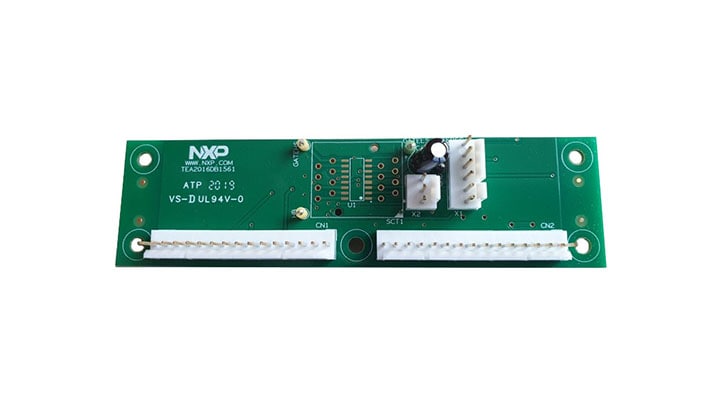

TEA2016DB1561 programming board

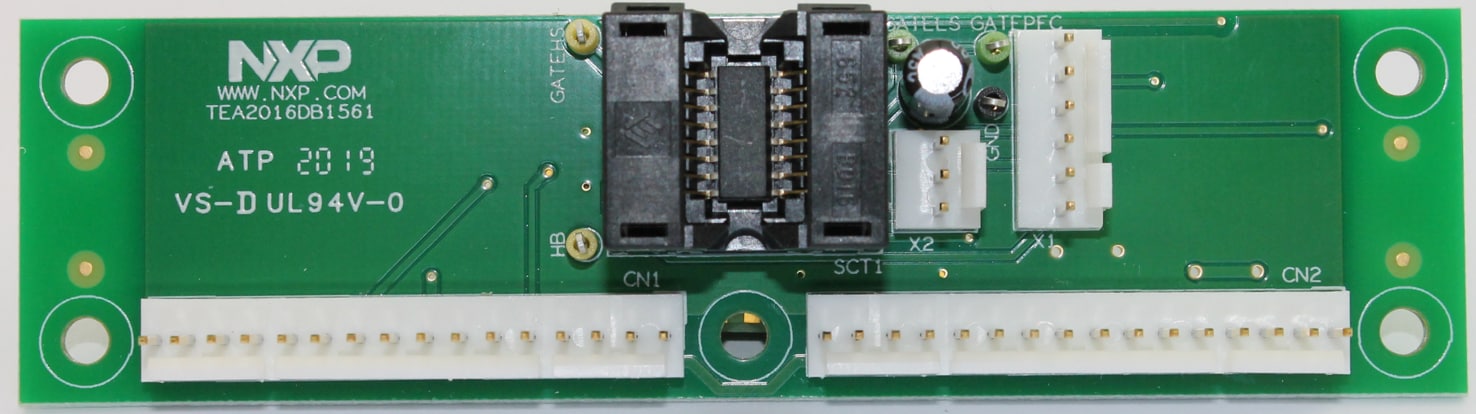

  • This board can be used to get familiar with programming TEA2016AATdev samples. A sample can be soldered to the board for this purpose
  • Adding an IC socket (not included) will make the TEA2016DB1561 programming board suitable for programming small series of ICs

Buy Options

TEA2016DB1561-Image

Click to expand

  • TEA2016DB1561

  • TEA2016AAT Development Programming Board and Samples.

  • Programming board

    RDK01DB1561-Image

    Click to expand

    • RDK01DB1561
      Active

    • TEA2016AAT Development Programming Board and Samples.

    • $57.50 USD
    • For a quantity of 1
      • Availability: In Stock
      • Inventory: 26
      • Shipping: Normally ships 1-2 business days
    ADD TO CART
    Order from distributors
