TEA2016 USB-I2C Programming Interface

RDK01DB1563 Active

Roll over image to zoom in

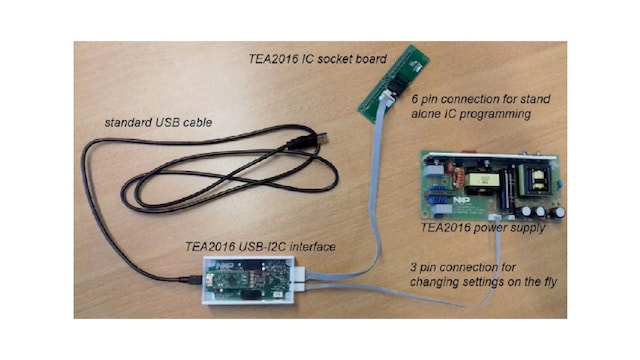

The RDK01DB1563 development kit contains the TEA2016DB1514 USB-I²C interface board, cables and quick start guide. This development kit, originally developed for supporting TEA2016 application design development, can be used in the same way for several other NXP products like the TEA2017 and TEA6017.

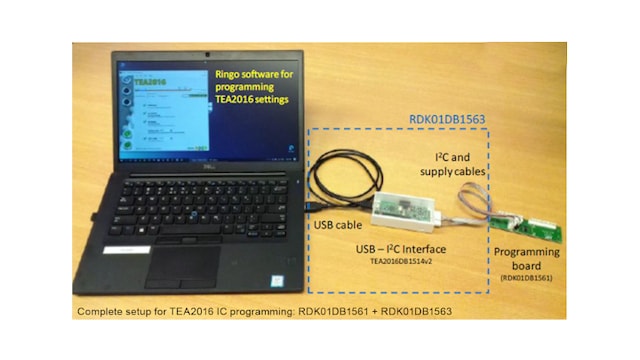

The TEA2016DB1514 USB-I²C interface board is a development tool that enables working with programming IC settings from a computer. The supporting graphical user interface (GUI) can be installed on a computer and is available in the NXP provided Ringo development software. The interface and software are intended for engineering work in lab environment as part of power supply development. It is not intended for industrial purpose.

The TEA2016 is a digital configurable LLC and PFC combo controller for high-efficiency resonant power supplies. It includes both the LLC and PFC controller functionality. The TEA2016AAT comes in a low profile and narrow body-width SO16 package. During the power supply development, many operation and protection settings of the LLC and PFC controller can be adjusted by loading new settings into the device to meet specific application requirements.

Supported Devices

Power Management

AC-DC Controllers with Integrated PFC

  • TEA2016: Digital LLC+PFC Combo Controller for Resonant Power Supply
  • TEA2017: Digital Configurable LLC and Multimode PFC Controller
  • TEA6017AT: Digital Configurable LLC and Multimode PFC Controller

Features

Distinctive Features

  • Complete functionality of LLC and PFC controller in single small-size SO16 package
  • Integrated high-voltage start-up
  • Integrated drivers and high-voltage level shifter (LS)
  • High-side driver directly supplied from the low-side driver output
  • Accurate boost voltage regulation
  • Integrated X-capacitor discharge without additional external components
  • Power good function
  • Several parameters can easily be configured

Green Features

  • Valley/zero voltage switching for minimum switching losses
  • Extremely high efficiency from low load to high load
  • Compliant with latest energy-saving standards and directives (Energy Star, EuP)
  • Excellent no-load input power (< 75 mW for TEA2016AAT/TEA1995T combination)

Protection Features

  • Independently configurable levels and timers
  • All protections can independently be set to latched, safe restart or latched after several attempts to restart
  • Supply undervoltage protection (UVP)
  • Overpower protection (OPP)
  • Internal and external overtemperature protection (OTP)
  • Capacitive mode regulation (CMR)
  • Accurate overvoltage protection (OVP)
  • Overcurrent protection (OCP)
  • Inrush current protection (ICP)
  • Brownin/brownout protection
  • Disable input

Buy Options

RDK01DB1563-Image

Click to expand

  • RDK01DB1563
    Active

  • TEA2016 USB-I2C Programming Interface.

  • TEA2016 USB-I²C programming interface + cables

    Kit contains:

    • USB, 3-pin and 6-pin connection cables
    • TEA2016DB1514v2 USB-I²C interface board
    • USB-I²C programming interface kit quick start guide
  • $175.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 4
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
N true 0 TSPRDK01DB1563en 7 Application Note Application Note t789 1 Fact Sheet Fact Sheet t523 1 User Guide User Guide t792 5 en_US en_US 5 1 English This page will help guide you through the process of learning about your RDK01DB1563 board. 1610566734597739753262 Y 1610566734597739753262 GS-RDK01DB1563 GS-RDK01DB1563 /document/guide/getting-started-with-the-rdk01db1563:GS-RDK01DB1563 HTML 0 2021-01-13 GS-RDK01DB1563 TSP User Guide 132339537837198660 2025-03-05 en Jan 27, 2021 User Guide t792 User Guide User Guide Y Getting Started with the RDK01DB1563 2 1 English This document provides the content for the getting started webpages for the TEA2016 development kit RDK01DB1563. Each chapter in this document provides the content of a chapter on the get started webpage. 1610483320499711234394 TSP 3.4 MB None None documents Y None 1610483320499711234394 /docs/en/user-guide/UM11521.pdf 3398527 /docs/en/user-guide/UM11521.pdf UM11521 N N 2021-01-12 UM11521, RDK01DB1563 getting started /docs/en/user-guide/UM11521.pdf /docs/en/user-guide/UM11521.pdf User Guide N 132339537837198660 2022-12-07 pdf N en Jan 12, 2021 User Guide t792 User Guide User Guide Y N UM11521, RDK01DB1563 getting started 3 1 English The TEA2016DB1514 USB-I2C interface board is a development tool to enable working with theTEA2016 setting by use of a computer. 1580409962826709534761 TSP 1.9 MB Moderated Software Licensing For Download Without FAE None documents Y Extended 1580409962826709534761 /secured/assets/documents/en/user-guide/UM11235.pdf 1881482 /secured/assets/documents/en/user-guide/UM11235.pdf UM11235 Y N 2020-01-30 TEA2016DB1514 USB to I2C hardware interface user manual /webapp/Download?colCode=UM11235&appType=moderatedWithoutFAE /secured/assets/documents/en/user-guide/UM11235.pdf User Guide N 132339537837198660 2023-04-24 pdf Y en Jun 27, 2019 User Guide t792 User Guide User Guide Y N TEA2016DB1514 USB to I2C hardware interface user manual 4 1 English This quick start guide describes how to get started with the RDK01DB1563 programming kit. 1610483321371723296028 TSP 844.6 KB None None documents Y None 1610483321371723296028 /docs/en/user-guide/UM11527.pdf 844601 /docs/en/user-guide/UM11527.pdf UM11527 N N 2021-01-12 UM11527, RDK01DB1563 USB-I2C interface kit quick start guide /docs/en/user-guide/UM11527.pdf /docs/en/user-guide/UM11527.pdf User Guide N 132339537837198660 2022-12-07 pdf N en Jan 12, 2021 User Guide t792 User Guide User Guide Y N UM11527, RDK01DB1563 USB-I2C interface kit quick start guide 5 1.05 English The Ringo TEA2016 development software with GUI is a development tool that enables working with the TEA2016 settings using a computer and the TEA2016DB1514 USB I2C interface board. 1580409961526718973206 TSP 8.9 MB Moderated Software Licensing For Download Without FAE None documents Y Extended 1580409961526718973206 /secured/assets/documents/en/user-guide/UM11219.pdf 8943473 /secured/assets/documents/en/user-guide/UM11219.pdf UM11219 Y N 2020-01-30 Ringo TEA2016 development software with GUI user manual /webapp/Download?colCode=UM11219&appType=moderatedWithoutFAE /secured/assets/documents/en/user-guide/UM11219.pdf User Guide N 132339537837198660 2023-04-24 pdf Y en Jul 30, 2019 User Guide t792 User Guide User Guide Y N Ringo TEA2016 development software with GUI user manual false en Application Note Application Note 1 6 1 Chinese TEA2016AAT 是一款用于集成 PFC 谐振电源的控制器 IC。它在所有功率水平下 均可实现高效率。 1575994667956717526469zh TSP 10.6 MB Moderated Software Licensing For Download Without FAE None documents Extended 1575994667956717526469 /secured/assets/documents/zh/application-note/AN12330.pdf 10605848 /secured/assets/documents/zh/application-note/AN12330.pdf AN12330 documents Y N 2019-12-10 TEA2016 PFC + LLC Controller IC Application Note /secured/assets/documents/zh/application-note/AN12330.pdf https://www.nxp.com.cn/webapp/Download?colCode=AN12330&appType=moderatedWithoutFAE&docLang=zh Application Note N 645036621402383989 2023-04-24 zh Nov 28, 2019 645036621402383989 Application Note Y N TEA2016 PFC + LLC 控制器 IC 1 English The TEA2016AAT is a controller IC for resonant power supplies that include a PFC. It provides high efficiency at all power levels. 1575994667956717526469 TSP 10.6 MB Moderated Software Licensing For Download Without FAE None documents Extended 1575994667956717526469 /secured/assets/documents/en/application-note/AN12330.pdf 10605848 /secured/assets/documents/en/application-note/AN12330.pdf AN12330 documents Y N 2019-12-10 TEA2016 PFC + LLC Controller IC Application Note /webapp/Download?colCode=AN12330&appType=moderatedWithoutFAE /secured/assets/documents/en/application-note/AN12330.pdf Application Note N 645036621402383989 2023-04-24 pdf Y en Nov 28, 2019 645036621402383989 Application Note Y N TEA2016 PFC + LLC Controller IC Application Note Fact Sheet Fact Sheet 1 7 1 English NXP provides a reliable power supply design while making the LLC design easier, this latest platform guarantees high efficiency and a very low no-load power. 1567543850801693610125 TSP 207.1 KB None None documents None 1567543850801693610125 /docs/en/fact-sheet/TEA20161995FSDAS.pdf 207132 /docs/en/fact-sheet/TEA20161995FSDAS.pdf TEA20161995FSDAS documents N N 2019-09-03 NXP GreenChip ICs TEA2016 and TEA1995 /docs/en/fact-sheet/TEA20161995FSDAS.pdf /docs/en/fact-sheet/TEA20161995FSDAS.pdf Fact Sheet N 736675474163315314 2023-08-08 pdf N en Feb 28, 2020 736675474163315314 Fact Sheet Y N NXP GreenChip ICs TEA2016 and TEA1995 false 0 RDK01DB1563 downloads en true 0 Y TSP Application Note 1 /secured/assets/documents/en/application-note/AN12330.pdf 2019-12-10 1575994667956717526469 TSP 6 Nov 28, 2019 Application Note The TEA2016AAT is a controller IC for resonant power supplies that include a PFC. It provides high efficiency at all power levels. Moderated Software Licensing For Download Without FAE /secured/assets/documents/en/application-note/AN12330.pdf English documents 10605848 None 645036621402383989 2023-04-24 Y /webapp/Download?colCode=AN12330&appType=moderatedWithoutFAE TEA2016 PFC + LLC Controller IC Application Note /secured/assets/documents/en/application-note/AN12330.pdf documents 645036621402383989 Application Note N en Extended Y pdf 1 Y N TEA2016 PFC + LLC Controller IC Application Note 10.6 MB AN12330 N 1575994667956717526469 Fact Sheet 1 /docs/en/fact-sheet/TEA20161995FSDAS.pdf 2019-09-03 1567543850801693610125 TSP 7 Feb 28, 2020 Fact Sheet NXP provides a reliable power supply design while making the LLC design easier, this latest platform guarantees high efficiency and a very low no-load power. None /docs/en/fact-sheet/TEA20161995FSDAS.pdf English documents 207132 None 736675474163315314 2023-08-08 N /docs/en/fact-sheet/TEA20161995FSDAS.pdf NXP GreenChip ICs TEA2016 and TEA1995 /docs/en/fact-sheet/TEA20161995FSDAS.pdf documents 736675474163315314 Fact Sheet N en None Y pdf 1 N N NXP GreenChip ICs TEA2016 and TEA1995 207.1 KB TEA20161995FSDAS N 1567543850801693610125 User Guide 5 2021-01-13 1610566734597739753262 1 Jan 27, 2021 User Guide User Guide This page will help guide you through the process of learning about your RDK01DB1563 board. Y GS-RDK01DB1563 English 0 User Guide 2025-03-05 /document/guide/getting-started-with-the-rdk01db1563:GS-RDK01DB1563 Getting Started with the RDK01DB1563 GS-RDK01DB1563 TSP 132339537837198660 User Guide en Y t792 HTML GS-RDK01DB1563 1610566734597739753262 2021-01-12 /docs/en/user-guide/UM11521.pdf 1610483320499711234394 TSP 2 Jan 12, 2021 User Guide User Guide This document provides the content for the getting started webpages for the TEA2016 development kit RDK01DB1563. Each chapter in this document provides the content of a chapter on the get started webpage. Y None /docs/en/user-guide/UM11521.pdf English 3398527 None User Guide 2022-12-07 /docs/en/user-guide/UM11521.pdf UM11521, RDK01DB1563 getting started N /docs/en/user-guide/UM11521.pdf documents 132339537837198660 User Guide N en None Y t792 pdf 1 N N UM11521, RDK01DB1563 getting started 3.4 MB UM11521 N 1610483320499711234394 2020-01-30 /secured/assets/documents/en/user-guide/UM11235.pdf 1580409962826709534761 TSP 3 Jun 27, 2019 User Guide User Guide The TEA2016DB1514 USB-I2C interface board is a development tool to enable working with theTEA2016 setting by use of a computer. Y Moderated Software Licensing For Download Without FAE /secured/assets/documents/en/user-guide/UM11235.pdf English 1881482 None User Guide 2023-04-24 /webapp/Download?colCode=UM11235&appType=moderatedWithoutFAE TEA2016DB1514 USB to I2C hardware interface user manual Y /secured/assets/documents/en/user-guide/UM11235.pdf documents 132339537837198660 User Guide N en Extended Y t792 pdf 1 Y N TEA2016DB1514 USB to I2C hardware interface user manual 1.9 MB UM11235 N 1580409962826709534761 2021-01-12 /docs/en/user-guide/UM11527.pdf 1610483321371723296028 TSP 4 Jan 12, 2021 User Guide User Guide This quick start guide describes how to get started with the RDK01DB1563 programming kit. Y None /docs/en/user-guide/UM11527.pdf English 844601 None User Guide 2022-12-07 /docs/en/user-guide/UM11527.pdf UM11527, RDK01DB1563 USB-I2C interface kit quick start guide N /docs/en/user-guide/UM11527.pdf documents 132339537837198660 User Guide N en None Y t792 pdf 1 N N UM11527, RDK01DB1563 USB-I2C interface kit quick start guide 844.6 KB UM11527 N 1610483321371723296028 2020-01-30 /secured/assets/documents/en/user-guide/UM11219.pdf 1580409961526718973206 TSP 5 Jul 30, 2019 User Guide User Guide The Ringo TEA2016 development software with GUI is a development tool that enables working with the TEA2016 settings using a computer and the TEA2016DB1514 USB I2C interface board. Y Moderated Software Licensing For Download Without FAE /secured/assets/documents/en/user-guide/UM11219.pdf English 8943473 None User Guide 2023-04-24 /webapp/Download?colCode=UM11219&appType=moderatedWithoutFAE Ringo TEA2016 development software with GUI user manual Y /secured/assets/documents/en/user-guide/UM11219.pdf documents 132339537837198660 User Guide N en Extended Y t792 pdf 1.05 Y N Ringo TEA2016 development software with GUI user manual 8.9 MB UM11219 N 1580409961526718973206 true Y Tools

Documentation

Quick reference to our documentation types.

Filters

7 documents

Compact List

Application Note (1)
Fact Sheet (1)
User Guide (5)

Related Hardware

Quick reference to our board types.
Filters

5 hardware offerings

Software

Quick reference to our software types.

Filters

4 software files

  • BSPs and Device Drivers

    Ringo v135 TEA2016ATT x86 for 32-Bit Windows OS

    ZIPRev 1Jan 17, 2020349.61 MBRINGO-V135-TEA2016AAT-X86
    Account Required
    Download
  • BSPs and Device Drivers

    Ringo v141 TEA2016ATT x86 for 32-Bit Windows OS

    ZIPRev 1Apr 29, 2022341.80 MBRINGO-V141-TEA2016AAT-X86
    Account Required
    Download
  • BSPs and Device Drivers

    Ringo v135 TEA2016ATT x64 for 64-Bit Windows OS

    ZIPRev 1Jan 17, 2020351.56 MBRINGO-V135-TEA2016AAT-X64
    Account Required
    Download
  • BSPs and Device Drivers

    Ringo v141 TEA2016ATT x64 for 64-Bit Windows OS

    ZIPRev 1Apr 29, 2022341.80 MBRINGO-V141-TEA2016AAT-X64
    Account Required
    Download
