Getting Started with the RDK01DB1563
Contents of this document
-
Out of the Box
-
Get Hardware
-
Get Software
-
Configure Hardware
Sign in to save your progress. Don't have an account? Create one.
Purchase your RDK01DB1563
1. Out of the Box
The NXP analog product development boards provide an easy-to-use platform for evaluating NXP products. The boards support a range of analog, mixed-signal and power solutions. They incorporate monolithic integrated circuits and system-in-package devices that use proven high-volume technology. NXP products offer a smaller form factor, reduced component counts, lower cost and improved performance in powering state-of- the-art systems.
This page will guide you through the process of setting up and using the RDK01DB1563 interface board.
1.1 Kit contents and packing list
The RDK01DB1563 contents include:
- TEA2016DB1514v2 USB-I2C interface board
- USB, 3-pin and 6-pin connection cables
1.2 Additional hardware
In addition to the kit contents, the following hardware is necessary or beneficial when working with this kit.
- TEA2016DB1561 programming board, TEA2016DB1519v2 demo board (available in RDK01DB1561 or RDK01DB1562 kit) or a power supply using a TEA2016AATdev IC to connect the IC to a PC
- Windows PC and USB for parameter modifications via software and interface
1.3 Windows PC workstation
- PC with a Microsoft Windows operating system. Software tested for Windows 7 and Windows 10. However, it also works on Windows XP, Windows Vista and Windows 8
- 64-bit and 32-bit versions of Ringo software available for download
1.4 Software
Software is necessary to work with this evaluation board. All listed software is available on the evaluation board's information page at RDK01DB1563.
1.5 User manual
Refer to UM11527, RDK01DB1563 interface board and Ringo software package for additional details on the featured components and board configuration.
The Ringo software package contains documents, videos and tools.
Get Hardware
2.1 Board description
The TEA2016DB1514 interface board is a development tool that enables setting TEA2016 controller parameters from a computer. The available Ringo TEA2016 development software provides a graphical user interface (GUI) that can be installed on a computer.
The interface and software are intended for engineering work in lab environment as part of power supply development. It is not suitable for consumer or industrial purpose usage.
2.2 Additional board support
Refer to UM11527, RDK01DB1563 interface board and Ringo software package for additional software details and UM11235 (extended user manual for the interface board).
2. Get Software

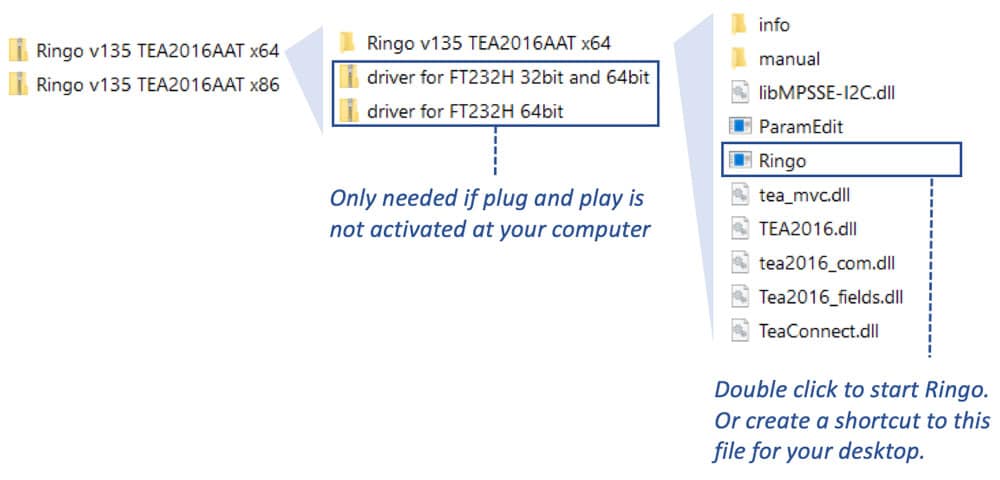

Copy the zip file from the USB stick or download it to a folder on your computer. The x64 is for 64-bit operating systems; the x86 is for 32-bit operating systems. Unzip the file.
For the Ringo software to work, the FT232H driver for the USB-I2C interface needs to be installed. This installation happens automatically when you connect the interface for the first time via USB. If the driver is not installed automatically, you can use the included drivers to do this manually (a video on the get started page shows how to do this).
When the FT232H driver is not installed, the Ringo software does not work.
The Ringo program needs no installation. It can be started by double-clicking on Ringo.exe. Keep the other files and folders in the same directory because Ringo makes use of it.
3.1 User manual and tutorial videos for the Ringo software

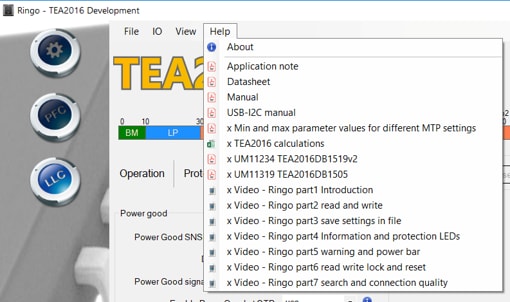

A user manual and videos are included in the Ringo GUI software for easy access to get familiar with using the software and getting to know the functions that are available.
Videos are available in Ringo for viewing on your local video player or via the NXP website in your browser:
- Introduction
- Read and write
- Information and protection
- Save settings in file
- Warning and power bar
- Read write lock and reset
- Search and connection quality
Additional videos are available at TEA2016AAT: Digital Controller for High-Efficiency Resonant Power Supply
3.2 Additional software support
Refer to UM11527, RDK01DB1563 interface board and Ringo software package for additional software details.
4. Configure Hardware

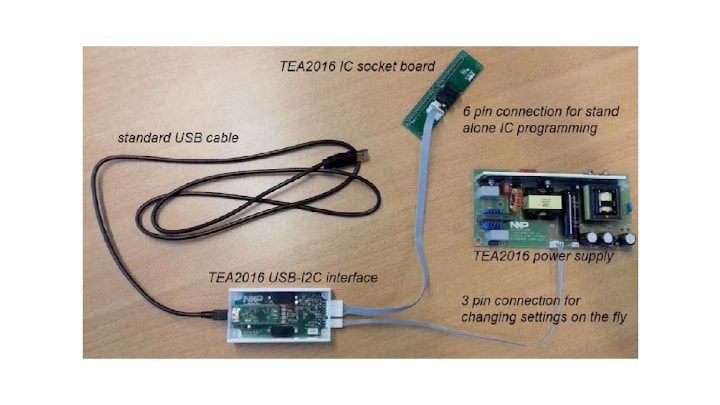

Power supply setup:
- The TEA2016DB1519v2 demo board contains a TEA2016AATdev sample that can communicate via I2C during operation. It is connected to the interface with a 3-pin connection.
IC programming board setup:
- Connecting a TEA2016DB1561 with a 6-pin cable provides reading or programming for TEA2016AAT ICs. If a TEA2016AATdev IC version is used, connect the 3-pin cable as well.
The switch on the interface selects the 3-pin or 6-pin connection.
4.1 Additional board support
Refer to UM11527, RDK01DB1563 interface board Ringo software package for additional software details and UM11235 (extended user manual for the interface board).
Design Resources
Product summary page
The product summary page for TEA2016AAT is available at https://www.nxp.com/TEA2016AAT.
Tool summary page
The tool summary page for RDK01DB1561 board is at http://www.nxp.com/RDK01DB1563.
The page provides overview information, technical and functional specifications, ordering information, documentation and software. The Get Started guide provides quick-reference information applicable to using the RDK01DB1563 board, including the downloadable assets.
Additional Resources
In addition to our TEA2016AAT: digital LLC+PFC combo controller for resonant power supply, you may also want to visit:
Gate driver pages:
Hardware pages:
Software pages:
Support
FAQs
Ringo Software
Q: Ringo.exe does not start.
- A1: The USB-I2C interface driver (FT232) needs to be installed on the computer to enable Ringo software to work.
- A2: Make sure you are using a compatible version: 32bit or 64bit.
- A3: Ringo is made for Windows operating systems. On other operating systems, you can run it via a windows emulator.
- A4: It may be needed to connect the USB-I2C interface again (one time) after a Windows update
Q: Can I work with Ringo without the interface connected?
- A1: Yes, when the USB-I2C interface driver (FT232) is already installed.
- A2: To get started the USB-I2C interface driver (FT232) needs to be installed on the computer to enable Ringo software to work. For this the interface needs to be connected (one time) to install the driver.
Q: When I connect the USB-I2C interface, it does not work.
- A1: A driver is needed to make the FT323 module operational. The driver is often automatically installed (plug and play) but sometimes a manual install is required. Several drivers are included in the Ringo zip package. Watch the video “installing USB driver manually” on the NXP website.
- A2: When you installed the driver and still it does not work: completely ('delete the driver software for this device') remove the driver and select another driver included or visit the FTDI chip website for more information or driver versions.
USB - I2C Interface
Q: Can I change settings in an TEA2016AATdev (development type) IC on the power supply when the power supply is not running?
- A1: Yes. When you apply a low mains voltage of 50Vac the IC is supplied by the HV source and can communicate via I²C. But the power supply does not start because the mains voltage is still too low
- A2: Yes. If you (temporarily) connect an external power supply of 20 V to SUPIC, the IC is operational without starting the power supply
Q: Can I change settings in a TEA2016AAT IC (non development type) on the power supply?
- Yes, but it is more complicated. Application note AN12330 shows how to do it in section 15.5.3.2. You cannot make changes during operation because the pins for I²C communication have a different function during operation
Q: There is no communication with the IC.
- A1: Check if the switch on the interface is in the correct position: 3 pin or 6pin
- A2: Check if the correct cable is connected (or both when using the programming board)
- A3: Check if signal disturbance is blocking communication
Q: I want to make a modification or repair on the board. Is there a circuit diagram?
- A1: The circuit diagram is included in User Manual UM11235. This document is available in the document folder on the USB stick or in the help tab of Ringo
Q: What is the function of the LEDs on the board?
- A1: The Ringo software can use them for indicating that the I²C connection is OK. The indication differs between Ringo versions. In general, slow blinking indicates no communication with the IC and fast blinking indicates correct communication with the IC
RDK01DB1563 Kit
Q: Can I also work with TEA2016AAT without buying an extra kit?
- A1: Yes, you can use the TEA2016 IC in a power supply as with other IC types. In this case, you make use of the IC standard parameter settings.
- A2: When you want to make use of modifying TEA2016 settings for optimizing your design, you need the software and an interface board.
