Arm® Cortex®-A5-Based Microprocessors with 1.5MB SRAM, LCD, Security, 2x Ethernet and L2 Switch

VF3xx Active

Roll over image to zoom in

The VFxxx VF3xx family is a single-core (Arm® Cortex®-A5) solution with 1.5 MB on-chip SRAM, dual XiP quad SPI memory interfaces, LCD controller, high-speed USB with PHY, dual Ethernet with an L2 switch, and a digital video camera interface. They are a good fit for solutions that can leverage the large 1.5 MB on-chip SRAM to eliminate costly external DDR memory.

VFxxx devices are ideal for applications including simple HMI in appliances and industrial machines, secure control of infrastructure and manufacturing equipment, energy conversion applications such as motor drives and power inverters, ruggedized wired and wireless connectivity, and control of mobile battery-operated systems such as robots and industrial vehicles. VFxxx devices also provide a powerful combination of on-chip encryption, secure boot, anti-tamper and anti-clone capabilities to secure sensitive or critical infrastructure applications such as smart grid or industrial control.

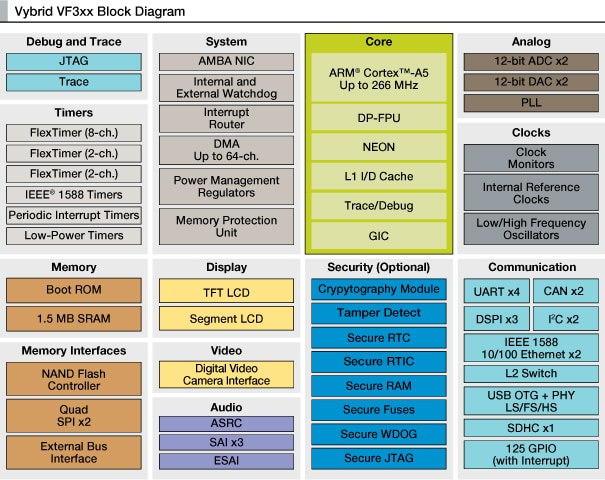

Block Diagram

VF3xx Block Diagram Thumbnail

Vybrid<sup>&#174;</sup> VF3xx Block Diagram
Get diagram PDF

Features

  • Cortex-A5
  • 1.5 MB on-chip SRAM
  • Dual Ethernet 10/100 MAC with L2 switch
  • Digital video camera interface
  • Display controller supporting resolutions up to WQVGA
  • High-assurance boot with crypto acceleration
  • NAND Flash controller and dual quad-SPI with Execute-In-Place (XIP)
  • Dual 12-bit ADC and DAC; SDIO

Buy/Parametrics

2 results

Include 0 NRND

Part

Show description

Order

CAD Model

Status

Package Type

Package Termination Count

Budgetary Price excluding tax

Core Type

Core: Number of cores (SPEC)

Operating Frequency [Max] (MHz)

RAM (kB)

UART

CAN

I2C

MVF30NN151CKU26
Data Sheet

Active

HLQFP176

176

1K @ US$18.19

Arm Cortex-A5

1

260

1500

4

2

2

MVF30NS151CKU26
Data Sheet

Active

HLQFP176

176

1K @ US$18.86

Arm Cortex-A5

1

260

1500

4

2

2
