Arm® Cortex®-A5 + Cortex-M4 MPUs, 1.5 MB SRAM, LCD, Security, Ethernet, L2 Switch

VF6xx Active

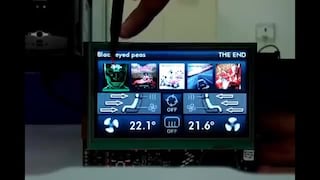

2D Graphics Display on VFxxx Controller Demo

Click over video to play

The VF6xx family is a heterogeneous dual-core solution that combines the Arm® Cortex®-A5 and Cortex-M4 cores. The VF6xx devices include:

  • Dual USB 2.0 OTG controllers with integrated PHY Dual 10/100 Ethernet controllers with L2 switch.
  • Up to 1.5 MB of on-chip SRAM and a rich suite of communication, connectivity and human-machine interfaces (HMI).
  • Anti-clone, anti-tamper, secure boot and advanced encryption hardware deliver the highest level of security and accuracy.
  • Multiple serial interfaces, such as UARTs with support for ISO 7816 SIM/smart cards, SPI and I2C and dual CAN module.
  • Interface to a variety of external peripherals and memories for system expansion and data storage.

Block Diagram

VF6xx Block Diagram

VFxxx VF6xx Block Diagram
Get diagram PDF

Features

  • Dual heterogeneous core: Cortex-A5 and Cortex-M4
  • Optional 512 KB L2 Cache
  • 1.5 MB on-chip SRAM (1.0 MB when L2 Cache is selected)
  • Dual USB 2.0 OTG with integrated PHY
  • Dual Ethernet 10/100 MAC with L2 switch
  • Both digital and analog video camera interfaces
  • Dual display controllers supporting resolutions up to SVGA or one display up to XGA (1024x768)
  • High-assurance boot with crypto acceleration
  • 800 MHz DDR3 and LPDDR2 support with 8-bit ECC protection
  • NAND Flash controller and dual quad-SPI with Execute-In-Place (XIP)
  • Dual 12-bit ADC and DAC; dual SDIO

Buy/Parametrics

8 results

Include 0 NRND

Part

Show description

Order

CAD Model

Status

Package Type

Package Termination Count

Budgetary Price excluding tax

Core Type

Core: Number of cores (SPEC)

Operating Frequency [Max] (MHz)

RAM (kB)

UART

CAN

I2C

MVF60NN151CMK40
Data Sheet

Active

LFBGA364

364

1K @ US$21.06

Arm Cortex-M4

2

400

1500

6

2

4

MVF60NN151CMK50
Data Sheet

Active

LFBGA364

364

1K @ US$21.43

Arm Cortex-M4

2

500

1500

6

2

4

MVF60NS151CMK40
Data Sheet

Active

LFBGA364

364

1K @ US$21.75

Arm Cortex-M4

2

400

1500

6

2

4

MVF60NS151CMK50
Data Sheet

Active

LFBGA364

364

1K @ US$22.10

Arm Cortex-M4

2

500

1500

6

2

4

MVF61NN151CMK50
Data Sheet

Active

LFBGA364

364

1K @ US$22.57

Arm Cortex-M4

2

500

1000

6

2

4

MVF61NN152CMK50
Data Sheet

Active

LFBGA364

364

1K @ US$22.57

—

—

—

—

—

—

—

MVF61NS151CMK50
Data Sheet

Active

LFBGA364

364

1K @ US$23.24

Arm Cortex-M4

2

500

1000

6

2

4

MVF62NN151CMK40
Data Sheet

Active

LFBGA364

364

1K @ US$21.06

Arm Cortex-M4

2

400

1500

6

2

4

N true 0 PSPVF6xxen 17 Application Note Application Note t789 7 Data Sheet Data Sheet t520 1 Errata Errata t522 1 Fact Sheet Fact Sheet t523 1 Reference Manual Reference Manual t877 2 Technical Notes Technical Notes t521 1 User Guide User Guide t792 4 en_US 1 1 0 Chinese 1332537782000716171604zh PSP 183.8 KB None None documents None 1332537782000716171604 /docs/zh/fact-sheet/VYBRIDVF6FS.pdf 183777 /docs/zh/fact-sheet/VYBRIDVF6FS.pdf VFXXXVF6FS documents N N 2016-10-31 VFxxx VF6xx Family - Fact Sheet /docs/zh/fact-sheet/VYBRIDVF6FS.pdf /docs/zh/fact-sheet/VYBRIDVF6FS.pdf /docs/zh/fact-sheet/VYBRIDVF6FS.pdf Fact Sheet N Y 736675474163315314 2022-12-07 N zh Mar 23, 2012 736675474163315314 Fact Sheet N VFXXX VF6xx系列 - 产品简介 6 English The VFxxxx VF6xx family features a heterogeneous dual-core solution that combines the Arm&#174; Cortex&#8482;-A5 and Cortex&#8482;-M4 cores. The family also features dual USB 2.0 OTG controllers with integrated PHY, dual 10/100 Ethernet controllers with L2 switch, up to 1.5 MB of on-chip SRAM and a rich suite of communication, connectivity and human-machine interfaces (HMI). In addition, anti-clone, anti-tamper, secure boot and advanced encryption hardware deliver the highest level of security and accuracy. 1332537782000716171604 PSP 183.8 KB None None documents None 1332537782000716171604 /docs/en/fact-sheet/VFXXXVF6FS.pdf 183777 /docs/en/fact-sheet/VFXXXVF6FS.pdf VFXXXVF6FS N N 2016-10-31 VFxxx VF6xx Family - Fact Sheet /docs/en/fact-sheet/VFXXXVF6FS.pdf /docs/en/fact-sheet/VFXXXVF6FS.pdf Fact Sheet N Y 736675474163315314 2022-12-07 pdf N en Feb 11, 2020 Fact Sheet t523 Fact Sheet Fact Sheet Y N VFxxx VF6xx Family - Fact Sheet false en_US en Data Sheet Data Sheet 1 2 10 English VYBRIDFSERIESEC: VF6xx, VF5xx, VF3xx Data Sheet. This document provides electrical characteristics for the Vybrid<sup>&#174;</sup> F Series of microcontrollers. 1369942390871751273117 PSP 1.7 MB None None documents None 1369942390871751273117 /docs/en/data-sheet/VYBRIDFSERIESEC.pdf 1707333 /docs/en/data-sheet/VYBRIDFSERIESEC.pdf VYBRIDFSERIESEC documents N N 2018-01-11 VF6xx, VF5xx, VF3xx - Data Sheet /docs/en/data-sheet/VYBRIDFSERIESEC.pdf /docs/en/data-sheet/VYBRIDFSERIESEC.pdf Data Sheet N 980000996212993340 2023-09-18 pdf N en Sep 18, 2023 980000996212993340 Data Sheet Y N VF6xx, VF5xx, VF3xx - Data Sheet Reference Manual Reference Manual 2 3 0 English This document describes the features, architecture, and programming model of the NXP&#13;&#10;VFxxx Controller microprocessor (MPU). This document is common for the VFxxx Controller F-Series and R-Series. However that some functions are only available on the F-series parts and others only on R-series parts. 1475814515746722530753 PSP 50.0 MB None None documents None 1475814515746722530753 /docs/en/reference-manual/VFXXXRM.pdf 49998239 /docs/en/reference-manual/VFXXXRM.pdf VFXXXRM documents N N 2016-11-09 VFxxx Controller Reference Manual /docs/en/reference-manual/VFXXXRM.pdf /docs/en/reference-manual/VFXXXRM.pdf Reference Manual N 500633505221135046 2025-03-08 pdf N en Oct 6, 2016 500633505221135046 Reference Manual Y N VFxxx Controller Reference Manual 4 1 English This document describes VFxxx security features and modules. This only includes the&#13;&#10;security features and associated details for VFxxx. For any other details related to VFxxx refer VFxxx Reference Manual. For additional information about VFxxx, see the VFxxx Reference Manual (VFXXXRM).VFxxx incorporates a range of security features which can be used individually or in&#13;&#10;concert to underpin the platform security architecture. Most of the VFxxx 1371671654804715930870 PSP 11.2 MB Moderated Software Licensing For Download 1371830381085697505521 documents Extended 1371671654804715930870 /secured/assets/documents/en/reference-manual/VFXXXSRM.pdf 11226132 /secured/assets/documents/en/reference-manual/VFXXXSRM.pdf VFXXXSRM documents Y N 2016-10-31 VFxxx Security Reference Manual /webapp/sps/download/mod_download.jsp?colCode=VFXXXSRM&appType=moderated /secured/assets/documents/en/reference-manual/VFXXXSRM.pdf Reference Manual N 500633505221135046 2023-05-29 pdf Y en Jun 6, 2013 500633505221135046 Reference Manual Y N VFxxx Security Reference Manual Application Note Application Note 7 5 0 English VFxxx controller solutions are built on new asymmetrical multiprocessing architecture using Arm<sup>&#174;</sup>&#174; cores. The purpose of this application note is to provide some details of the VFxxx controller solutions system architecture. 1405355448829718570171 PSP 770.6 KB None None documents None 1405355448829718570171 /docs/en/application-note/AN4947.pdf 770627 /docs/en/application-note/AN4947.pdf AN4947 documents N N 2016-10-31 Understanding VFxxx Architecture /docs/en/application-note/AN4947.pdf /docs/en/application-note/AN4947.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Jul 14, 2014 645036621402383989 Application Note Y N Understanding VFxxx Architecture 6 0 English VFxxx controller solutions are built on the new&#13;&#10;asymmetrical multiprocessing architecture using Arm<sup>&#174;</sup>&#13;&#10;cores. The purpose of this application note is to provide an&#13;&#10;overview of the power consumption VFxxx controller&#13;&#10;solutions. The document is focused on normal run modes.&#13;&#10;Several VFxxx use cases were defined and the power&#13;&#10;consumptions measured using The Tower System&#13;&#10;module (TWR-VF65GS10). To increase power efficiency,&#13;&#10;several po 1380749321014731519258 PSP 1.2 MB None None documents None 1380749321014731519258 /docs/en/application-note/AN4807.pdf 1160230 /docs/en/application-note/AN4807.pdf AN4807 documents N N 2016-10-31 VFxxx Power Consumption and Options - AN4807 /docs/en/application-note/AN4807.pdf /docs/en/application-note/AN4807.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Oct 2, 2013 645036621402383989 Application Note Y N VFxxx Power Consumption and Options - AN4807 7 0 English The VFxxx family features a heterogeneous dual-core solution that combines the Arm<sup>&#174;</sup> Cortex<sup>&#174;</sup> -A5 and Arm Cortex<sup>&#174;</sup> -M4 cores. The family also features dual USB 2.0 OTG controllers with integrated PHY, dual 10/100 Ethernet controllers with L2 switch, 1.5 MB of on-chip SRAM and a rich suite of communication, connectivity and human-machine interfaces (HMI). The VF6xx family is pin-and software-compatible with the VF[3,5,6] families. VFxxx VF6xx devices include multiple serial interfaces including UARTs 1371065276603710447722 PSP 467.1 KB None None documents None 1371065276603710447722 /docs/en/application-note/AN4755.pdf 467125 /docs/en/application-note/AN4755.pdf AN4755 documents N N 2016-10-31 AN4755:CAN Booting Procedure for VFxxx Controller Solutions - Application Note /docs/en/application-note/AN4755.pdf /docs/en/application-note/AN4755.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Jun 26, 2013 645036621402383989 Application Note Y N AN4755:CAN Booting Procedure for VFxxx Controller Solutions - Application Note 8 0 English AN4651: Each Animation and Compositing Engine (2D-ACE) module on the VFxxx MCU family is capable of driving a TFT LCD panel of different sizes. 1359384905641705695317 PSP 234.5 KB None None documents None 1359384905641705695317 /docs/en/application-note/AN4651.pdf 234456 /docs/en/application-note/AN4651.pdf AN4651 documents N N 2016-10-31 AN4651, TFT Panel Support in the VFxxx Microcontroller Family - Application Notes /docs/en/application-note/AN4651.pdf /docs/en/application-note/AN4651.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Mar 23, 2013 645036621402383989 Application Note Y N AN4651, TFT Panel Support in the VFxxx Microcontroller Family - Application Notes 9 0 English The VFxxx family of microcontrollers features up to two independent display peripherals that allow it to drive up to two TFT LCD panels. The 2D-ACE module features a rich set of capabilities that allow you to build engaging and dynamic graphic content from pre-rendered images and display this content on a wide range of TFT LCD panels. This application note explains the steps to configure and use the 2D-ACE with TFT LCD panels and how to display and blend graphics on each panel. See nxp.com for more d 1358539513172704485942 PSP 311.5 KB None None documents None 1358539513172704485942 /docs/en/application-note/AN4647.pdf 311527 /docs/en/application-note/AN4647.pdf AN4647 documents N N 2016-10-31 Configuring and Using the 2D-ACE on VFxxx Microcontrollers /docs/en/application-note/AN4647.pdf /docs/en/application-note/AN4647.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Jan 18, 2013 645036621402383989 Application Note Y N Configuring and Using the 2D-ACE on VFxxx Microcontrollers 10 0 English This application note walks through an example of generating an inverted data enable (DE) signal for a TFT panel in order to demonstrate how the TCON module might be used to avoid adding external logic to interface to a TFT panel. 1353481315213729879315 PSP 297.4 KB None None documents None 1353481315213729879315 /docs/en/application-note/AN4635.pdf 297410 /docs/en/application-note/AN4635.pdf AN4635 documents N N 2016-10-31 Using the VFxxx TCON Module /docs/en/application-note/AN4635.pdf /docs/en/application-note/AN4635.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Nov 20, 2012 645036621402383989 Application Note Y N Using the VFxxx TCON Module 11 0 English The QuadSPI module has had some significant changes made for implementation on the Vybrid<sup>&#174;</sup> MCU. These changes will be discussed in this application note in comparison to the QuadSPI versions implemented on MPC5606S and MPC5645S MCUs, and some code examples will be shown. 1338827711778724735662 PSP 349.9 KB None None documents None 1338827711778724735662 /docs/en/application-note/AN4512.pdf 349924 /docs/en/application-note/AN4512.pdf AN4512 documents N N 2016-10-31 Quad Serial Peripheral Interface (QuadSPI) Module Updates /docs/en/application-note/AN4512.pdf /docs/en/application-note/AN4512.pdf Application Note N 645036621402383989 2022-12-07 pdf N en May 15, 2012 645036621402383989 Application Note Y N Quad Serial Peripheral Interface (QuadSPI) Module Updates User Guide User Guide 4 12 1 English The purpose of this document is to help hardware engineers design and test their boards based on the VFxxx series of processors. It provides information on design checklists and&#13;&#10;board layout recommendations to ensure first-pass success and pave ways to avoid board bring-up problems. It also provides information on board-level testing and simulation such as properly configuring the JTAG tools, using BSDL for board-level testing, using the IBIS model for electrical integrity simulation, and more. 1415817969986714383187 PSP 2.4 MB None None documents None 1415817969986714383187 /docs/en/user-guide/VFXXXHDUG.pdf 2432170 /docs/en/user-guide/VFXXXHDUG.pdf VFXXXHDUG documents N N 2016-10-31 Hardware Development Guide for VFxxx Family of MCUs /docs/en/user-guide/VFXXXHDUG.pdf /docs/en/user-guide/VFXXXHDUG.pdf User Guide N 132339537837198660 2023-06-19 pdf N en May 14, 2015 132339537837198660 User Guide Y N Hardware Development Guide for VFxxx Family of MCUs 13 1.0 English Automotive Dashboard system with cluster and infotainment screens 1431444966758692556461 PSP 1.4 MB None None documents None 1431444966758692556461 /docs/en/user-guide/VFXXX-CDB-QSG.pdf 1401419 /docs/en/user-guide/VFXXX-CDB-QSG.pdf VFXXX-CDB-QSG documents N N 2016-10-31 VFxxx Car Dashboard Quick Start Guide /docs/en/user-guide/VFXXX-CDB-QSG.pdf /docs/en/user-guide/VFXXX-CDB-QSG.pdf User Guide N 132339537837198660 2023-06-19 pdf N en Apr 20, 2015 132339537837198660 User Guide Y N VFxxx Car Dashboard Quick Start Guide 14 0 English This user&#8217;s guide details the setup and configuration of the NXP Automotive Evaluation Board. The EVB is intended to &#13;&#10;provide a mechanism for easy customer evaluation of the heterogeneous dual-core VFxxx family, and to facilitate hardware and software development.&#13;&#10; 1416347471909721901579 PSP 2.8 MB None None documents None 1416347471909721901579 /docs/en/user-guide/EVBVF522R3UG.pdf 2778610 /docs/en/user-guide/EVBVF522R3UG.pdf EVBVF522R3UG documents N N 2016-10-31 EVB-VF522R3 Platform User’s Guide /docs/en/user-guide/EVBVF522R3UG.pdf /docs/en/user-guide/EVBVF522R3UG.pdf User Guide N 132339537837198660 2023-06-19 pdf N en Nov 18, 2014 132339537837198660 User Guide Y N EVB-VF522R3 Platform User’s Guide 15 1.2 English The TWR-VF65GS10 Tower<sup>&#174;</sup> Controller Module is&#13;&#10;compatible with the Tower System and features the heterogeneous dual-core VFxxx VF6xx. 1409242699366726207682 PSP 1.5 MB None None documents None 1409242699366726207682 /docs/en/user-guide/TWRVF65GS10UG.pdf 1473248 /docs/en/user-guide/TWRVF65GS10UG.pdf TWRVF65GS10UG documents N N 2016-10-31 TWR-VF65GS10 Tower Module User's Guide /docs/en/user-guide/TWRVF65GS10UG.pdf /docs/en/user-guide/TWRVF65GS10UG.pdf User Guide N 132339537837198660 2023-06-18 pdf N en Aug 28, 2014 132339537837198660 User Guide Y N TWR-VF65GS10 Tower Module User's Guide Technical Notes Technical Notes 1 16 0 English EB808: This bulletin contains performance measurement data of the Asynchronous Sample Rate Converter (ASRC). The ASRC is used in several NXP products including DSP, i.MX, and VFxxx products as a part of the audio subsystem. 1414079841632722917056 PSP 2.1 MB None None documents None 1414079841632722917056 /docs/en/engineering-bulletin/EB808.pdf 2125044 /docs/en/engineering-bulletin/EB808.pdf EB808 documents N N 2016-10-31 VFxxx ASRC Performance: Audio Analyzer Measurements - EB808 /docs/en/engineering-bulletin/EB808.pdf /docs/en/engineering-bulletin/EB808.pdf Technical Notes N 389245547230346745 2022-12-07 pdf N en Oct 23, 2014 389245547230346745 Technical Notes Y N VFxxx ASRC Performance: Audio Analyzer Measurements - EB808 Errata Errata 1 17 Rev 09 JUN 2014 English VFxxx_2N02G: This report applies to mask 2N02G for VFxxx product. 1402644771454710329345 PSP 312.2 KB None None documents None 1402644771454710329345 /docs/en/errata/VFXXX_2N02G.pdf 312200 /docs/en/errata/VFXXX_2N02G.pdf VFXXX_2N02G documents N N 2016-10-31 VFxxx_2N02G, Mask Set Errata for Mask 2N02G - Chip Errata /docs/en/errata/VFXXX_2N02G.pdf /docs/en/errata/VFXXX_2N02G.pdf Errata N 155452329886410597 2022-12-07 pdf N en Jun 16, 2014 155452329886410597 Errata Y N VFxxx_2N02G, Mask Set Errata for Mask 2N02G - Chip Errata false 0 VF6xx downloads en true 1 Y PSP Application Note 7 /docs/en/application-note/AN4947.pdf 2016-10-31 1405355448829718570171 PSP 5 Jul 14, 2014 Application Note VFxxx controller solutions are built on new asymmetrical multiprocessing architecture using Arm<sup>&#174;</sup>&#174; cores. The purpose of this application note is to provide some details of the VFxxx controller solutions system architecture. None /docs/en/application-note/AN4947.pdf English documents 770627 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4947.pdf Understanding VFxxx Architecture /docs/en/application-note/AN4947.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N Understanding VFxxx Architecture 770.6 KB AN4947 N 1405355448829718570171 /docs/en/application-note/AN4807.pdf 2016-10-31 1380749321014731519258 PSP 6 Oct 2, 2013 Application Note VFxxx controller solutions are built on the new&#13;&#10;asymmetrical multiprocessing architecture using Arm<sup>&#174;</sup>&#13;&#10;cores. The purpose of this application note is to provide an&#13;&#10;overview of the power consumption VFxxx controller&#13;&#10;solutions. The document is focused on normal run modes.&#13;&#10;Several VFxxx use cases were defined and the power&#13;&#10;consumptions measured using The Tower System&#13;&#10;module (TWR-VF65GS10). To increase power efficiency,&#13;&#10;several po None /docs/en/application-note/AN4807.pdf English documents 1160230 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4807.pdf VFxxx Power Consumption and Options - AN4807 /docs/en/application-note/AN4807.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N VFxxx Power Consumption and Options - AN4807 1.2 MB AN4807 N 1380749321014731519258 /docs/en/application-note/AN4755.pdf 2016-10-31 1371065276603710447722 PSP 7 Jun 26, 2013 Application Note The VFxxx family features a heterogeneous dual-core solution that combines the Arm<sup>&#174;</sup> Cortex<sup>&#174;</sup> -A5 and Arm Cortex<sup>&#174;</sup> -M4 cores. The family also features dual USB 2.0 OTG controllers with integrated PHY, dual 10/100 Ethernet controllers with L2 switch, 1.5 MB of on-chip SRAM and a rich suite of communication, connectivity and human-machine interfaces (HMI). The VF6xx family is pin-and software-compatible with the VF[3,5,6] families. VFxxx VF6xx devices include multiple serial interfaces including UARTs None /docs/en/application-note/AN4755.pdf English documents 467125 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4755.pdf AN4755:CAN Booting Procedure for VFxxx Controller Solutions - Application Note /docs/en/application-note/AN4755.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N AN4755:CAN Booting Procedure for VFxxx Controller Solutions - Application Note 467.1 KB AN4755 N 1371065276603710447722 /docs/en/application-note/AN4651.pdf 2016-10-31 1359384905641705695317 PSP 8 Mar 23, 2013 Application Note AN4651: Each Animation and Compositing Engine (2D-ACE) module on the VFxxx MCU family is capable of driving a TFT LCD panel of different sizes. None /docs/en/application-note/AN4651.pdf English documents 234456 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4651.pdf AN4651, TFT Panel Support in the VFxxx Microcontroller Family - Application Notes /docs/en/application-note/AN4651.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N AN4651, TFT Panel Support in the VFxxx Microcontroller Family - Application Notes 234.5 KB AN4651 N 1359384905641705695317 /docs/en/application-note/AN4647.pdf 2016-10-31 1358539513172704485942 PSP 9 Jan 18, 2013 Application Note The VFxxx family of microcontrollers features up to two independent display peripherals that allow it to drive up to two TFT LCD panels. The 2D-ACE module features a rich set of capabilities that allow you to build engaging and dynamic graphic content from pre-rendered images and display this content on a wide range of TFT LCD panels. This application note explains the steps to configure and use the 2D-ACE with TFT LCD panels and how to display and blend graphics on each panel. See nxp.com for more d None /docs/en/application-note/AN4647.pdf English documents 311527 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4647.pdf Configuring and Using the 2D-ACE on VFxxx Microcontrollers /docs/en/application-note/AN4647.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N Configuring and Using the 2D-ACE on VFxxx Microcontrollers 311.5 KB AN4647 N 1358539513172704485942 /docs/en/application-note/AN4635.pdf 2016-10-31 1353481315213729879315 PSP 10 Nov 20, 2012 Application Note This application note walks through an example of generating an inverted data enable (DE) signal for a TFT panel in order to demonstrate how the TCON module might be used to avoid adding external logic to interface to a TFT panel. None /docs/en/application-note/AN4635.pdf English documents 297410 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4635.pdf Using the VFxxx TCON Module /docs/en/application-note/AN4635.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N Using the VFxxx TCON Module 297.4 KB AN4635 N 1353481315213729879315 /docs/en/application-note/AN4512.pdf 2016-10-31 1338827711778724735662 PSP 11 May 15, 2012 Application Note The QuadSPI module has had some significant changes made for implementation on the Vybrid<sup>&#174;</sup> MCU. These changes will be discussed in this application note in comparison to the QuadSPI versions implemented on MPC5606S and MPC5645S MCUs, and some code examples will be shown. None /docs/en/application-note/AN4512.pdf English documents 349924 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4512.pdf Quad Serial Peripheral Interface (QuadSPI) Module Updates /docs/en/application-note/AN4512.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N Quad Serial Peripheral Interface (QuadSPI) Module Updates 349.9 KB AN4512 N 1338827711778724735662 Data Sheet 1 /docs/en/data-sheet/VYBRIDFSERIESEC.pdf 2018-01-11 1369942390871751273117 PSP 2 Sep 18, 2023 Data Sheet VYBRIDFSERIESEC: VF6xx, VF5xx, VF3xx Data Sheet. This document provides electrical characteristics for the Vybrid<sup>&#174;</sup> F Series of microcontrollers. None /docs/en/data-sheet/VYBRIDFSERIESEC.pdf English documents 1707333 None 980000996212993340 2023-09-18 N /docs/en/data-sheet/VYBRIDFSERIESEC.pdf VF6xx, VF5xx, VF3xx - Data Sheet /docs/en/data-sheet/VYBRIDFSERIESEC.pdf documents 980000996212993340 Data Sheet N en None Y pdf 10 N N VF6xx, VF5xx, VF3xx - Data Sheet 1.7 MB VYBRIDFSERIESEC N 1369942390871751273117 Errata 1 /docs/en/errata/VFXXX_2N02G.pdf 2016-10-31 1402644771454710329345 PSP 17 Jun 16, 2014 Errata VFxxx_2N02G: This report applies to mask 2N02G for VFxxx product. None /docs/en/errata/VFXXX_2N02G.pdf English documents 312200 None 155452329886410597 2022-12-07 N /docs/en/errata/VFXXX_2N02G.pdf VFxxx_2N02G, Mask Set Errata for Mask 2N02G - Chip Errata /docs/en/errata/VFXXX_2N02G.pdf documents 155452329886410597 Errata N en None Y pdf Rev 09 JUN 2014 N N VFxxx_2N02G, Mask Set Errata for Mask 2N02G - Chip Errata 312.2 KB VFXXX_2N02G N 1402644771454710329345 Fact Sheet 1 /docs/en/fact-sheet/VFXXXVF6FS.pdf 2016-10-31 1332537782000716171604 PSP 1 Feb 11, 2020 Fact Sheet Fact Sheet The VFxxxx VF6xx family features a heterogeneous dual-core solution that combines the Arm&#174; Cortex&#8482;-A5 and Cortex&#8482;-M4 cores. The family also features dual USB 2.0 OTG controllers with integrated PHY, dual 10/100 Ethernet controllers with L2 switch, up to 1.5 MB of on-chip SRAM and a rich suite of communication, connectivity and human-machine interfaces (HMI). In addition, anti-clone, anti-tamper, secure boot and advanced encryption hardware deliver the highest level of security and accuracy. None /docs/en/fact-sheet/VFXXXVF6FS.pdf English 183777 None Fact Sheet 2022-12-07 N /docs/en/fact-sheet/VFXXXVF6FS.pdf VFxxx VF6xx Family - Fact Sheet /docs/en/fact-sheet/VFXXXVF6FS.pdf documents 736675474163315314 Fact Sheet N Y en None Y t523 pdf 6 N N VFxxx VF6xx Family - Fact Sheet 183.8 KB VFXXXVF6FS N 1332537782000716171604 Reference Manual 2 /docs/en/reference-manual/VFXXXRM.pdf 2016-11-09 1475814515746722530753 PSP 3 Oct 6, 2016 Reference Manual This document describes the features, architecture, and programming model of the NXP&#13;&#10;VFxxx Controller microprocessor (MPU). This document is common for the VFxxx Controller F-Series and R-Series. However that some functions are only available on the F-series parts and others only on R-series parts. None /docs/en/reference-manual/VFXXXRM.pdf English documents 49998239 None 500633505221135046 2025-03-08 N /docs/en/reference-manual/VFXXXRM.pdf VFxxx Controller Reference Manual /docs/en/reference-manual/VFXXXRM.pdf documents 500633505221135046 Reference Manual N en None Y pdf 0 N N VFxxx Controller Reference Manual 50.0 MB VFXXXRM N 1475814515746722530753 /secured/assets/documents/en/reference-manual/VFXXXSRM.pdf 2016-10-31 1371671654804715930870 PSP 4 Jun 6, 2013 Reference Manual This document describes VFxxx security features and modules. This only includes the&#13;&#10;security features and associated details for VFxxx. For any other details related to VFxxx refer VFxxx Reference Manual. For additional information about VFxxx, see the VFxxx Reference Manual (VFXXXRM).VFxxx incorporates a range of security features which can be used individually or in&#13;&#10;concert to underpin the platform security architecture. Most of the VFxxx Moderated Software Licensing For Download /secured/assets/documents/en/reference-manual/VFXXXSRM.pdf English documents 11226132 1371830381085697505521 500633505221135046 2023-05-29 Y /webapp/sps/download/mod_download.jsp?colCode=VFXXXSRM&appType=moderated VFxxx Security Reference Manual /secured/assets/documents/en/reference-manual/VFXXXSRM.pdf documents 500633505221135046 Reference Manual N en Extended Y pdf 1 Y N VFxxx Security Reference Manual 11.2 MB VFXXXSRM N 1371671654804715930870 Technical Notes 1 /docs/en/engineering-bulletin/EB808.pdf 2016-10-31 1414079841632722917056 PSP 16 Oct 23, 2014 Technical Notes EB808: This bulletin contains performance measurement data of the Asynchronous Sample Rate Converter (ASRC). The ASRC is used in several NXP products including DSP, i.MX, and VFxxx products as a part of the audio subsystem. None /docs/en/engineering-bulletin/EB808.pdf English documents 2125044 None 389245547230346745 2022-12-07 N /docs/en/engineering-bulletin/EB808.pdf VFxxx ASRC Performance: Audio Analyzer Measurements - EB808 /docs/en/engineering-bulletin/EB808.pdf documents 389245547230346745 Technical Notes N en None Y pdf 0 N N VFxxx ASRC Performance: Audio Analyzer Measurements - EB808 2.1 MB EB808 N 1414079841632722917056 User Guide 4 /docs/en/user-guide/VFXXXHDUG.pdf 2016-10-31 1415817969986714383187 PSP 12 May 14, 2015 User Guide The purpose of this document is to help hardware engineers design and test their boards based on the VFxxx series of processors. It provides information on design checklists and&#13;&#10;board layout recommendations to ensure first-pass success and pave ways to avoid board bring-up problems. It also provides information on board-level testing and simulation such as properly configuring the JTAG tools, using BSDL for board-level testing, using the IBIS model for electrical integrity simulation, and more. None /docs/en/user-guide/VFXXXHDUG.pdf English documents 2432170 None 132339537837198660 2023-06-19 N /docs/en/user-guide/VFXXXHDUG.pdf Hardware Development Guide for VFxxx Family of MCUs /docs/en/user-guide/VFXXXHDUG.pdf documents 132339537837198660 User Guide N en None Y pdf 1 N N Hardware Development Guide for VFxxx Family of MCUs 2.4 MB VFXXXHDUG N 1415817969986714383187 /docs/en/user-guide/VFXXX-CDB-QSG.pdf 2016-10-31 1431444966758692556461 PSP 13 Apr 20, 2015 User Guide Automotive Dashboard system with cluster and infotainment screens None /docs/en/user-guide/VFXXX-CDB-QSG.pdf English documents 1401419 None 132339537837198660 2023-06-19 N /docs/en/user-guide/VFXXX-CDB-QSG.pdf VFxxx Car Dashboard Quick Start Guide /docs/en/user-guide/VFXXX-CDB-QSG.pdf documents 132339537837198660 User Guide N en None Y pdf 1.0 N N VFxxx Car Dashboard Quick Start Guide 1.4 MB VFXXX-CDB-QSG N 1431444966758692556461 /docs/en/user-guide/EVBVF522R3UG.pdf 2016-10-31 1416347471909721901579 PSP 14 Nov 18, 2014 User Guide This user&#8217;s guide details the setup and configuration of the NXP Automotive Evaluation Board. The EVB is intended to &#13;&#10;provide a mechanism for easy customer evaluation of the heterogeneous dual-core VFxxx family, and to facilitate hardware and software development.&#13;&#10; None /docs/en/user-guide/EVBVF522R3UG.pdf English documents 2778610 None 132339537837198660 2023-06-19 N /docs/en/user-guide/EVBVF522R3UG.pdf EVB-VF522R3 Platform User’s Guide /docs/en/user-guide/EVBVF522R3UG.pdf documents 132339537837198660 User Guide N en None Y pdf 0 N N EVB-VF522R3 Platform User’s Guide 2.8 MB EVBVF522R3UG N 1416347471909721901579 /docs/en/user-guide/TWRVF65GS10UG.pdf 2016-10-31 1409242699366726207682 PSP 15 Aug 28, 2014 User Guide The TWR-VF65GS10 Tower<sup>&#174;</sup> Controller Module is&#13;&#10;compatible with the Tower System and features the heterogeneous dual-core VFxxx VF6xx. None /docs/en/user-guide/TWRVF65GS10UG.pdf English documents 1473248 None 132339537837198660 2023-06-18 N /docs/en/user-guide/TWRVF65GS10UG.pdf TWR-VF65GS10 Tower Module User's Guide /docs/en/user-guide/TWRVF65GS10UG.pdf documents 132339537837198660 User Guide N en None Y pdf 1.2 N N TWR-VF65GS10 Tower Module User's Guide 1.5 MB TWRVF65GS10UG N 1409242699366726207682 true Y Products
