VFxxx Controller Solutions Tower System Module

TWR-VF65GS10 Active

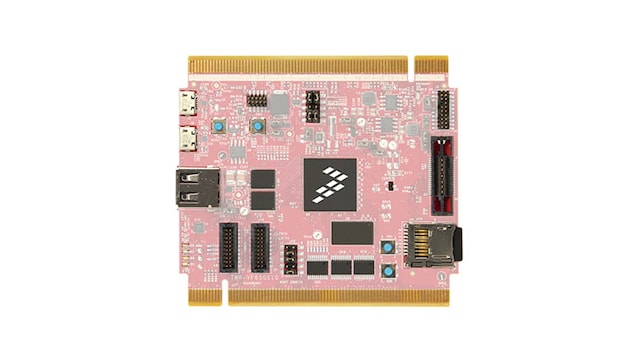

Roll over image to zoom in

Offered as a combination of hardware and software, the TWR-VF65GS10-DS5 Tower® System development kit brings the powerful Arm® Studio 5 toolchain to VFxxx devices and the Tower System. Arm DS-5 accelerates software development by providing an easy to use, robust, well integrated, and professionally maintained toolchain with compiler, debugger, analyzer and more.

Looking for other evaluation alternatives? Check out the TWR-VF65GS10 controller module and kits that feature Arm DS-5 Starter Kit for VFxxx Controller Tower System modules/kits.

Product Details

Supported Devices

Processors and Microcontrollers

VFxxx F Series

  • VF3xx: Arm® Cortex®-A5-Based Microprocessors with 1.5MB SRAM, LCD, Security, 2x Ethernet and L2 Switch
  • VF5xx: Arm® Cortex®-A5-Based Microprocessors with 1.5MB SRAM, LCD, Security, 2x Ethernet and L2 Switch
  • VF6xx: Arm® Cortex®-A5 + Cortex-M4 MPUs, 1.5 MB SRAM, LCD, Security, Ethernet, L2 Switch

Features

Processor

  • VFxxx VF61NS151CMK50 processor (dual-core Arm® Cortex®-A5 at 500 MHz + Cortex-M4 at 167 MHz, 1.0 MB of SRAM, 512 kB of L2 cache, dual Ethernet, dual USB, advanced security)

Memory

  • 1 Gb x 16 (128 MB) DDR3 in 96 FBGA package (Samsung)
  • 2 Gb x 16 (256 MB) NAND flash (Micron)
  • Two 128 Mb (16 MB) quad I/O serial flash (Expansion)

Connectivity

  • Dual USB with on-chip PHY
  • Micro SD card slot

Power Management

  • Independent battery-operated power supply for real-time clock and tamper detection module

Debug

  • Kinetis® K20DX128VFM5-based OpenSDA circuit

Sensors

  • MMA8451Q 3-axis digital accelerometer

Display

  • Interfaces to TWR-LCD-RGB board

User Components

  • Four user-controlled status LEDs
  • Two mechanical push buttons for user input and one for reset
  • Potentiometer

More

Buy Options

TWR-VF65GS10-KIT-Image

Click to expand

  • For a quantity of 1
Order from distributors
TWR-VF65GS10-Image

Click to expand

  • TWR-VF65GS10
    Active

  • Tower System, VFxxx MCU Module, VF65GS10.

  • For a quantity of 1
Order from distributors
TWR-VF65GS10-PRO-Image

Click to expand

  • For a quantity of 1
Order from distributors
