NFC Cortex®-M0 All-in-One Microcontroller with Optional Contact Interface for Access Control

PN7462 Active

Roll over image to zoom in

Please check the new online NFC Antenna Tool for tag and reader devices.

The PN7462 family consists of 32-bit Arm® Cortex®-M0-based NFC microcontrollers offering high performance and low power consumption. It has a simple instruction set and memory addressing along with a reduced code size compared to existing architectures. PN7462 family offers an all-in-one-solution, with features such as NFC, supporting all NFC Forum modes, microcontroller, optional contact smart card reader, and software in a single chip. It operates at CPU frequencies of up to 20 MHz.

See the main differences between our products in the table below.

Block Diagram

PN7462 Family Sample Application

PN7462 Family Sample Application
Get diagram PDF

Features

Integrated contact interface frontend

  • Class A, B, and C cards can work on 1.8 V, 3 V, and 5 V supply
  • Specific ISO UART, variable baud rate through frequency or division ratio programming, error management at character level for T = 0, and extra guard time register
  • DC-to-DC converter for class A support starting at 3 V, and class B support starting at 2.7 V
  • Thermal and short-circuit protection on contact cards
  • Automatic activation and deactivation sequence, initiated by software or by hardware in case of short-circuiting, card removal, overheating, and VDD or VDD drop-out
  • Enhanced ESD protection (< 12 kV)
  • ISO/IEC 7816 compliant
  • Compliance with EMV contact protocol specification
  • Clock generation up to 13.56 MHz
  • Synchronous card support
  • Possibility to extend the number of contact interfaces, with the addition of slot extenders such as TDA8026

Integrated ISO/IEC 7816-3&4 UART interface

    The PN7462 family offers the possibility to extend the number of contact interfaces available. It uses an I/O auxiliary interface to connect a slot extension (TDA8035 - 1 slot, TDA8020 - 2 slots, and TDA8026 - 5 slots)

  • Class A (5 V), class B (3 V), and class C (1.8 V) smart card supply
  • Protection of smart card
  • Three protected half-duplex bidirectional buffered I/O lines (C4, C7, and C8)
  • Compliant with ISO/IEC 7816 and EMVCo standards

Integrated contactless interface frontend

  • High RF output power frontend IC for transfer speed up to 848 kbit/s
  • NFC IP1 and NFC IP2 support
  • Full NFC Forum tag support (type 1, type 2, type 3, type 4A, type 4B and type 5)
  • P2P active and passive, target and initiator
  • Card emulation ISO14443 type A
  • ISO/IEC 14443 type A and type B
  • MIFARE products using Crypto1
  • ISO/IEC 15693, and ISO/IEC 18000-3 mode 3
  • Low-power card detection
  • Dynamic Power Control (DPC)
  • Adaptive Wave Control (AWC)
  • Adaptive Range Control (ARC)
  • Compliance with EMV contactless protocol specification

Cortex-M0 microcontroller

  • Processor core
    • Arm® Cortex®: 32-bit M0 processor
    • Built-in Nested Vectored Interrupt Controller (NVIC)
    • Non-maskable interrupt
    • 24-bit system tick timer
    • Running frequency of up to 20 MHz
    • Clock management to enable low power consumption
  • Memory
    • Flash: 160 kB / 80 kB
    • SRAM: 12 kB
    • EEPROM: 4 kB
    • 40 kB boot ROM included, including USB mass storage primary bootloader for code download
  • Debug option
    • Serial Wire Debug (SWD) interface
  • Peripherals
    • Host interface:
    • USB 2.0 full speed with USB 3.0 hub connection capability
    • HSUART for serial communication, supporting standards speeds from 9600 bauds to 115200 bauds, and faster speeds up to 1.288 Mbit/s
    • SPI with half-duplex and full duplex capability with speeds up to 7 Mbit/s
    • I2C supporting standard mode, fast mode and high-speed mode with multiple address support
    • Controller interface:
    • SPI with half-duplex capability from 1 Mbit/s to 6.78 Mbit/s
    • I2C supporting standard mode, fast mode, fast mode plus and clock stretching
  • Up to 21 General-Purpose I/O (GPIO) with configurable pull-up/pull-down resistors
  • GPIO1 to GPIO12 can be used as edge and level sensitive interrupt sources
  • Power
    • Two reduced power modes: standby mode and hard power-down mode
    • Supports suspend mode for the USB host interface
    • Processor wake-up from hard power-down mode, standby mode, suspend mode via host interface, GPIOs, RF field detection
    • Integrated PMU to adjust internal regulators automatically, to minimize the power consumption during all possible power modes
    • Power-on reset
    • RF supply: external, or using an integrated LDO (TX LDO, configurable with 3 V, 3.3 V, 3.6 V, 4.5 V, and 4.75 V)
    • Pad voltage supply: external 3.3 V or 1.8 V, or using an integrated LDO (3.3 V supply)
  • Timers
    • Four general-purpose timers
    • Programmable Watchdog Timer (WDT)
  • CRC coprocessor
  • Random number generator
  • Clocks
    • Crystal oscillator at 27.12 MHz
    • Dedicated PLL at 48 MHz for the USB
    • Integrated HFO 20 MHz and LFO 365 kHz
  • General

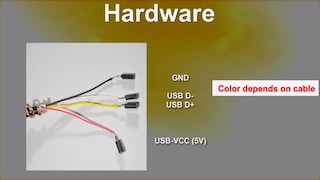

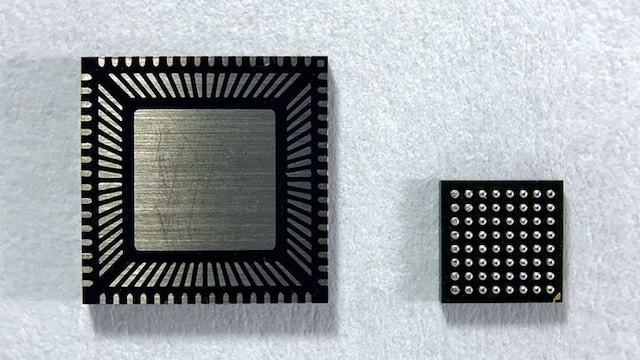

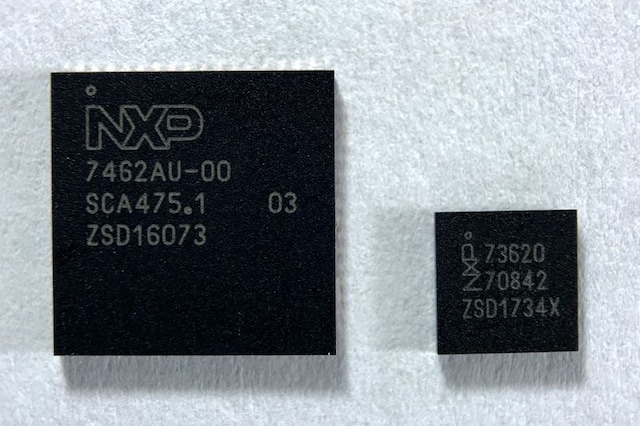

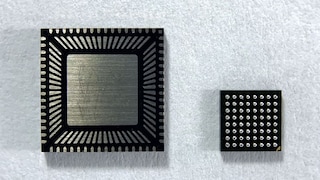

    • HVQFN64 package
    • VFBGA64 package
    • Temperature range: -40 °C to +85 °C

Other Features

More

Comparison Table

PN7462 Family PN7412AU PN7462AU PN7362AU PN7360AU
Item reference PN7412AUHN PN7462AUHN PN7462AUEV PN7362AUHN PN7362AUEV PN7360AUHN PN7360AUEV
Package type HVQFN64 HVQFN64 VFBGA64 HVQFN64 VFBGA64 HVQFN64 VFBGA64
Contactless Interface No NFC Forum Compliant
Available Flash Memory 160 kB 80kB
General Purposes I/O 12 up-to 21 14 up-to 21
Contact Interface Class A, B, C No
ISO/IEC 7816- &: 4 UART Yes No

Buy/Parametrics

7 results

Include 0 NRND

Part

Show description

Order

CAD Model

Status

Application Segment

Read distance [TYP] (mm)

Free Programmable CPU

Features

Contactless Identification Standard

Core Type

Host Interface

Controller Interface

Host interface protocol

Supply Voltage [Min to Max] (V)

RF driver supply voltage [min-max] (V)

RF driver current [max](mA)

Max output power (W)

User Non volatile memory size [kB]

RAM (kB)

Ambient Operating Temperature (Min to Max) (℃)

Package Dimensions (LxWxZ (mm))

Package Type

Package Termination Count

PN7360AUEV
Data Sheet

Active

Gaming, Home banking, Industrial, NFC applications, Physical access control, Smart City

160

Arm Cortex-M0

NFC reader/writer, P2P, card emulation

FeliCa, ISO/IEC 14443 Type A, ISO/IEC 14443 Type B, ISO/IEC 15693, ISO/IEC 18092

Arm Cortex-M0

I2C

ISO7816, I²C, SPI, UART

register level command- response

1.65 to 3.6

2.7 - 4.75

180

0.85

—

—

-30 to 85

4.5 x 4.5 x 0.8

VFBGA64

64

PN7360AUHN
Data Sheet

Active

Gaming, Home banking, Industrial, NFC applications, Physical access control, Smart City

160

Arm Cortex-M0

NFC reader/writer, P2P, card emulation

FeliCa, ISO/IEC 14443 Type A, ISO/IEC 14443 Type B, ISO/IEC 15693, ISO/IEC 18092

Arm Cortex-M0

I2C

ISO7816, I²C, SPI, UART

register level command- response

1.65 to 3.6

2.7 - 4.75

180

0.85

180

12

-30 to 85

9 x 9 x 0.85

HVQFN64

64

PN7362AUEV
Data Sheet

Active

Gaming, Home banking, Industrial, NFC applications, Physical access control, Smart City

160

Arm Cortex-M0

NFC reader/writer, P2P, card emulation

FeliCa, ISO/IEC 14443 Type A, ISO/IEC 14443 Type B, ISO/IEC 15693, ISO/IEC 18092

Arm Cortex-M0

I2C, SPI, UART, USB

ISO7816, I²C, SPI, UART

CCID, register level command- response

1.65 to 3.6

2.3 - 5.5

250

1.38

160

12

-30 to 85

4.5 x 4.5 x 0.8

VFBGA64

64

PN7362AUHN
Data Sheet

Replacement part(s): PN7462AUHN

Active

Gaming, Home banking, Industrial, NFC applications, Physical access control, Smart City

160

Arm Cortex-M0

NFC reader/writer, P2P, card emulation

FeliCa, ISO/IEC 14443 Type A, ISO/IEC 14443 Type B, ISO/IEC 15693, ISO/IEC 18092

Arm Cortex-M0

I2C, SPI, UART, USB

ISO7816, I²C, SPI, UART

CCID, register level command- response

1.65 to 3.6

2.3 - 5.5

250

1.38

160

12

-40 to 85

9 x 9 x 0.85

HVQFN64

64

PN7412AUHN
Data Sheet

Active

Gaming, Home banking, Industrial, NFC applications, Physical access control, Smart City

160

Arm Cortex-M0

NFC reader/writer, P2P, card emulation

—

Arm Cortex-M0

I2C, SPI, UART, USB

ISO7816, I²C, SPI, UART

CCID, register level command- response

1.65 to 3.6

2.3 - 5.5

250

1.38

160

12

-40 to 85

9 x 9 x 0.85

HVQFN64

64

PN7462AUEV
Data Sheet

Active

Gaming, Home banking, Industrial, NFC applications, Physical access control, Smart City

160

Arm Cortex-M0

NFC reader/writer, P2P, card emulation

FeliCa, ISO/IEC 14443 Type A, ISO/IEC 14443 Type B, ISO/IEC 15693, ISO/IEC 18000-3M3, ISO/IEC 18092

Arm Cortex-M0

I2C, SPI, UART, USB

ISO7816, I²C, SPI, UART

CCID, register level command- response

1.65 to 3.6

2.3 - 5.5

250

1.38

160

12

-40 to 85

4.5 x 4.5 x 0.8

VFBGA64

64

PN7462AUHN
Data Sheet

Active

—

160

Arm Cortex-M0

NFC reader/writer, P2P, card emulation

ISO/IEC 14443 Type A, ISO/IEC 14443 Type B, ISO/IEC 15693, ISO/IEC 18092

Arm Cortex-M0

I2C, SPI, UART, USB

ISO7816, I²C, SPI, UART

CCID, register level command- response

1.65 to 3.6

2.3 - 5.5

250

1.38

160

12

—

9 x 9 x 0.85

HVQFN64

64
