OM27462CDKP
Active -
NFC Controller development kit.
NFC Controller development kit

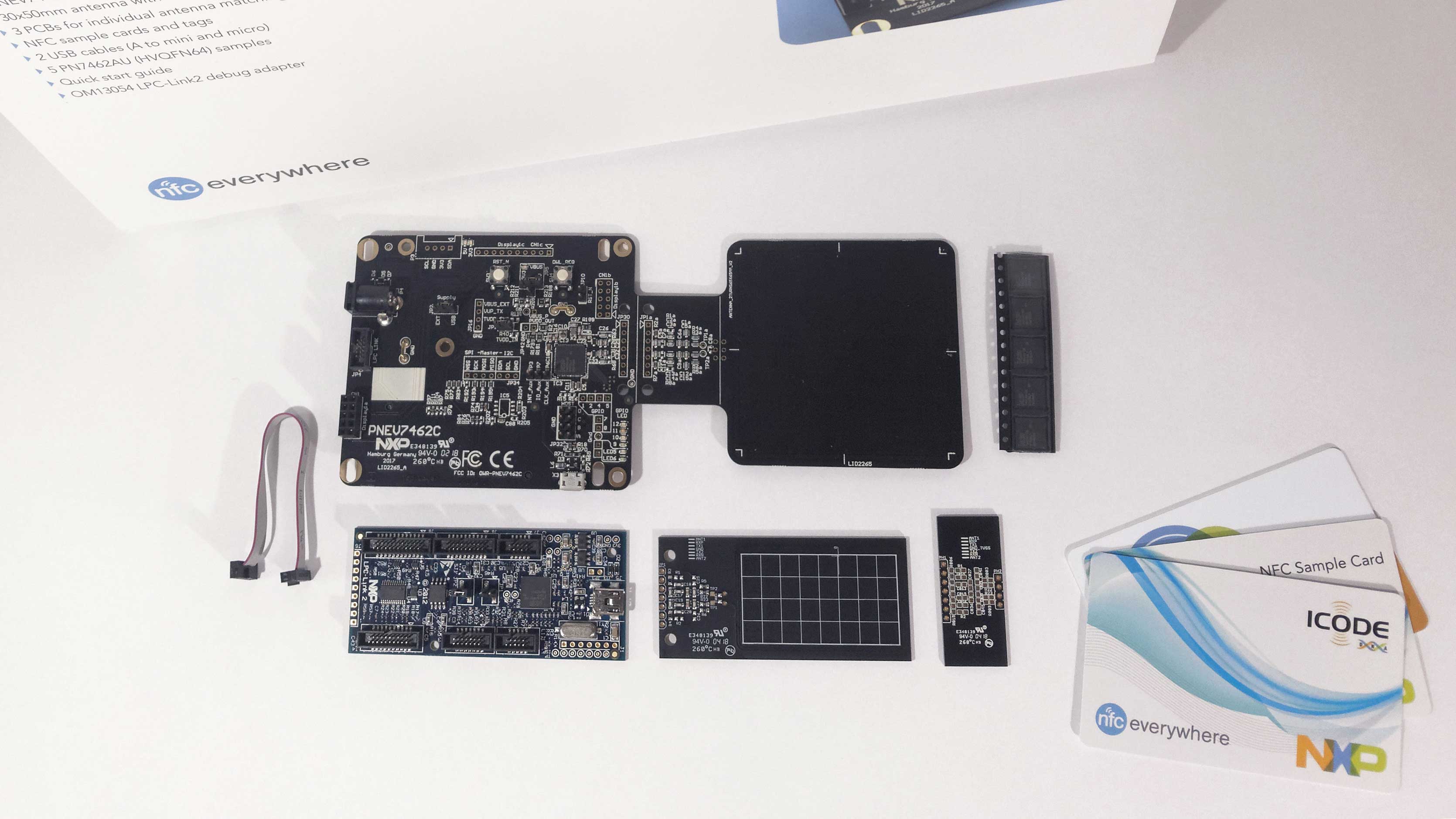

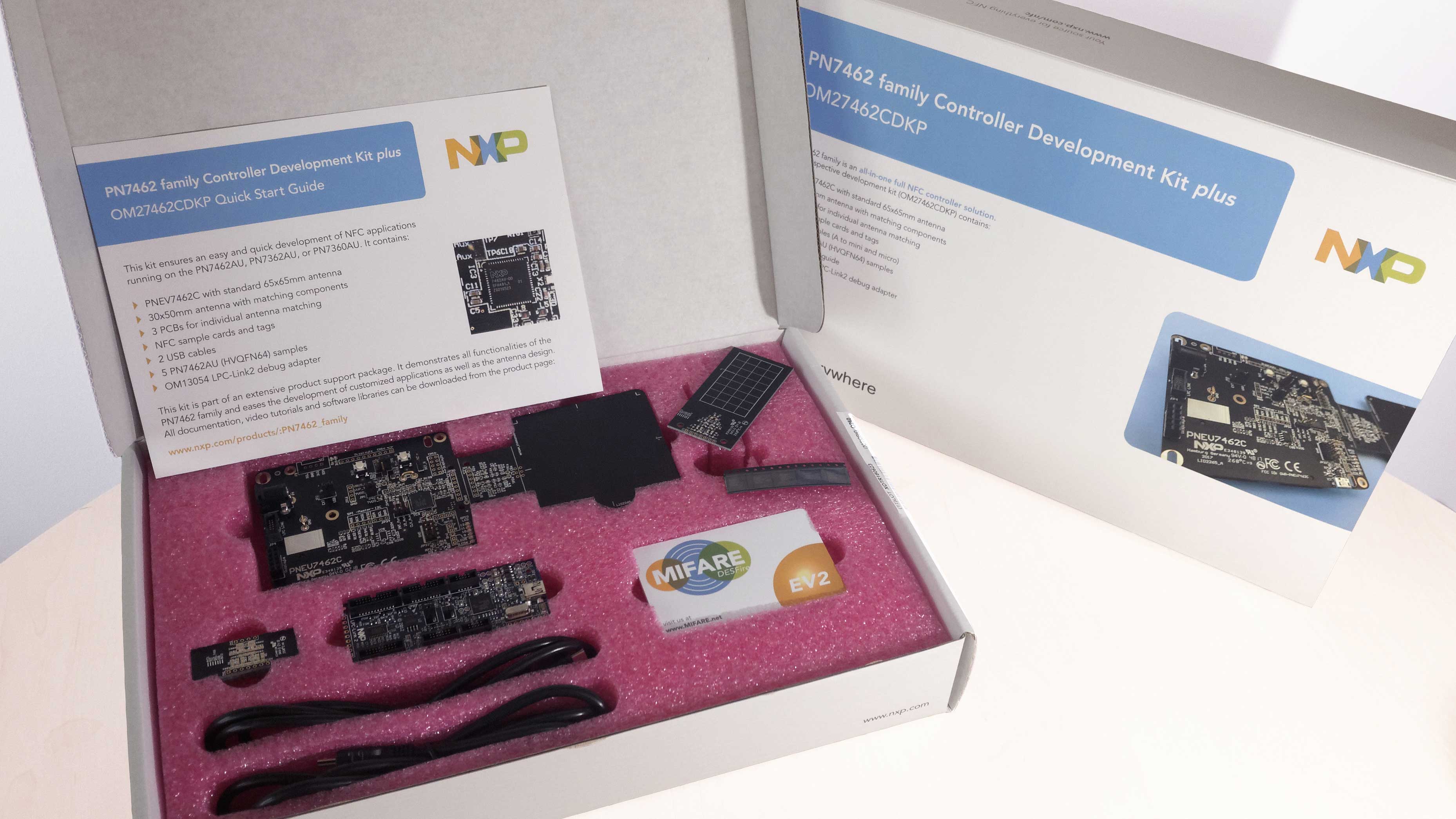

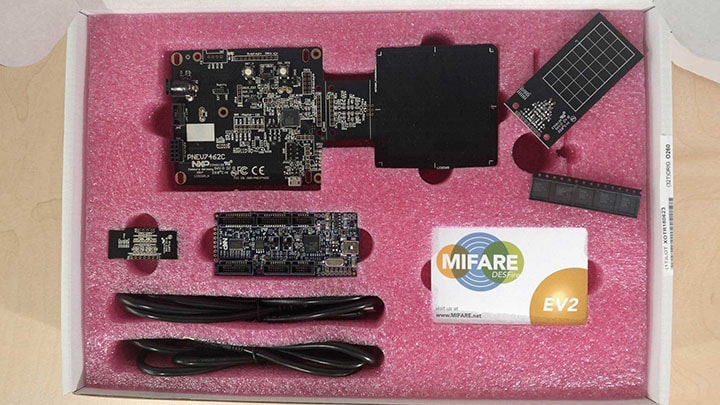

The OM27462CDKP is a flexible and easy to use controller development kit for the PN7462 family. It contains a PNEV7462C board, fully supported by the NFC Cockpit and the NFC Reader Library, with a 65x65mm² antenna optimized for EMVCo applications and a 30x50 mm² antenna optimized for Access Management applications. The kit comes with a multitude of application examples in source code to kickstart software development.
Product Details
Features
Connectivity
- OM13054 LPC-Link2 debug adapter included
- Easy antenna design with NFC Cockpit software
- Two different antennas (65x65 mm² and 30x50 mm²) with matching components
- 3 small antenna matching PCBs for implementation of custom antenna matching circuit
Support
- Easy application development with full NFC Forum and EMV-compliant software libraries
- 5 PN7462AU samples in HVQFN64 package
Buy Options
-
PNEV7462C
Active -
NFC Controller development board.
Documentation
Quick reference to our documentation types.
1 documents
-
Reliability and Quality Information
Radio Equipment Declaration of Conformity for NFC PN7462 Controller Reference Evaluation Board
Design Resources
Design Files
Quick reference to our
design files types.
3 design files
-
Printed Circuit Boards and Schematics
PNEV7462C Layout
-
Printed Circuit Boards and Schematics
PNEV7462C Schematic
-
Design Files - miscellaneous
PNEV7462C Design files
Software
Quick reference to our software types.
3 software files
-
Configuration Tools
NFC Cockpit Configuration Tool for NFC ICs
-
BSPs and Device Drivers
PN7462AU FW and SW Examples Full Version - v06.10.00
Note: For better experience, software downloads are recommended on desktop.
Training
2 trainings
